Description
System Architecture & Operational Principle
The Automation Direct EA9-T6CL is a 6-inch color TFT LCD touch screen HMI panel belonging to the C-more EA9 series, designed for Level 2 (Control) or Level 3 (Operations) of the Purdue Model in industrial automation systems. It acts as the central interface between human operators and lower-level control devices (e.g., PLCs, motor drives), bridging the gap between manual input and automated process execution.
Upstream Communication
Receives command signals and data from external control systems (e.g., Allen-Bradley PLCs, Siemens S7-1200) via:
-
Ethernet: 10/100 Mbps port supporting Modbus TCP/IP, EtherNet/IP, or OPC UA protocols for high-speed data exchange with SCADA or ERP systems.
-
Serial: 3x RS-232/422/485 ports for legacy device integration (e.g., older PLCs, barcode scanners) using Modbus RTU or ASCII protocols.
These signals are processed by the HMI’s internal microprocessor to update the graphical interface (e.g., displaying process variables like temperature, pressure, or motor speed).
Downstream Communication
Transmits operator inputs (e.g., setpoint adjustments, start/stop commands) back to the control system using the same protocols. The HMI also sends real-time data (e.g., alarm statuses, production counts) to external systems for logging or analysis.
Operational Advantages
-
Compact Form Factor: The 6″ display is ideal for space-constrained applications (e.g., small machine control cabinets), while still providing a clear interface for operators.
-
Multiple Communication Options: Support for Ethernet and serial protocols ensures compatibility with a wide range of control systems, making it suitable for both new installations and legacy upgrades.
-
Rugged Design: The panel is built to withstand industrial environments, with a NEMA 4/4X (IP65) rating when mounted correctly, protecting against dust, moisture, and accidental contact.

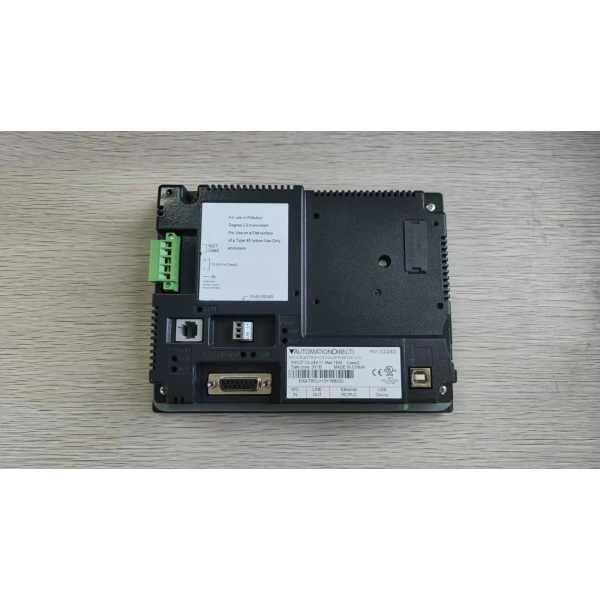

Automation Direct EA9-T6CL
Core Technical Specifications
|
Attribute
|
Specification
|
|---|---|
|
Display
|
6″ Color TFT LCD; 320×240 pixels (QVGA); 64K colors; LED backlight
|
|
Touch Screen
|
Analog resistive (1024×1024 resolution); unlimited touch areas
|
|
Power Supply
|
12-24V DC (typical 24V DC); maximum power consumption: 18W (Class 2)
|
|
Communication Ports
|
3x Serial (RS-232/422/485); 1x Ethernet (10/100 Mbps); 2x USB (Type A/B)
|
|
Memory
|
10 MByte project memory; 2x memory card slots (SD/CompactFlash)
|
|
Operating Temperature
|
0°C to 50°C (32°F to 122°F)
|
|
Storage Temperature
|
-20°C to 60°C (-4°F to 140°F)
|
|
Dimensions
|
15.0″ (W) x 11.8″ (H) x 2.5″ (D) (approximate)
|
|
Weight
|
10.6 lbs (4.8 kg)
|
|
Certifications
|
UL, cUL, CE, RoHS
|
Customer Value & Operational Benefits
Improved Operator Efficiency
The EA9-T6CL’s compact 6″ display provides a clear, focused interface for operators, reducing clutter and improving situational awareness. The intuitive touch screen allows for quick adjustments to process parameters (e.g., setpoints, recipes), minimizing the time spent on manual tasks and improving response times to process deviations.
Seamless Integration with Existing Systems
With support for multiple communication protocols (Ethernet, serial), the HMI can be easily integrated into existing automation systems without requiring costly upgrades. For example, a small manufacturing plant using an Allen-Bradley MicroLogix PLC can connect the EA9-T6CL via Ethernet (Modbus TCP/IP) to monitor and control the production line.
Reduced Downtime with Rugged Design
The NEMA 4/4X (IP65) rating ensures the HMI can withstand harsh industrial environments (e.g., dust from conveyor systems, moisture from washdown areas), reducing the risk of damage and downtime. This is particularly important for 24/7 operations where even a short outage can result in significant production losses.
Cost-Effective Solution
Compared to larger HMI panels, the EA9-T6CL offers a cost-effective solution for small to medium-sized applications. Its modular design (e.g., memory card slots for easy program updates) reduces long-term maintenance costs, making it a budget-friendly choice for businesses looking to upgrade their operator interfaces.
Field Engineer’s Notes (From the Trenches)
When installing the EA9-T6CL, always verify the power supply voltage—the panel requires 12-24V DC, and using a higher voltage (e.g., 120V AC) will damage the internal circuitry. I once saw a site where a contractor accidentally connected the HMI to a 120V AC supply, resulting in a fried power supply and a 4-hour downtime. Use a multimeter to confirm the voltage before plugging in the panel.Another gotcha: ground the panel properly—the NEMA 4/4X rating requires a proper ground connection to protect against electric shock and EMI. I’ve fixed countless “ghost” faults (e.g., random screen freezes) by ensuring the panel’s ground wire is connected to the cabinet’s earth ground.If the touch screen becomes unresponsive, clean it with a dry, lint-free cloth—dust or fingerprints can interfere with the resistive touch layer. If that doesn’t work, recalibrate the screen using the HMI’s built-in utility (accessed via the “Settings” menu). Avoid using chemical cleaners, as they can damage the screen’s protective coating.
Real-World Applications
-
Small Manufacturing: Machine Tool ControlThe EA9-T6CL is used as the operator interface for a CNC machine tool, connected to a Siemens S7-1200 PLC via Ethernet (Modbus TCP/IP). It displays real-time data (e.g., spindle speed, feed rate) and allows operators to adjust cutting parameters or stop the machine in case of a fault. The 6″ display fits perfectly in the machine’s control cabinet, providing a clear view of the process.
-
Food & Beverage: Packaging Line MonitoringIn a food packaging plant, the EA9-T6CL is installed in a packaging line control cabinet to monitor conveyor speed and product counts. It receives data from a photoelectric sensor (via a serial port) and sends commands to a motor drive (via Ethernet) to adjust the conveyor speed. The IP65 rating protects the panel from dust and moisture in the packaging area.

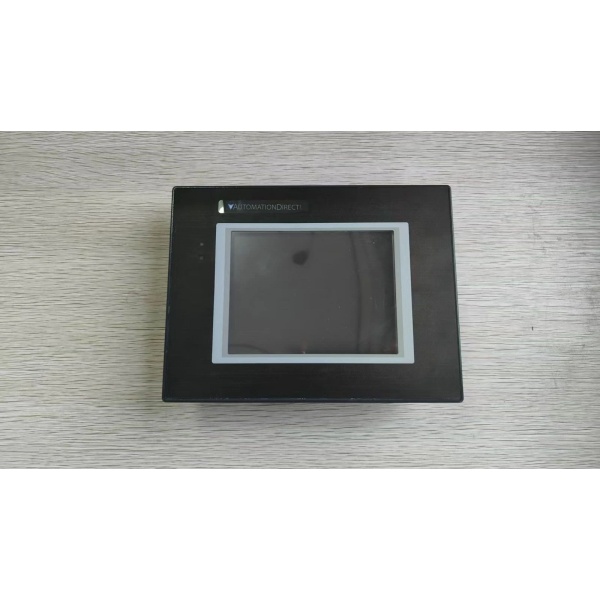

Automation Direct EA9-T6CL
High-Frequency Troubleshooting FAQ
Q: What are the common LED indicators on the EA9-T6CL, and what do they mean?
A: The EA9-T6CL has two LED indicators on the front panel:
-
Power (Green): On when the panel is receiving 12-24V DC power.
-
Communication (Yellow): Blinks when data is being transmitted/received via Ethernet or serial ports. If it stays solid, there’s a communication fault (e.g., no connection to the PLC). Check the Ethernet cable, IP address, or serial port settings.
Q: Can the EA9-T6CL be used with non-Automation Direct PLCs?
A: Yes, the EA9-T6CL supports standard industrial protocols (Modbus TCP/IP, EtherNet/IP, Modbus RTU), making it compatible with most PLCs (e.g., Siemens, Allen-Bradley, Mitsubishi). For example, to connect to a Siemens S7-1200 PLC, use Modbus TCP/IP—configure the HMI as a Modbus client and the PLC as a server.
Q: How do I update the HMI program on the EA9-T6CL?
A: Use the USB port to transfer the updated program file from a PC to the HMI. Connect a USB flash drive (formatted as FAT32) to the panel’s USB Type A port, then use the HMI’s “File Manager” to import the program. The panel will reboot automatically to load the new program.
Q: Why is the EA9-T6CL’s screen blank?
A: Check three things first:
-
Power Supply: Ensure the 12-24V DC power supply is connected and the voltage is within the specified range (use a multimeter to measure).
-
Backlight: The LED backlight may have failed—try shining a flashlight on the screen to see if there’s a faint image. If so, replace the backlight (contact Automation Direct for parts).
-
Display Cable: The internal display cable may be loose—turn off the panel and check the cable connections (refer to the user manual for disassembly instructions).
Commercial Availability & Pricing
Please note: The listed price is not the actual final price. It is for reference only and is subject to appropriate negotiation based on current market conditions, quantity, and availability.
