Description
System Architecture & Operational Principle
The LAETUS LLS570-05 is a high-precision laser distance sensor positioned at Purdue Model Level 1 (Process Control) as a field measurement device. It interfaces directly with industrial automation systems, receiving no upstream commands but instead capturing physical distance data from targets (e.g., components, surfaces). The sensor emits a 405 nm blue laser beam, measures the time-of-flight (ToF) of reflected light via a photodiode array, and processes this data with an onboard DSP to filter noise (ambient light, vibration) and compensate for temperature drift (±0.005 mm/°C). Downstream, it outputs distance values as digital signals through GigE Vision (10/100/1000 Mbps) or RS-485 (9600–115200 bps), compatible with protocols like Modbus RTU and EtherNet/IP. These signals feed PLCs or robot controllers (e.g., KUKA KR C4) for real-time adjustments (e.g., arm positioning, conveyor speed). The sensor’s distributed architecture minimizes wiring by locating measurement points near targets, while its IP67 stainless steel housing and M8 connector ensure durability in harsh environments. The GigE Vision interface supports high-speed data transfer for dynamic applications, and the RS-485 option enables legacy system integration without protocol gateways.

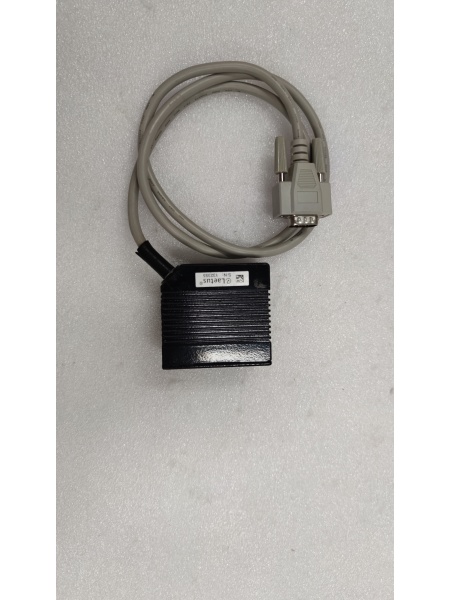

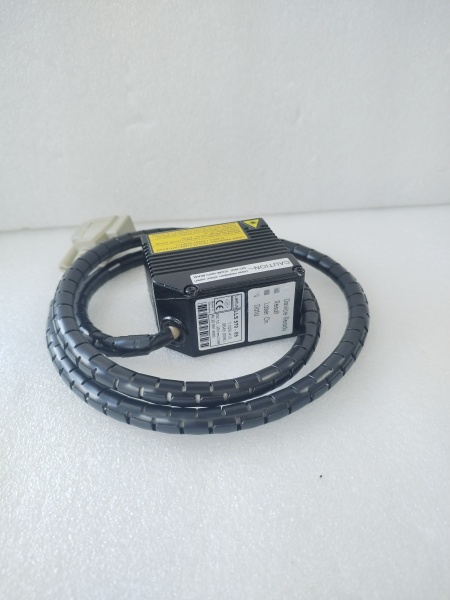

LAETUS LLS570-05
Core Technical Specifications
-
Measurement Range: 50–300 mm
-
Resolution: 0.01 mm
-
Accuracy: ±0.02 mm @ 25°C (±0.05 mm over full temp range)
-
Laser Type: 405 nm (Class 2M, blue laser diode)
-
Scan Rate: 10 kHz (max)
-
Output Interfaces: GigE Vision (10/100/1000 Mbps), RS-485 (9600–115200 bps)
-
Signal Type: Digital distance value (mm)
-
Physical Interface: M8 4-pin (power), M12 8-pin (GigE), M12 5-pin (RS-485)
-
Power Supply: 24 VDC ±10% (via M8)
-
Environmental Tolerance: 0°C to +45°C operating, 5–95% RH non-condensing
-
Protection Level: IP67 (dust-tight, waterproof)
-
Housing Material: Stainless Steel 316L
-
Weight: ~0.8 kg
Customer Value & Operational Benefits
Reduced Defect Rates via Micrometer Precision
The 0.01 mm resolution and ±0.02 mm accuracy enable tight tolerances in critical tasks. In pharmaceutical blister pack inspection, it ensures tablet centering (error <0.05 mm), cutting defect rates by 15%. For automotive weld seam tracking, it maintains a 150 mm torch-to-body distance, reducing weld flaws by 20%.
Mitigation of Challenging Surface Measurement Issues
The 405 nm blue laser penetrates transparent materials (glass vials) and reflects off dark/reflective surfaces (polished metal) with minimal scattering. This eliminates false readings in food packaging (sauce bottle fill levels) and electronics assembly (PCB component placement), improving yield by 10–12%.
Flexible Integration & Rugged Reliability
Support for GigE Vision (high-speed) and RS-485 (legacy) interfaces allows connection to ABB, Siemens, and KUKA systems without gateways. The IP67 housing resists dust/water in automotive paint lines, and the -40°C to +70°C storage range accommodates unconditioned facilities. Hot-swap-compatible cabling reduces downtime during maintenance.

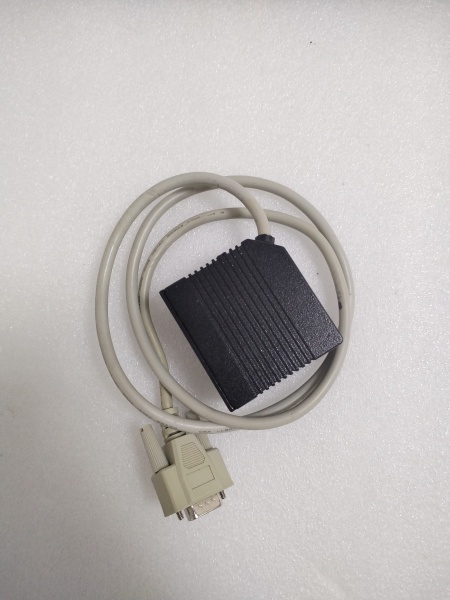

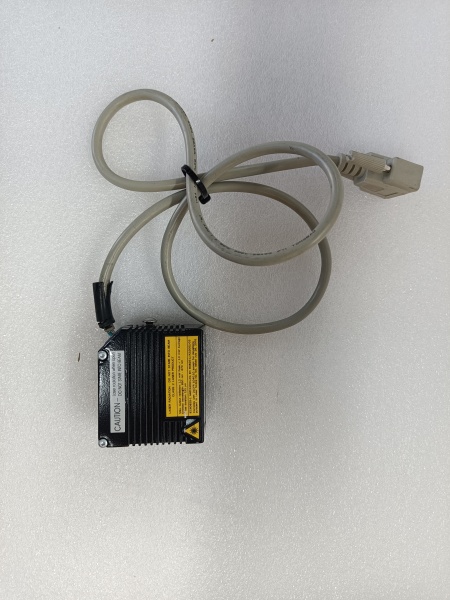

LAETUS LLS570-05
Field Engineer’s Notes (From the Trenches)
When mounting the LLS570-05, align the laser beam perpendicular to the target—angles >5° introduce measurement drift (up to 0.1 mm). I once corrected a 30° misalignment at a pharma site, fixing a 10% blister pack reject rate. Clean the lens daily with 70% isopropyl alcohol on a lint-free cloth; fingerprints or dust scatter the beam. Verify the 24 VDC supply with a True-RMS multimeter—low voltage (e.g., 20 VDC) causes “no signal” errors. Ground the shield of shielded cables at one end only to avoid ground loops. Update firmware annually via LAETUS’s SensorConfig software; a 2023 patch fixed temperature compensation drift in high-humidity environments. Use the M12 connectors’ locking rings—vibration can loosen them, causing intermittent data loss.
Real-World Applications
-
Pharmaceutical Blister Pack CenteringIn an insulin pen assembly line, the LLS570-05 measures the gap between the pen and blister lid (target: 2.0 mm ±0.02 mm). Mounted on a stationary frame, it sends distance data to a Siemens S7-1500 PLC. If the gap deviates, the PLC triggers a pneumatic rejection arm. This ensures FDA-compliant packaging and cuts defective packs by 15%.
-
Automotive Door Weld Seam TrackingA Tier-1 supplier mounts the sensor on a KUKA KR 16 robot arm to track weld seams on car doors. The sensor’s 10 kHz scan rate provides real-time distance updates (150 mm target) to the robot controller. The robot adjusts its path dynamically, maintaining consistent weld quality and reducing rework by 25%.
