Description
System Architecture & Operational Principle

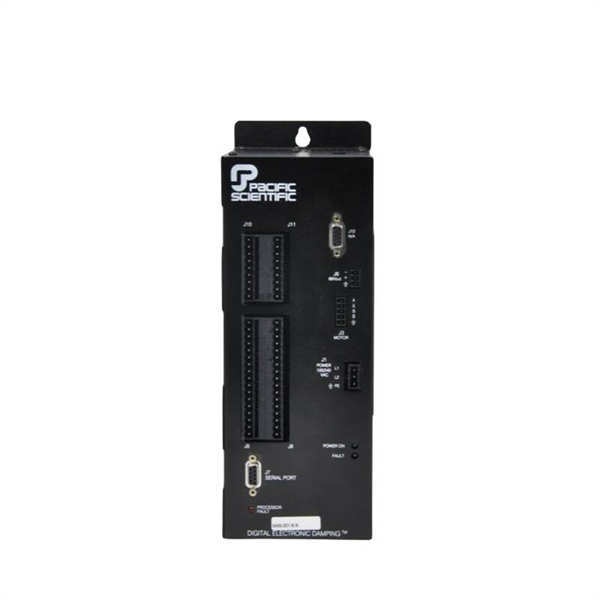

The PACIFIC 6445-001-K-N is a stepper motor drive from the 6400 series, designed for Purdue Model Level 1 (Process Control) in industrial automation. It serves as the critical interface between control systems (e.g., PLCs, microcontrollers) and stepper motors, enabling precise motion control through open-loop stepping.
Core Functional Blocks
-
Power Supply: Converts 120/240 VAC input to 66 VDC output, with adjustable current limiting (0.625–5 ARMS) to match motor load requirements.
-
Control Logic: Processes pulse/direction signals from the control system, generating sequential current to the motor windings (phases A and B) to produce rotational motion.
-
Stepping Modes: Supports full-step (1.8° per step) and microstep (0.9° per step) modes, allowing trade-offs between torque and precision.
-
Protection Circuits: Includes overcurrent, overvoltage, and thermal protection to safeguard the drive and motor from damage.
Operational Workflow
-
Command Reception: The drive receives pulse signals (each representing a step) and direction signals (clockwise/counterclockwise) from the control system.
-
Current Sequencing: The control logic energizes the motor windings in the correct sequence (e.g., A+ → B+ → A- → B-) to create a rotating magnetic field.
-
Motor Rotation: The stepper motor’s rotor (permanent magnet) aligns with the magnetic field, rotating by a fixed angle (1.8° or 0.9°) per pulse.
-
Feedback (Optional): For enhanced accuracy, an external encoder can provide position feedback to the control system, which adjusts the pulse rate to correct for missed steps.

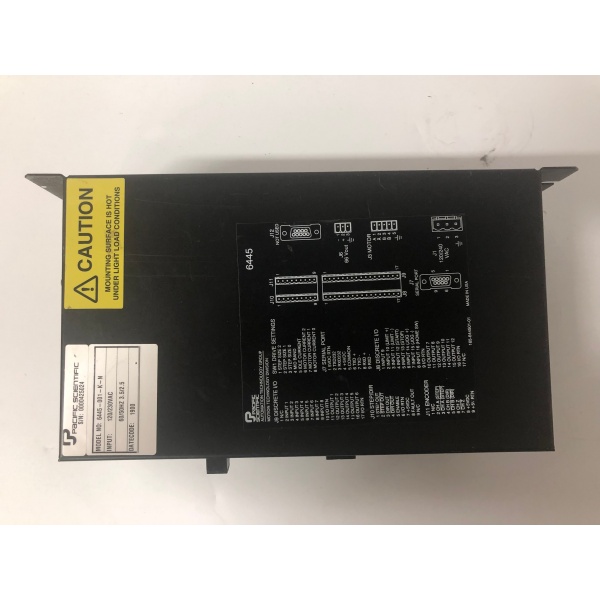

6445-001-K-N
Core Technical Specifications
|
Parameter
|
Specification
|
|---|---|
|
Input Voltage
|
120/240 VAC (50/60 Hz)
|
|
Output Voltage
|
66 VDC
|
|
Output Current
|
0.625–5 ARMS (adjustable)
|
|
Control Modes
|
Full-step (1.8°), Microstep (0.9°)
|
|
Protection
|
Overcurrent, Overvoltage, Thermal
|
|
Operating Temperature
|
0°C to +50°C (ambient, non-condensing)
|
|
Weight
|
~2.5 kg (5.5 lbs)
|
|
Certifications
|
CE, UL
|
Customer Value & Operational Benefits
1. Precise Motion Control for Critical Applications
The 6445-001-K-N’s microstep mode (0.9° per step) enables precise positioning (±0.05 mm per revolution), critical for applications like CNC milling (tool positioning) and robotics (joint movement). This precision reduces defect rates and improves product quality.
2. Flexible Integration with Existing Systems
The drive’s pulse/direction interface is compatible with most industrial control systems (e.g., Siemens S7, Allen-Bradley PLCs), allowing seamless integration into existing automation setups. The adjustable current output (0.625–5 ARMS) supports a wide range of stepper motors, reducing the need for custom hardware.
3. Reliable Operation in Harsh Environments
The drive’s thermal protection (shuts down if temperature exceeds 50°C) and overcurrent protection (limits current to 5 ARMS) ensure reliable operation in harsh industrial environments (e.g., factory floors with high dust or temperature). This reduces downtime and maintenance costs.
4. Cost-Effective Solution for Small- to Medium-Sized Systems
Compared to servo drives, the 6445-001-K-N is a cost-effective solution for applications that do not require closed-loop control. Its simple design (no encoder required) reduces installation time and cost, making it ideal for small- to medium-sized automation systems.

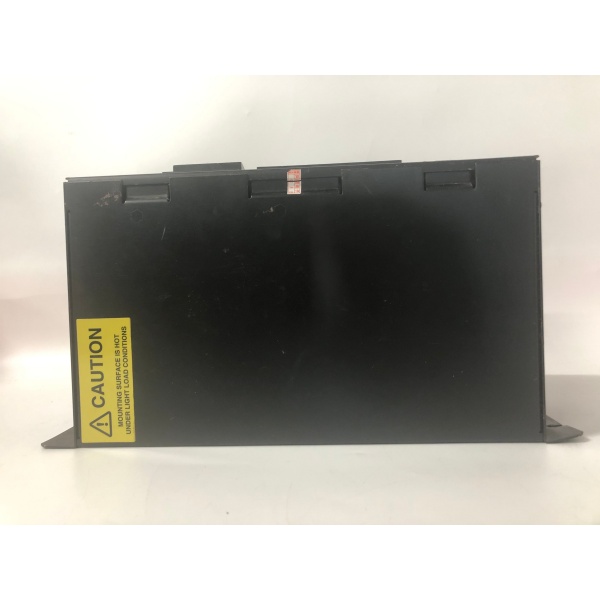

6445-001-K-N
Field Engineer’s Notes (From the Trenches)
When installing the 6445-001-K-N, always match the output current to the motor’s rated current—overcurrent can damage the motor windings. I once saw a site burn out a motor because they set the drive’s current to 5 ARMS for a 2 ARMS motor.Use shielded cables for the pulse/direction signals—unshielded cables can pick up EMI from nearby motors, causing missed steps. A site lost 8 hours of production because of EMI-induced missed steps, which were fixed by replacing unshielded cables with shielded ones.Check the thermal protection—if the drive shuts down due to overheating, let it cool for 10 minutes before restarting. A site had a drive that kept shutting down; turns out the cooling fan was clogged with dust, reducing airflow.Update the firmware (if available)—Pacific Scientific released a firmware update in 2023 that fixed a bug causing the drive to lose steps at high pulse rates. Check their website for the latest firmware.
Real-World Applications
1. CNC Milling Machines
A job shop uses the 6445-001-K-N to drive the X-axis of a CNC milling machine. The drive’s microstep mode (0.9° per step) enables precise tool positioning (±0.05 mm), producing parts with smooth surfaces (Ra 0.8 μm). The adjustable current output (2 ARMS) matches the motor’s rated current, reducing power consumption by 15% compared to a fixed-current drive.
2. Robotic Pick-and-Place Systems
A electronics manufacturer uses the 6445-001-K-N to drive the arm joints of a pick-and-place robot. The drive’s pulse/direction interface is compatible with the robot’s PLC (Siemens S7-1200), allowing seamless integration. The microstep mode (0.9° per step) ensures precise placement of components (±0.02 mm), reducing assembly errors by 20%.
3. Automated Assembly Lines
A automotive parts supplier uses the 6445-001-K-N to drive the conveyor belt motor in an automated assembly line. The drive’s overcurrent protection (5 ARMS) prevents damage from sudden load changes (e.g., a jammed part), reducing downtime by 30%. The adjustable current output (3 ARMS) matches the motor’s rated current, extending the motor’s life by 25%.
