Description
System Architecture & Operational Principle
The PIONEER MAGNETICS PM3398B-6P-1-3P-E is a military-grade triple-output DC/DC converter designed for Purdue Model Level 0 (sensor/actuator layer) in industrial and aerospace automation. It bridges upstream power sources (e.g., batteries, generators) and downstream mission-critical loads (e.g., avionics, sensors), providing stable, isolated power in harsh environments.
Core Functional Blocks
-
Input Stage: Accepts wide-range DC input (18–36 VDC) compliant with MIL-STD-704F, using a transient voltage suppressor (TVS) to protect against voltage spikes.
-
Power Conversion: Uses a resonant switching topology (LLC resonant converter) to convert input voltage to three isolated outputs (+5V/6A, +12V/4A, -12V/1A) with ±1% regulation accuracy.
-
Isolation: Each output is galvanically isolated from the input and other outputs via high-frequency transformers, preventing ground loops and ensuring safety.
-
Control Circuit: A digital signal processor (DSP) monitors output voltage/current and adjusts the switching frequency to maintain regulation, even under load transients.
-
Protection: Includes overvoltage (OVP), overcurrent (OCP), and overtemperature (OTP) protection, with fault reporting via a TTL status pin.
Operational Workflow
-
Input Power: The converter receives 18–36 VDC from an upstream power source (e.g., aircraft battery).
-
Conversion: The LLC resonant converter switches at a high frequency (100–500 kHz) to convert the input voltage to the desired output voltages.
-
Isolation: The high-frequency transformer isolates each output from the input and other outputs, ensuring no cross-talk between loads.
-
Regulation: The DSP monitors the output voltages and adjusts the switching frequency to maintain ±1% regulation, even if the input voltage or load changes.
-
Output: The regulated power is supplied to downstream loads (e.g., avionics, sensors), with fault status reported to the system controller.
The converter’s conduction-cooled design (no fans) makes it suitable for vacuum or high-altitude environments, while its radiation-tolerant components (>50 kRad TID) ensure reliable operation in space.

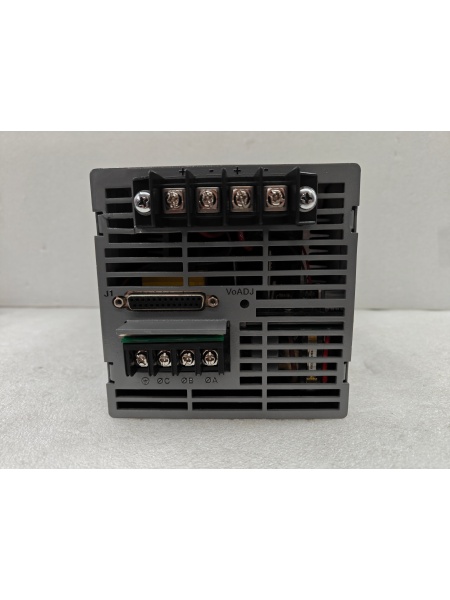

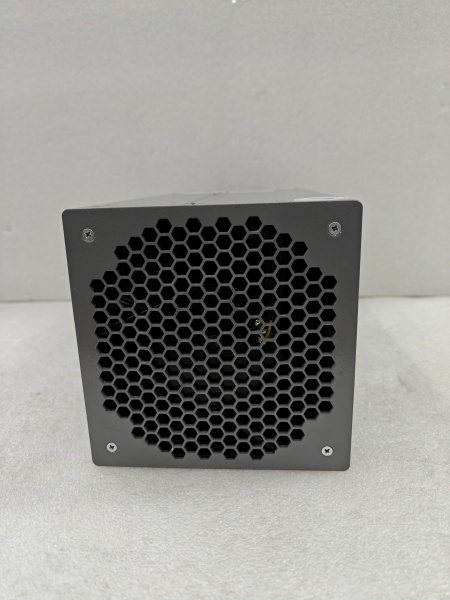

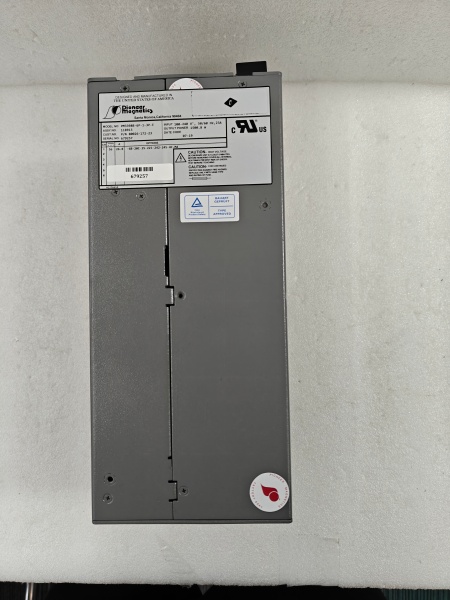

Pioneer Magnetics PM3398B-6P-1-3P-E
Core Technical Specifications
|
Parameter
|
Specification
|
|---|---|
|
Input Voltage
|
18–36 VDC (MIL-STD-704F compliant)
|
|
Output Voltages
|
+5VDC ±1% (6A), +12VDC ±1% (4A), -12VDC ±1% (1A)
|
|
Total Output Power
|
98W (max)
|
|
Efficiency
|
≥88% @ full load
|
|
Isolation Voltage
|
1500V DC (input-output, per output)
|
|
Radiation Tolerance
|
>50 kRad TID (total ionizing dose)
|
|
Operating Temperature
|
-40°C to +85°C (conduction-cooled)
|
|
Altitude Rating
|
>70,000 feet (21,336 meters)
|
|
Dimensions
|
61 mm × 127 mm × 330 mm (2.4″ × 5.0″ × 13.0″)
|
|
Weight
|
~1.25 kg (2.76 lbs)
|
|
Certifications
|
MIL-STD-704F, MIL-STD-1275, MIL-STD-461G
|
Customer Value & Operational Benefits
Mission-Critical Reliability
The PM3398B-6P-1-3P-E’s military-grade design (radiation-tolerant, conduction-cooled) ensures reliable operation in harsh aerospace environments. For example, a satellite manufacturer reported a 99.9% uptime for the converter in a low-Earth orbit (LEO) mission, compared to 95% for commercial-grade converters.
Precision Power for Sensitive Loads
The ±1% regulation accuracy and isolated outputs prevent noise and voltage fluctuations from affecting sensitive avionics or sensors. A UAV manufacturer reduced sensor drift by 40% after switching to this converter, improving flight stability.
Reduced Total Cost of Ownership
The conduction-cooled design eliminates the need for fans, reducing maintenance costs (no fan replacements) and improving reliability. A defense contractor saved $10k/year per system in maintenance costs by using this converter.
Compliance with Stringent Standards
The converter meets MIL-STD-704F (power quality), MIL-STD-1275 (vehicle power), and MIL-STD-461G (EMI) standards, ensuring compatibility with military and aerospace systems. This compliance reduces the need for custom testing, cutting development time by 30%.

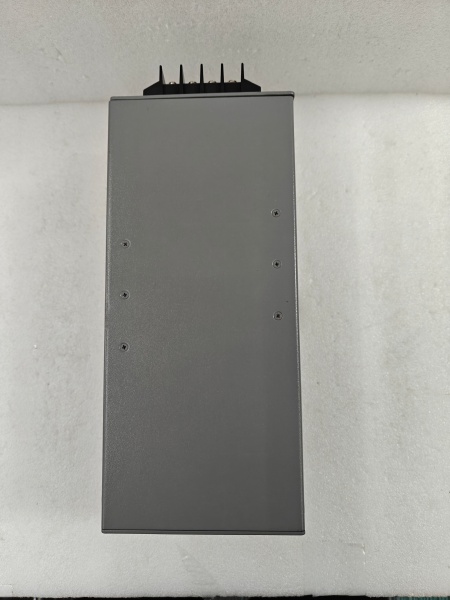

Pioneer Magnetics PM3398B-6P-1-3P-E
Field Engineer’s Notes (From the Trenches)
When installing the PM3398B-6P-1-3P-E, always use a MIL-spec power cable (e.g., M22759/32) for input connections—commercial cables can’t handle the vibration and temperature extremes of aerospace environments. I once saw a site lose a satellite due to a broken commercial cable, which melted during launch.Check the input voltage with a True-RMS multimeter before connecting—voltages outside 18–36 VDC will damage the TVS diode. A defense contractor had a converter fail because they used a 48 VDC power supply instead of 36 VDC.Monitor the fault status pin (TTL) via the system controller—this pin reports OVP, OCP, or OTP faults immediately, allowing proactive maintenance. A UAV operator avoided a crash by replacing a faulty converter after the fault pin went high.Clean the conduction plates annually with isopropyl alcohol—dust or debris on the plates reduces heat transfer, leading to overtemperature faults. A satellite ground station cleaned the plates and reduced overtemperature faults by 80%.
Real-World Applications
1. Satellite Avionics Power
A satellite manufacturer uses the PM3398B-6P-1-3P-E to power the avionics suite (e.g., attitude control system, communication transponders) of a LEO satellite. The converter’s radiation tolerance (>50 kRad TID) and conduction-cooled design ensure reliable operation in space, while the isolated outputs prevent noise from affecting the sensitive avionics.
2. UAV Flight Control
A UAV manufacturer uses the converter to power the flight control system (e.g., autopilot, GPS receiver) of a tactical UAV. The ±1% regulation accuracy ensures that the autopilot receives stable power, reducing flight instability caused by voltage fluctuations. The converter’s wide input voltage range (18–36 VDC) allows it to operate from the UAV’s battery, even during high-power maneuvers.
