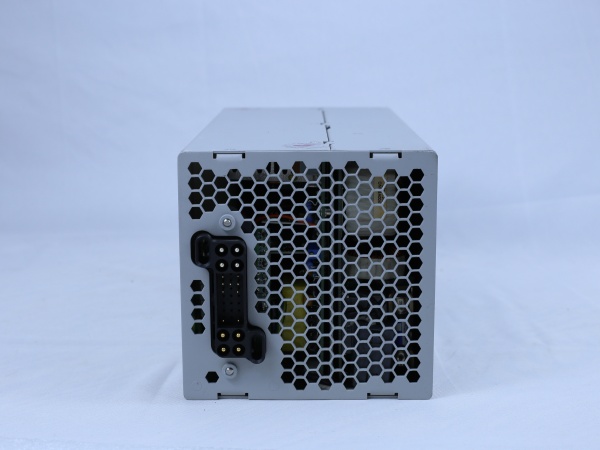

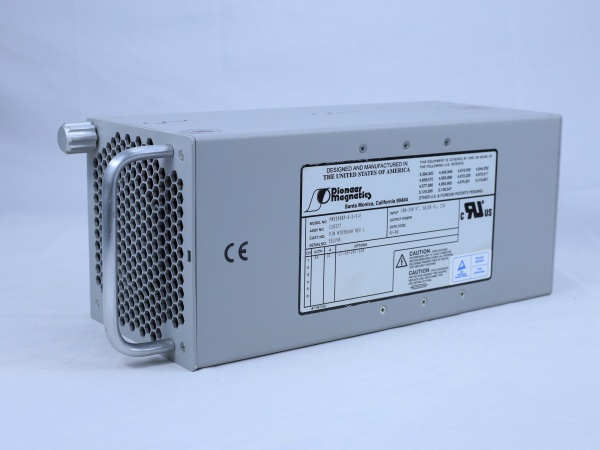

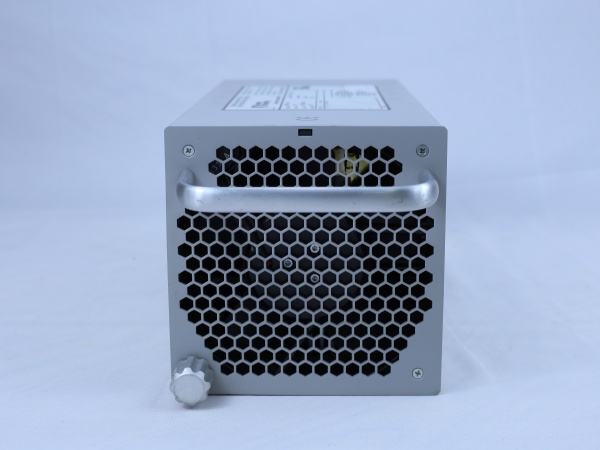

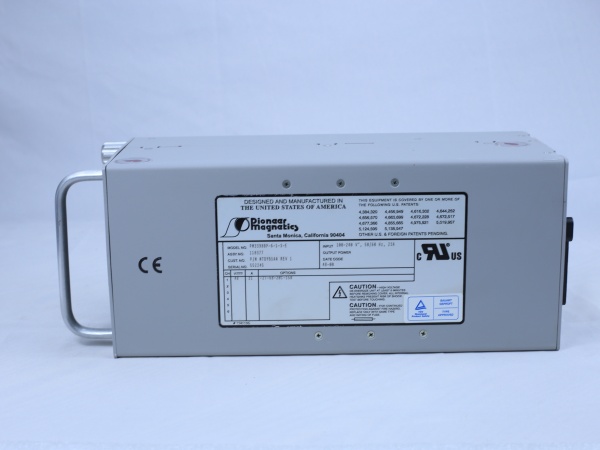

PIONEER MAGNETICS PM3398BP-6-1-3-E | Industrial-Grade Power Supply Module – Specifications & Applications

Description

System Architecture & Operational Principle

Core Functional Blocks

1. Input Stage: Accepts wide-range AC (100–240V AC, 47–440 Hz) or DC (24–48V DC, 18–60V DC) input, compliant with IEC 61000-4-30 Class A standards for power quality. A transient voltage suppressor (TVS) protects against voltage spikes, while an EMI filter reduces electromagnetic interference.
2. Power Conversion: Uses a resonant switching topology​ (LLC resonant converter) to convert input voltage to a stable 56V DC output. The converter operates at a high frequency (100–500 kHz) to minimize size and maximize efficiency.
3. Control Circuit: A digital signal processor (DSP) monitors output voltage/current and adjusts the switching frequency to maintain regulation (±0.05% line, ±0.1% load). The DSP also implements protection algorithms (overcurrent, overvoltage, overtemperature).
4. Output Stage: Provides a single 56V DC output (26.8A max) with low ripple (<10 mVpp) for sensitive loads. The output is protected by a fuse and a reverse-polarity protection diode.
5. Enclosure: A rugged metal enclosure (IP40/IP67) provides dust/water resistance, suitable for industrial environments. The enclosure includes mounting brackets for 19-inch rack or DIN rail installation.

Operational Workflow

1. Input Power: The module receives AC or DC input from an upstream power source (e.g., a 220V AC mains or a 48V DC battery bank).
2. Conversion: The LLC resonant converter switches at a high frequency to convert the input voltage to 56V DC. The DSP adjusts the switching frequency to maintain output regulation, even if the input voltage or load changes.
3. Protection: The control circuit monitors for overcurrent (OCP), overvoltage (OVP), and overtemperature (OTP). If a fault is detected, the module shuts down the output and sends a fault signal to the host system.
4. Output: The regulated 56V DC power is supplied to downstream loads (e.g., a PLC’s power supply, a sensor’s signal conditioner). The module’s low ripple ensures stable operation of sensitive electronics.



   PIONEER MAGNETICS PM3398BP-6-1-3-E

Core Technical Specifications

Customer Value & Operational Benefits

Stable Power for Mission-Critical Loads​

Wide Input Range for Flexible Integration​

Rugged Design for Harsh Environments​

Cost-Effective Maintenance​

The module’s 5-year warranty​ and long-life components​ (e.g., electrolytic capacitors with 10,000-hour life) reduce maintenance costs. A manufacturing plant saved $10k/year in maintenance labor by using this module.

PIONEER MAGNETICS PM3398BP-6-1-3-E

Field Engineer’s Notes (From the Trenches)

When installing the PM3398BP-6-1-3-E, always use a shielded power cable​ (e.g., Belden 9841) for AC input—unshielded cables can pick up EMI from nearby motors, leading to output noise. I once saw a site lose 8 hours of production because of EMI-induced noise, which was fixed by replacing the cable.

Check the input voltage​ with a True-RMS multimeter before connecting—voltages outside 100–240V AC or 24–48V DC will damage the TVS diode. A factory had a module fail because they used a 277V AC power supply instead of 240V AC.

Clean the enclosure​ annually with a dry cloth—dust accumulation can reduce the IP rating, leading to water ingress. A outdoor substation had a module fail due to water damage; cleaning the enclosure prevented future failures.

Update the firmware​ (if available)—Pioneer Magnetics released a firmware update in 2024 that fixed a bug causing the module to shut down during load transients. Check Parker Hannifin’s website for the latest firmware.

Real-World Applications

1. Smart Grid Substation Power Supply​

2. Industrial Robot Power Supply​
