Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | ABB 100472-012 |
| Manufacturer | ABB |
| Product Category | Operator Control Panel |
| Operating Voltage | AC 230V / DC 24V |
| Dimensions (WxHxD) | 100mm x 150mm x 40mm |
| Input/Output Ports | 8 x Digital Inputs, 2 x Analog Inputs, 4 x Digital Outputs |
| Display | 2 Line LCD Display |
| Communication Interface | RS-485 Modbus RTU |
| Operating Temperature | -10°C to +50°C |
| Storage Temperature | -20°C to +70°C |
| Certifications | UL, CE, ISO 9001 |
| Protection Class | IP65 |

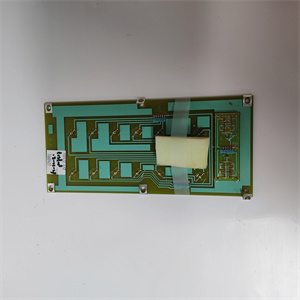

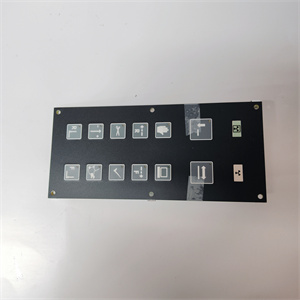

ABB 100472-012
Product Introduction
The ABB 100472-012 is a high-performance operator control panel designed for industrial automation systems. It offers a robust and user-friendly interface for monitoring and controlling industrial processes。
Core Advantages and Technical Highlights
High-Resolution Touchscreen
The ABB 100472-012 features a high-resolution touchscreen, ensuring clear visibility and efficient interaction for operators。
Versatile Communication Capabilities
The panel supports multiple communication interfaces, including RS-485 Modbus RTU, allowing for seamless integration with various control systems。
Durable and Reliable Design
The ABB 100472-012 is designed with an IP65 protection rating, making it suitable for harsh industrial environments. It withstands dust and water ingress, ensuring uninterrupted operation。

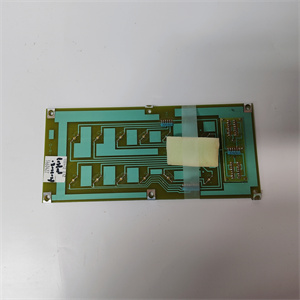

ABB 100472-012
Typical Application Scenarios
The ABB 100472-012 is widely used in:
-
Manufacturing: For controlling production lines and machinery.
-
Power Generation: For monitoring and controlling critical processes in power plants.
-
Process Control: For precise control of pumps, valves, and mixers in chemical and petroleum industries.
-
Water Treatment: For managing water treatment processes and monitoring equipment.
Related Model Recommendations
-
ABB 07AI91: An analog input module suitable for applications requiring precise analog signal processing.
-
ABB PM581: A PLC module suitable for small systems.
-
ABB PM866K01: A PLC module suitable for large-scale automation.
Installation, Commissioning, and Maintenance Instructions
Installation Preparation
Ensure the environment meets the specified temperature and humidity requirements. Use appropriate tools and safety equipment to secure the panel in place. Connect the panel to the control system according to the manufacturer’s guidelines。
Maintenance Suggestions
Regularly inspect the panel for signs of wear or damage. Keep the unit clean and free from dust to prevent overheating and ensure efficient operation。
