Manufacturer: ABB Part number: ABB 3ASD573001A13
Our extensive ABB catalogue, including
: ABB 3ASD573001A13
, is available now for dispatch to the worldwide.
3ASD573001A13: Product OverviewThe 3ASD573001A13 is a control unit designed for ABB’s ACS880 series of industrial drives. This module serves as an extension unit that provides additional input/output capabilities and control interfaces to enhance the functionality of the drive. Installed within the ACS880 drive cabinet, it expands the drive’s capacity to interface with external control systems, sensors, and peripheral devices. The module enables more sophisticated control schemes and integration with automation systems by providing extra digital and analog I/O points beyond the standard drive configuration.The control unit operates as an integral part of the ACS880 drive system, communicating with the main drive controller to exchange I/O data and control signals. It allows for custom programming and configuration to implement specific control logic, interlocks, and monitoring functions tailored to the application requirements. The module is designed for industrial environments where reliable operation under conditions of electrical noise, vibration, and temperature variation is essential.

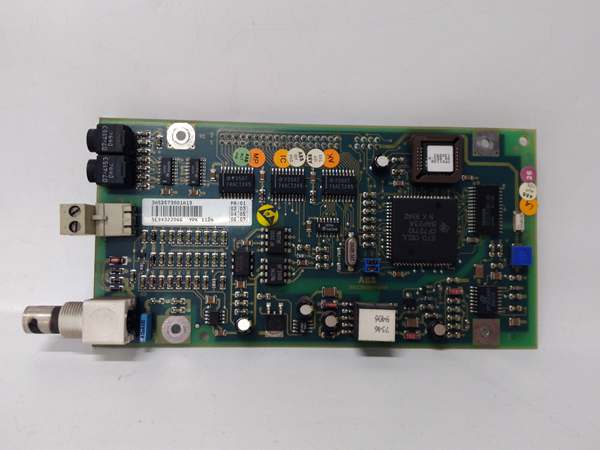

ABB 3ASD573001A13
3ASD573001A13: Technical Specifications
•• Model Number: 3ASD573001A13
•• Manufacturer: ABB
•• Product Type: Drive Control Unit / I/O Extension Module
•• Compatible Drives: ACS880 Series
•• Inputs: Digital and analog inputs (quantity and type specific to variant)
•• Outputs: Digital and analog outputs (quantity and type specific to variant)
•• Communication Interfaces: Typically supports fieldbus protocols
•• Power Supply: 24V DC (typically from drive internal supply)
•• Operating Temperature: 0°C to 55°C
•• Mounting: Internal drive mounting
•• Programming: Configurable with drive engineering tools

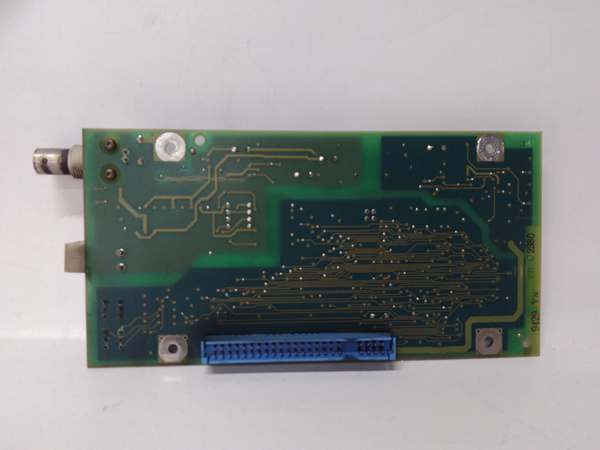

ABB 3ASD573001A13
Core Features & Customer ValueThe primary value of this control unit is its ability to extend the I/O capacity of ACS880 drives, reducing or eliminating the need for external PLCs in many applications. For system integrators, this means simpler system architecture, reduced component count, and lower overall project costs. The integrated design ensures reliable communication between the extension module and the main drive controller, providing deterministic performance for critical control functions.The module’s programmability allows implementation of application-specific control logic directly within the drive system. This enables customized sequencing, interlocking, and monitoring functions that are tightly synchronized with drive operation. For end-users, this results in optimized machine performance and simplified troubleshooting since all drive-related control resides in a single platform.Typical ApplicationsIn conveyor system applications, the 3ASD573001A13 controls peripheral devices such as diverters, gates, and product detection sensors. The module coordinates these devices with the conveyor speed and position control implemented in the main drive controller.In pump control systems, the module interfaces with pressure transmitters, flow meters, and valve controllers to implement complex pumping sequences and protection functions. The integrated approach ensures precise coordination between pump speed and process requirements.
