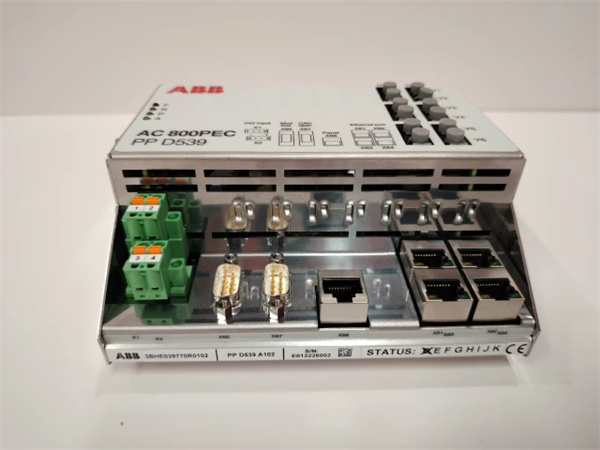

ABB 3BHE039770R0102 PPD539A102

Product introduction

The ABB 3BHE039770R0102 PPD539A102 is a high-capacity, multi-voltage power distribution module engineered to meet the demanding power management needs of complex industrial control systems. As a flagship component in ABB’s advanced power distribution lineup, ABB 3BHE039770R0102 PPD539A102 integrates 16 regulated 24 V DC circuits, 10 unregulated 230 V AC circuits, and 4 regulated 48 V DC circuits, providing a comprehensive power solution for diverse industrial devices in large-scale automation setups.

ABB 3BHE039770R0102 PPD539A102 combines robust power handling with intelligent protection mechanisms, ensuring reliable operation of critical components such as turbine control modules, safety relays, and communication interfaces. Its 3-phase input design enhances stability in high-power applications, while advanced features like arc fault detection and remote monitoring capabilities make it ideal for mission-critical environments. Whether deployed in power generation plants, large manufacturing facilities, or process industry control rooms, ABB 3BHE039770R0102 PPD539A102 simplifies power system architecture, improves fault tolerance, and reduces maintenance overhead.

Core advantages and technical highlights

Triple-voltage output configuration: ABB 3BHE039770R0102 PPD539A102 offers 24 V DC, 48 V DC, and 230 V AC outputs in a single module, eliminating the need for multiple specialized distribution units. In a large-scale turbine control system, this allows powering of 24 V sensors (e.g., DSCA114 analog input modules), 48 V actuators, and 230 V cooling fans from one centralized unit—reducing cabinet space by up to 40% and simplifying wiring complexity.

High-power handling with 3-phase input: The 3-phase 200-480 V AC input and 20 A total DC output capacity enable ABB 3BHE039770R0102 PPD539A102 to support high-density control systems without voltage drop. In a combined-cycle power plant’s control room, this capability allows the module to simultaneously power multiple DKTFM418B turbine control modules, UNC4672AV1 safety modules, and XVC517AE10 HMIs—ensuring stable operation even during peak load conditions.

Advanced protection suite: Equipped with per-circuit overcurrent protection, arc fault detection, and overvoltage clamping, ABB 3BHE039770R0102 PPD539A102 provides multi-layered defense against electrical hazards. Arc fault detection identifies incipient wiring faults (e.g., loose connections) before they escalate into fires, triggering an alarm and isolating the affected circuit. In a chemical plant, this feature prevents potential explosions caused by electrical arcing in hazardous areas, enhancing overall site safety.

Remote monitoring and diagnostics: Integrated with Modbus TCP communication, ABB 3BHE039770R0102 PPD539A102 allows remote monitoring of output voltages, current loads, and fault status via SCADA systems or ABB’s Ability™ platform. Maintenance teams can track circuit utilization, predict overloads, and diagnose faults without opening the control cabinet—reducing downtime in critical applications like nuclear power plant control systems.

Typical application scenarios

In a 600 MW coal-fired power plant’s turbine control room, ABB 3BHE039770R0102 PPD539A102 distributes power to a network of control devices: 24 V DC circuits power DKTFM418B turbine controllers, DSCA114 analog modules, and CI627A communication interfaces; 48 V DC circuits supply servo actuators for steam valves; 230 V AC circuits power cabinet cooling systems and lighting. During a transient voltage surge, the module’s overvoltage protection clamps the input, safeguarding sensitive electronics. Its arc fault detection identifies a loose connection in a 230 V circuit, triggering an alarm to maintenance staff before a fire can start.

In an automotive manufacturing plant’s central control cabinet, ABB 3BHE039770R0102 PPD539A102 supports a mixed fleet of devices: 24 V sensors and PLCs, 48 V robotic grippers, and 230 V AC motor contactors. The module’s remote monitoring capability allows plant engineers to track power usage across shifts, identifying that 24 V circuits are operating at 80% capacity—enabling proactive redistribution of loads to prevent overloads. Its 3-phase input ensures stable power delivery even when the plant’s electrical system experiences phase imbalances.

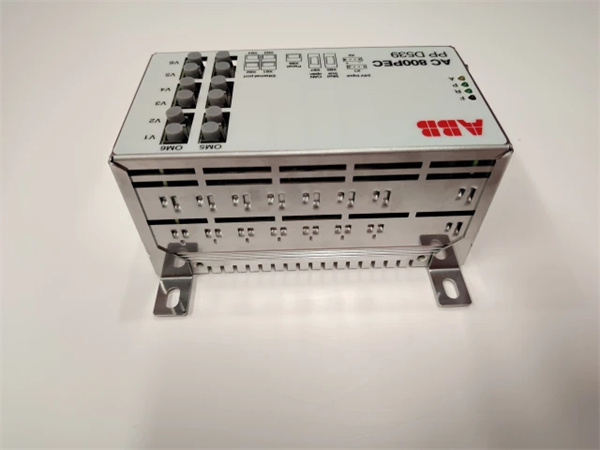

ABB 3BHE039770R0102 PPD539A102

Related model recommendations

ABB DKTFM418B 3BHB015651P0001: A turbine control module powered by ABB 3BHE039770R0102 PPD539A102’s 24 V DC circuits.

ABB UNC4672AV1 HIEE205012R1: A safety control module that relies on ABB 3BHE039770R0102 PPD539A102’s stable 24 V power.

ABB CI627A 3BSE017457R1: A communication module connected to ABB 3BHE039770R0102 PPD539A102 for reliable operation.

ABB XVC517AE10 3BHB004744R0010: An HMI panel powered by ABB 3BHE039770R0102 PPD539A102’s regulated 24 V outputs.

ABB 200900-004: Heavy-duty terminal blocks for distributing outputs from ABB 3BHE039770R0102 PPD539A102.

ABB TB857: Surge protection devices installed upstream to shield ABB 3BHE039770R0102 PPD539A102 from transients.

Installation, commissioning and maintenance instructions

Installation preparation: Mount ABB 3BHE039770R0102 PPD539A102 on a 35 mm DIN rail in a control cabinet, ensuring 100mm clearance above and below for ventilation. Connect 3-phase 200-480 V AC input using 4mm² cable, protected by a 16A circuit breaker. Configure overcurrent settings (24 V: 0.5-3 A, 48 V: 1-5 A, 230 V AC: 1-6 A) via front-panel DIP switches. Wire outputs to devices through 200900-004 terminal blocks, using 1mm² cable for 24 V/48 V circuits and 1.5mm² for 230 V AC circuits. Connect the Modbus TCP port to the plant network for remote monitoring. Ground the module via the dedicated terminal. Use a torque screwdriver set to 1.2 Nm for all connections. Power off the system during installation.

Maintenance suggestions: Inspect ABB 3BHE039770R0102 PPD539A102 monthly for loose connections, dust accumulation, and LED status (power: green, faults: red per channel, arc detection: flashing yellow). Clean ventilation slots with compressed air quarterly. Verify output regulation semi-annually by measuring voltages under full load (24 V: 23.5-24.5 V, 48 V: 46-49 V). Test arc fault detection annually using a certified test tool. Update firmware annually via Modbus TCP to access the latest protection algorithms. If a circuit trips repeatedly, check for overloads or device faults before replacing the module—use only ABB-certified replacements.

Service and guarantee commitment

ABB 3BHE039770R0102 PPD539A102 is backed by a 5-year warranty from installation, covering manufacturing defects and ensuring protection features meet published standards. ABB’s power systems technical support team provides response within 4 hours for critical issues, with 24/7 remote diagnostics available to minimize downtime in mission-critical applications. On-site service is available within 48 hours in major industrial regions.

The warranty includes free access to configuration software, firmware updates, and technical documentation. Extended service contracts offer annual preventive maintenance, performance validation, and priority support, ensuring the module maintains optimal performance throughout its 20-year design lifespan. ABB’s commitment to excellence underscores confidence in ABB 3BHE039770R0102 PPD539A102 as a reliable backbone for industrial power distribution.
