Name: ABB 3BHL000387P0101 | 5SNA Series IGBT Module for Medium-Voltage Drives - XINYEDA
Brand: ABB
SKU: ABB 3BHL000387P0101

Description

3BHL000387P0101: Product Overview

The ABB 3BHL000387P0101 is a high-performance IGBT (Insulated Gate Bipolar Transistor) power module designed for demanding industrial applications requiring robust power switching. As part of ABB’s 5SNA series, this module is engineered to deliver reliable performance in medium-voltage drives (e.g., motor control for pumps, compressors) and traction converters (e.g., electric vehicles, rail systems). Its core function is to act as a switch in power electronic circuits, converting DC power to AC (inverter operation) or AC to DC (rectifier operation) with high efficiency.

In industrial automation systems, the module plays a critical role in controlling the speed and torque of electric motors, reducing energy consumption, and improving process precision. For example, in a large pump station, the 3BHL000387P0101 would be integrated into a variable frequency drive (VFD) to adjust the pump’s speed based on demand, minimizing energy waste. In traction applications, it would be used in electric train converters to manage power flow between the grid and the motor, ensuring smooth acceleration and braking.

The module belongs to ABB’s 5SNA series, which is known for its high power density, thermal efficiency, and compatibility with industrial control systems. ABB’s expertise in power electronics ensures that this module meets strict industry standards (e.g., IEC 60747-9 for semiconductor devices) and is backed by comprehensive technical support.

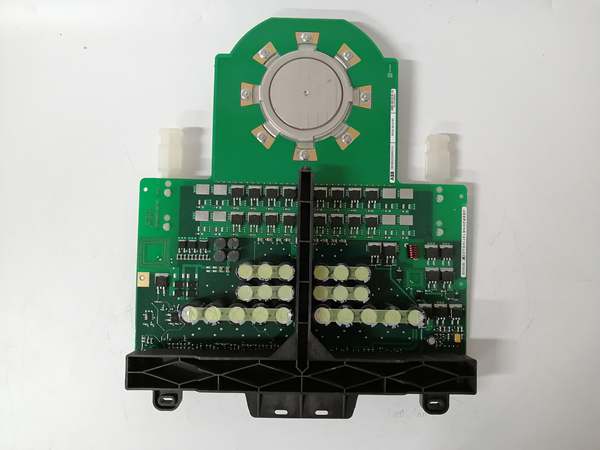

ABB 3BHL000387P0101

Technical Specifications

Model Number: 3BHL000387P0101
Manufacturer: ABB
Product Type: IGBT Power Module
Series: 5SNA Series
Blocking Voltage: 1700V (maximum voltage the module can withstand without breakdown)
Rated Current: 1200A (continuous current handling capacity at rated conditions)
Cooling Method: Direct Water Cooling (requires a closed-loop water system for heat dissipation)
Switching Frequency: ≤10kHz (maximum frequency for reliable switching operations)
Operating Temperature: -40℃ to +150℃ (junction temperature range for reliable performance)
Mounting Type: Press-Pack (designed for easy integration into power converter cabinets)
Dimensions: 150mm × 120mm × 50mm (compact size for space-constrained applications)

Core Features & Customer Value

High Power Density: The 3BHL000387P0101 combines high voltage (1700V) and current (1200A) ratings in a compact press-pack design, making it ideal for applications where space is limited (e.g., traction converters in electric trains). This high power density reduces the size and weight of the overall system, lowering installation and maintenance costs.

Efficient Cooling with Direct Water Cooling: The module uses direct water cooling, which is more efficient than air cooling for high-power applications. This design minimizes thermal resistance, allowing the module to operate at higher currents without overheating. For example, in a steel mill’s motor drive system, efficient cooling ensures continuous operation even during peak loads, reducing downtime.

Reliable Switching Performance: With a switching frequency of up to 10kHz, the module enables fast switching between on and off states, reducing harmonic distortion in power systems. This is critical for applications like variable frequency drives, where smooth motor operation depends on precise switching. The high switching frequency also allows for smaller passive components (e.g., capacitors, inductors) in the drive system, further reducing costs.

Wide Operating Temperature Range: The module’s ability to operate from -40℃ to +150℃ makes it suitable for harsh industrial environments (e.g., outdoor substations, cold storage facilities). This wide temperature range ensures reliable performance even in extreme conditions, minimizing the need for additional heating or cooling systems.

Compatibility with Industrial Systems: As part of ABB’s 5SNA series, the module is designed to integrate seamlessly with ABB’s drives, converters, and control systems. This compatibility simplifies system design and reduces integration time for engineers. For example, a system integrator can easily incorporate the 3BHL000387P0101 into an ABB VFD without needing custom interface circuits.

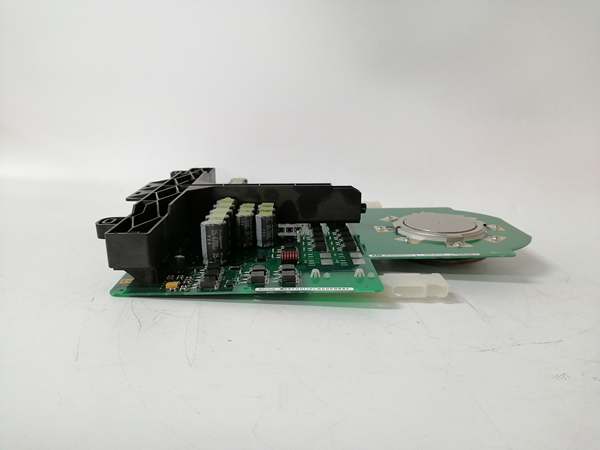

ABB 3BHL000387P0101

Typical Applications

Medium-Voltage Motor Drives: The 3BHL000387P0101 is commonly used in medium-voltage VFDs for controlling large motors in industries like oil and gas (pumpjacks, compressors), water treatment (pumps, blowers), and mining (conveyors, crushers). For example, in a water treatment plant, the module would be part of a VFD that adjusts the speed of a pump to match the demand for water, reducing energy consumption by up to 30% compared to constant-speed pumps.

Traction Converters: The module is ideal for traction applications, such as electric trains, trams, and mining locomotives. In an electric train, the 3BHL000387P0101 would be used in the converter to convert AC power from the overhead lines to DC power for the train’s motors. Its high current rating (1200A) ensures that the train can accelerate quickly and handle heavy loads, while its direct water cooling keeps the system cool during long operating hours.

Renewable Energy Systems: The module can be used in renewable energy applications like wind turbines and solar inverters. In a wind turbine, the 3BHL000387P0101 would be part of the converter that converts the variable AC power from the turbine’s generator to DC power, which is then converted back to AC power for the grid. Its high efficiency (due to direct water cooling) helps maximize the energy output of the wind turbine.

Industrial Power Supplies: The module is used in high-power industrial power supplies for applications like electroplating, induction heating, and arc welding. In an electroplating plant, the 3BHL000387P0101 would be part of a rectifier that converts AC power to DC power for the electroplating bath. Its high current rating ensures that the bath can handle large loads, while its reliable switching performance ensures consistent plating quality.
