ABB 3BSE011181R1 PM511V | Symphony Series DCS Fieldbus Communication Interface
ABB 3BSE011181R1 PM511V | Symphony Series DCS Fieldbus Communication Interface
Brand: ABB
Model: 3BSE011181R1 PM511V
Product Type: PROFIBUS DP Communication Processor Module
Series: Symphony Harmony Series
Core Function: Enables PROFIBUS DP protocol communication between Symphony DCS main processors and field devices; manages data framing, error checking, and protocol conversion for reliable fieldbus data exchange.
Key Specs: Supports PROFIBUS DP V1, 9.6 kbps–12 Mbps data rates, RS485 interface, 24 VDC power supply.
Manufacturer: ABB Part number: ABB 3BSE011181R1 PM511V
Our extensive ABB catalogue, including
: ABB 3BSE011181R1 PM511V
, is available now for dispatch to the worldwide.
3BSE011181R1 PM511V: Product OverviewThe 3BSE011181R1 PM511V is a PROFIBUS DP communication processor module within ABB’s Symphony Harmony Series, designed for integration into Symphony Distributed Control Systems (DCS). Its role is to serve as the fieldbus interface between the DCS main processor (e.g., INFI 90) and PROFIBUS DP-enabled field devices, such as smart transmitters, valve positioners, and motor controllers. Positioned in the DCS I/O rack, it bridges the gap between the system’s proprietary communication backbone and the open PROFIBUS DP standard, ensuring seamless data exchange in process control environments.Core functionality includes supporting both PROFIBUS DP master and slave modes, allowing the module to either poll field devices (master) or respond to higher-level system queries (slave). It processes cyclic data (process variables, control commands) and acyclic data (device configuration, diagnostic messages) per DP V1 specifications. Signal handling involves converting digital data from the DCS to PROFIBUS DP telegrams and vice versa, with built-in error detection (CRC checks) and retransmission mechanisms. As part of the Symphony Harmony platform, it leverages the series’ modularity, hot-swappable design, and compatibility with Symphony I/O carriers. Benefits include reduced wiring complexity (vs. analog loops), centralized device management via DCS, and scalability for multi-device networks.

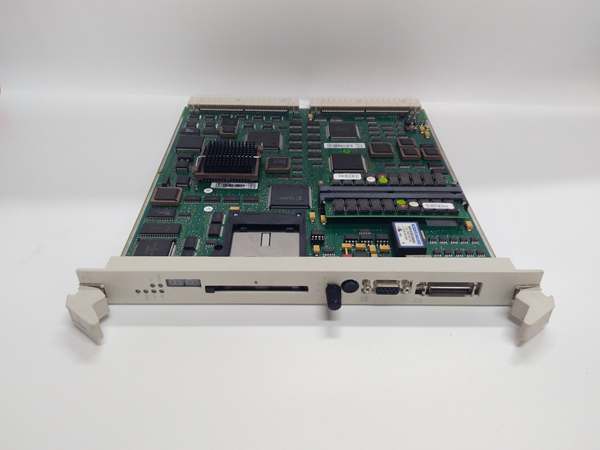

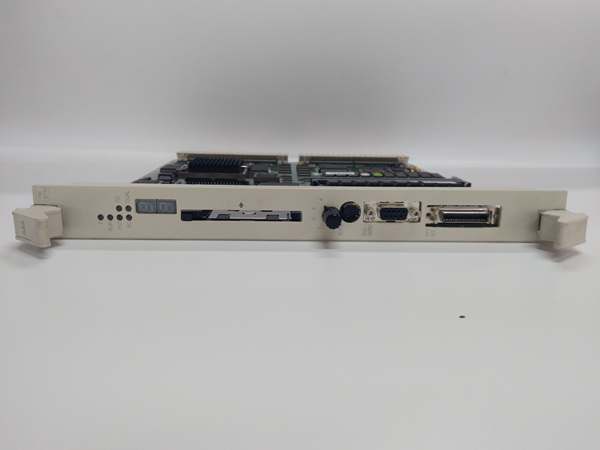

ABB PM511V 3BSE011181R1
3BSE011181R1 PM511V: Technical Specifications
Model Number: 3BSE011181R1 PM511V
Manufacturer: ABB
Product Type: PROFIBUS DP Communication Processor Module
Processor Architecture: 16-bit microcontroller with dedicated communication co-processor
Communication Protocol: PROFIBUS DP (EN 50170, V1 compliant)
Number of Devices Supported: Up to 125 slave devices per segment
Power Supply: 24 VDC (±10%, 50 mA typical consumption)
Operating Temperature: 0°C to +55°C
Storage Temperature: -40°C to +85°C
Dimensions: 110 mm x 30 mm x 115 mm (height x width x depth)
Weight: 0.25 kg
Certifications: CE, UL, cULus, ATEX Zone 2 (optional)
Mounting: DIN rail (35 mm) or panel mount
Core Features & Customer ValueSupport for PROFIBUS DP V1 enhances device integration flexibility. Unlike basic DP, V1 enables acyclic communication for device parameterization, firmware updates, and advanced diagnostics (e.g., valve travel logs). For engineers, this eliminates the need for separate configuration tools, streamlining commissioning of smart field instruments like Endress+Hauser Promass flowmeters or Samson 3730 valve positioners.Wide data rate range (9.6 kbps–12 Mbps) adapts to diverse network demands. Lower rates suit long cable runs (up to 1200 m at 9.6 kbps) in sprawling plant areas, while 12 Mbps supports high-density device clusters (e.g., a skid-mounted analyzer suite). This eliminates the need for multiple communication modules, reducing inventory complexity.Integrated error handling and diagnostics improve system reliability. The module continuously monitors bus voltage, signal integrity, and device response times, flagging issues (e.g., cable breaks, device faults) via DCS alarms. Maintenance teams can pinpoint failures to specific segments or devices, cutting troubleshooting time by 30% compared to analog systems.Hot-swappable design minimizes downtime. If a module fails, it can be replaced without powering down the DCS rack, critical for continuous processes like refinery distillation. The module’s self-test routine on startup verifies communication links, ensuring readiness before resuming operations.

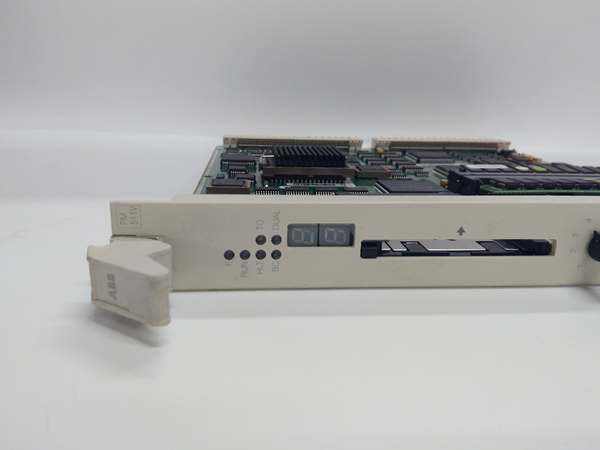

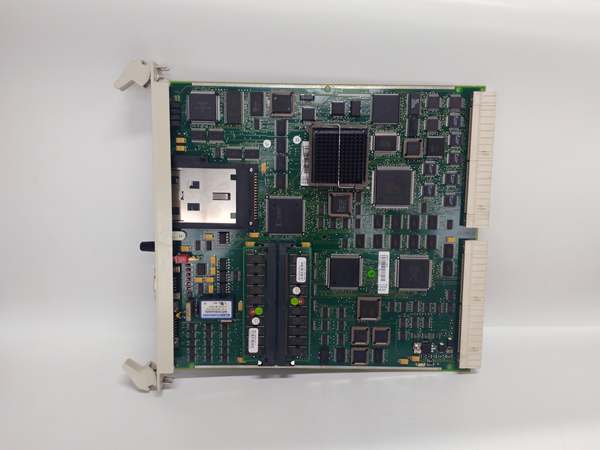

ABB PM511V 3BSE011181R1
Typical ApplicationsIn a petrochemical refinery’s catalytic reformer unit, the module connects a Symphony DCS main processor to 40+ PROFIBUS DP smart pressure transmitters (Rosemount 3051S) and control valves (Fisher GX). It transmits process pressure data cyclically (100 ms intervals) and receives valve setpoint adjustments, enabling precise reactor temperature control. The 12 Mbps rate accommodates the high density of devices in the compact unit area.At a municipal wastewater treatment plant, it interfaces the DCS with a PROFIBUS DP-based pump station. The module polls variable-speed drives (ABB ACS580) for motor current and status, and sends start/stop commands based on level transmitter inputs. Acyclic communication configures drive parameters (e.g., ramp rates) remotely, avoiding manual keypad adjustments.In a pharmaceutical batch reactor, the module supports DP V1 for aseptic valve assemblies (Burkert Type 8694). It exchanges acyclic data to log valve sterilization cycles and validate seal integrity, meeting FDA 21 CFR Part 11 audit trail requirements. The 0–55°C operating range suits the cleanroom environment.
