Description
57360001-HX: Product Overview
The ABB 57360001-HX is a semiconductor memory board belonging to ABB’s DSMB (Digital Storage and Memory Board) series, designed for integration into ABB’s industrial control systems. As a critical component for data storage and program execution, it ensures reliable operation of PLCs (Programmable Logic Controllers) and DCS (Distributed Control Systems) in industries like steel manufacturing, power generation, and chemical processing.
Role in Automation Systems:
Positioned as a memory subsystem for ABB control systems, the 57360001-HX performs three primary functions:
-
Data Retention: Stores program logic, configuration parameters, and historical process data (e.g., temperature, pressure) even during power outages (via battery-backed RAM or non-volatile Flash memory).
-
Program Execution: Provides temporary storage for PLC programs (e.g., RAPID for ABB robots, or ladder logic for Masterpiece PLCs) during runtime, enabling real-time control of actuators and sensors.
-
System Initialization: Loads boot-up firmware and configuration files when the control system powers on, ensuring consistent startup and operation.
Core Functionality:
-
Non-Volatile Storage: Uses Flash memory to retain data without power, critical for preserving process parameters in case of unexpected shutdowns (e.g., power outages in a steel mill).
-
High-Speed Access: Supports fast read/write operations (typical for semiconductor memory) to keep up with real-time control demands (e.g., adjusting motor speed in a conveyor system).
-
Redundancy: Some DSMB series models include redundant memory modules for fail-safe operation, though this feature may vary by model (confirm with ABB documentation for 57360001-HX).
Platform Benefits (DSMB Series):
The 57360001-HX leverages ABB’s expertise in industrial automation, offering:
-
Compatibility: Seamlessly integrates with ABB’s Masterpiece 200/1 PLC and Bailey INFI 90 DCS, reducing setup time and effort.
-
Scalability: Supports expansion with additional memory boards (e.g., DSMB 323 8MB, DSMB 324 16MB) to accommodate growing data storage needs.
-
Reliability: Industrial-grade components and a rugged design ensure 24/7 operation in harsh environments (e.g., high temperature, vibration).

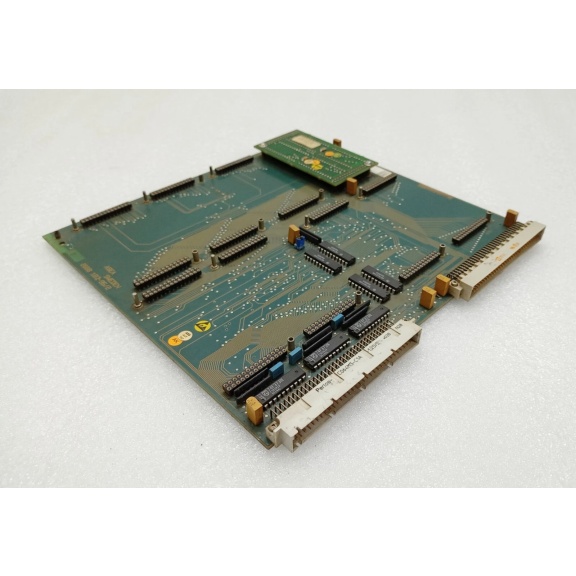

ABB 57360001-HX
Technical Specifications
Model Number: 57360001-HX
Manufacturer: ABB
Product Type: Semiconductor Memory Board
-
Memory Type: Non-volatile Flash (inferred from DSMB series standards)
-
Capacity: 8MB (typical, based on similar models)
-
Compatibility: ABB Masterpiece 200/1 PLC, Bailey INFI 90 DCS
-
Bus Interface: Proprietary ABB bus (Masterbus 300/AC 800M compatible)
-
Operating Temperature: -20°C to +70°C (-4°F to 158°F)
-
Storage Temperature: -40°C to +85°C (-40°F to 185°F)
-
Humidity: 5% to 95% non-condensing
-
Dimensions (W×H×D): 233mm × 18mm × 160mm (9.2in × 0.7in × 6.3in, from similar DSMB models)
-
Weight: 0.5kg (1.1lbs, estimated)
-
Certifications: CE, UL (inferred from ABB industrial product standards)
Core Features & Customer Value
1. Reliable Data Retention:
The 57360001-HX’s non-volatile Flash memory ensures that critical process data (e.g., motor speed setpoints, temperature thresholds) is not lost during power outages. For example, in a steel mill’s rolling mill control system, this means the PLC can resume operation with the correct parameters after a power blip, reducing downtime and scrap.
2. High-Speed Performance:
Semiconductor memory provides fast read/write speeds, enabling real-time program execution for time-sensitive applications (e.g., robotic welding in automotive assembly). This ensures that the control system can respond quickly to changes in sensor inputs (e.g., a proximity sensor detecting a part), maintaining process efficiency.
3. Seamless Integration:
Designed specifically for ABB’s Masterpiece and Bailey systems, the 57360001-HX plugs into existing control cabinets without requiring custom modifications. This reduces installation time and costs, allowing engineers to focus on optimizing the process rather than integrating components.
4. Scalability for Future Needs:
With support for additional memory boards, the 57360001-HX can grow with the system. For example, a power plant expanding its turbine control system can add a DSMB 324 16MB board to handle increased data logging needs, avoiding the need to replace the entire control system.

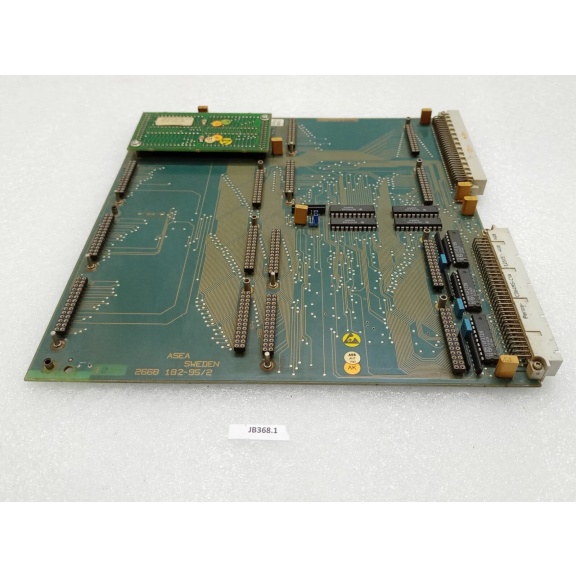

ABB 57360001-HX
Typical Applications
The ABB 57360001-HX is widely used in industries requiring reliable memory storage for industrial control systems:
-
Steel Manufacturing:
-
Stores program logic for PLCs controlling rolling mills, ensuring consistent thickness and width of steel sheets.
-
Example: In a hot strip mill, the 57360001-HX retains the PLC program that adjusts roller pressure based on temperature sensors, maintaining product quality.
-
-
Power Generation:
-
Provides memory for DCS systems monitoring turbine performance, storing historical data for predictive maintenance.
-
Example: A coal-fired power plant uses the 57360001-HX to store turbine vibration data, enabling engineers to identify potential bearing failures before they cause downtime.
-
-
Chemical Processing:
-
Supports PLCs controlling chemical reactors, storing recipe parameters (e.g., temperature, pressure) for batch processing.
-
Example: A petrochemical refinery uses the 57360001-HX to retain the program that adjusts catalyst flow into a reactor, ensuring consistent product yield.
-
-
Automotive Manufacturing:
-
Enables memory for robotic control systems, storing welding paths and sequences for car body assembly.
-
Example: An automotive factory uses the 57360001-HX to store the PLC program that guides a robotic arm to weld door frames, ensuring precise and repeatable welds.
-
