Manufacturer: ABB Part number: ABB 5SHX14H4502
Our extensive ABB catalogue, including
: ABB 5SHX14H4502
, is available now for dispatch to the worldwide.
5SHX14H4502: Product OverviewThe 5SHX14H4502 is a high-power IGBT (Insulated Gate Bipolar Transistor) module from ABB’s HiPak series, designed for robust performance in industrial power electronic systems. This module serves as a core switching element in voltage source converters (VSCs) used in applications such as industrial variable frequency drives (VFDs), UPS systems, and renewable energy applications. Its primary function is to switch high currents at medium voltages with precise timing to synthesize controlled AC waveforms from a DC bus.The module utilizes a standard industry package with an isolated baseplate, allowing for easy mounting to a heatsink. This design provides effective thermal management for high-power applications. The module contains advanced IGBT chips with low saturation voltage and optimized switching characteristics, designed for high efficiency and reliability in demanding industrial environments. The internal structure typically includes an IGBT and anti-parallel diode in a specific configuration depending on the module type.

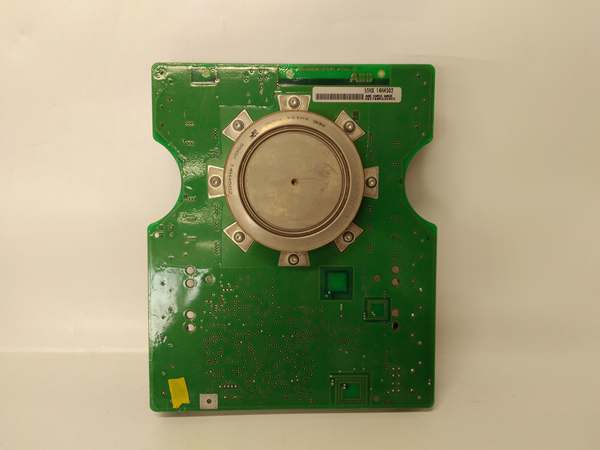

ABB 5SHX14H4502
5SHX14H4502: Technical Specifications
•• Model Number: 5SHX14H4502
•• Manufacturer: ABB
•• Product Type: IGBT Module
•• Collector-Emitter Voltage (Vces): 1400 V
•• Nominal Collector Current (Ic): High current rating (specific value depends on cooling and application conditions)
•• Maximum Junction Temperature (Tj): 150 °C
•• Package Type: HiPak (Standard module with isolated baseplate)
•• Cooling Method: Single-sided cooling (liquid or forced air)
•• Application: Industrial Drives, Power Conversion Systems
ABB 5SHX14H4502
Core Features & Customer ValueThe HiPak package offers excellent thermal performance and mechanical robustness, making it suitable for industrial environments with high reliability requirements. The low thermal resistance of the package allows for efficient heat transfer to the heatsink, enabling high power density in converter designs. For system designers, this translates to compact converter sizes and reliable operation under demanding conditions.The 1400V voltage rating makes this module suitable for industrial drives and power conversion systems operating at common DC bus voltages. The high junction temperature rating of 150°C provides additional margin for thermal management under demanding operating conditions. These characteristics make the module well-suited for industrial applications where reliability and performance are critical.Typical ApplicationsIn industrial variable frequency drives for motors, the 5SHX14H4502 IGBT is used in the inverter section to convert DC power to variable frequency AC output. This enables precise speed control of industrial motors, leading to energy savings and process optimization in various industries.In UPS systems and industrial power supplies, these IGBTs perform high-frequency switching to convert power efficiently. Their robust construction and high current capability make them suitable for handling the power demands of industrial facilities.
