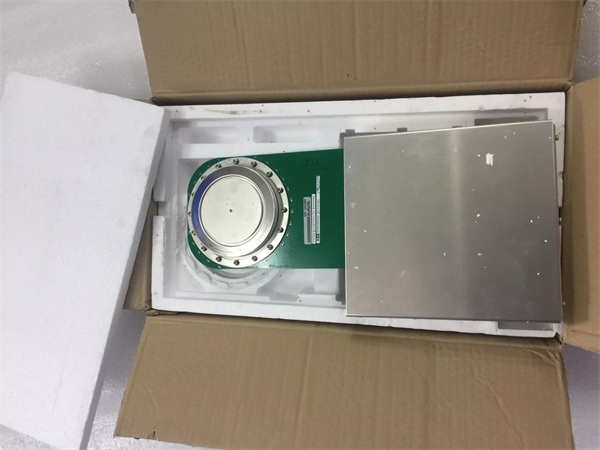

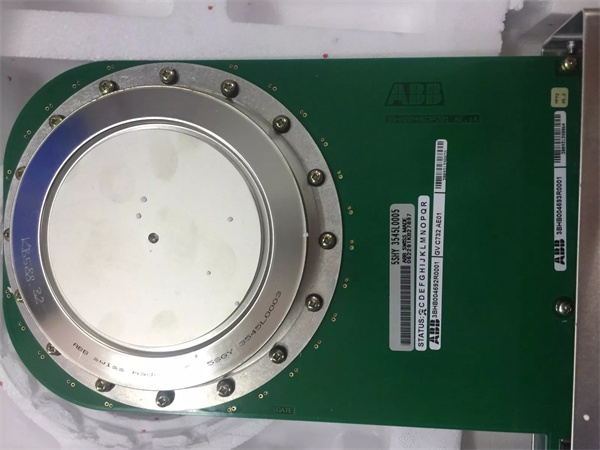

ABB 5SHY3545L0005 | High-Power IGCT Module for Medium-Voltage Drives

5SHY3545L0005: Product Overview​

The 5SHY3545L0005 is a high-power integrated gate-commutated thyristor (IGCT) module designed for critical roles in industrial power conversion architectures. It serves as the primary switching element in medium-voltage drive systems, flexible AC transmission systems (FACTS), and high-voltage direct current (HVDC) transmission links. Within these systems, it functions as the gateway for controlling substantial electrical energy, handling thousands of amps at kilovolt-level voltages. Its core responsibility involves switching DC or AC power flows with rapid transition times to regulate motor speeds, stabilize electrical grids, or transmit power over long distances.

The module belongs to ABB’s 5SHY Series, a platform developed to meet the demands of modern, high-efficiency power electronics. This series combines the high-voltage-blocking capability of gate turn-off thyristors (GTOs) with the fast-switching performance of insulated-gate bipolar transistors (IGBTs). For engineers, this translates to a component that offers superior efficiency and thermal performance in demanding applications. The platform’s design emphasizes reliability and ease of integration, supported by standardized packaging and comprehensive technical documentation, which simplifies system design and maintenance procedures.

5SHY3545L0005: Technical Specifications​

Core Features & Customer Value​

The high power density of this module, with a 4000A continuous current and 4500V blocking voltage rating, allows a single component to control large electric motors and power systems. For the end user, this reduces the number of parallel devices needed, simplifying the bill of materials and the physical layout of the power converter. The fast switching capability, with a turn-off time of less than 1 microsecond, enables precise control of dynamic loads, which improves the overall efficiency of the system and its response to command signals.

Low conduction loss is another key aspect of the design. By minimizing the voltage drop across the device when conducting (typically ≤2.7V at rated current), the module reduces internal heating. This directly translates to lower cooling requirements and decreased operational costs over the system’s lifecycle. The rugged construction, with a high-strength aluminum alloy housing for heat dissipation and electromagnetic shielding, and a hermetically sealed package, ensures reliable operation in harsh industrial environments, such as those found in steel mills or rail traction, where vibration and temperature extremes are common. Finally, the inclusion of integrated protection mechanisms, such as overcurrent (1.5x rated current auto-shutdown), overvoltage, and thermal safeguards, enhances system reliability by preventing damage from fault conditions.

Typical Applications​

This module is an integral part of medium-voltage drive systems used to control large motors in heavy industries. For example, in a steel rolling mill, it would be used in the drive inverter to precisely regulate the speed and torque of the main rollers. In the domain of power transmission, it is employed in FACTS installations to enhance grid stability by dynamically adjusting power flow, and in HVDC projects for efficient, long-distance power transfer.

Another significant application is in rail traction. The module is used in the traction converters of locomotives and high-speed trains, where it must operate reliably under varying loads and supply conditions. Its ability to handle high power with fast switching makes it suitable for these demanding tasks. In industrial power supplies, it supports high-power rectification for electrolysis, smelting, and other processes requiring stable, high-current DC outputs. In all these scenarios, the component’s role is to provide a robust and efficient means of controlling large amounts of electrical power.
