ABB 5SHY35L4520, 5SXE10-0181 & AC10272001R0101: Product Overview
This trio comprises an IGCT power module, a signal conditioning sensor module, and a communication interface unit, engineered as a unified solution for ABB medium-voltage drive systems (e.g., ACS6000 series). The 5SHY35L4520 IGCT module serves as the core power switching component, handling 4500A continuous current at 4500V blocking voltage for high-power energy conversion. The 5SXE10-0181 sensor module conditions field signals (e.g., motor temperature, bearing vibration) into standardized formats for control systems. The AC10272001R0101 communication unit enables seamless data exchange between the drive system and host DCS/PLC via industrial Ethernet protocols.
Together, they belong to ABB’s modular automation platform, prioritizing interoperability and end-to-end system integration. The IGCT module’s fast switching (<1μs turn-off) ensures precise motor control, the sensor module’s high accuracy (±0.1% FS) enables proactive condition monitoring, and the communication unit’s protocol flexibility simplifies network integration. This combination targets applications requiring reliable power conversion, real-time sensing, and robust data connectivity in harsh industrial environments.

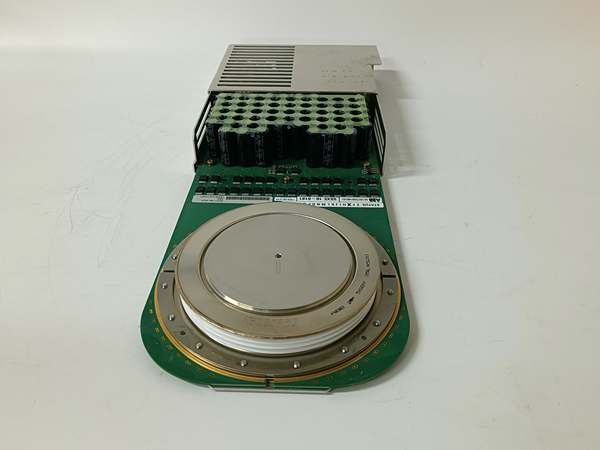

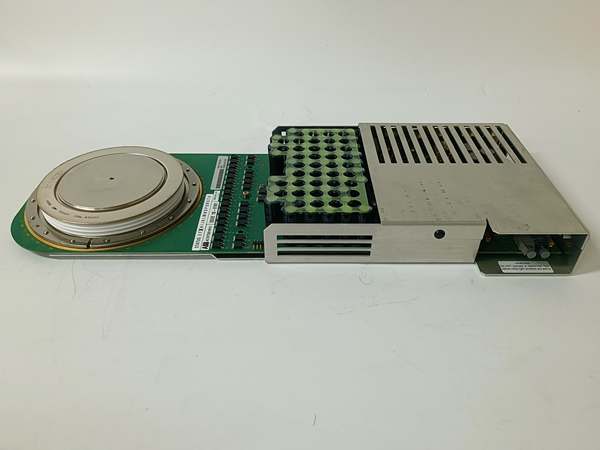

ABB 5SHY35L4520
ABB 5SHY35L4520, 5SXE10-0181 & AC10272001R0101: Technical Specifications
-
Model Number (IGCT Module): 5SHY35L4520
-
Manufacturer: ABB Ltd.
-
Product Type: Integrated Gate-Commutated Thyristor (IGCT) Module
-
Rated Current: 4500A (continuous)
-
Rated Voltage: 4500V (blocking)
-
Turn-Off Time: <1μs
-
Switching Frequency: Up to 400Hz
-
Cooling Method: Forced air cooling / liquid cooling
-
Operating Temperature: -40°C to +85°C (case)
-
Protection Rating: IP20
-
Dimensions: 360mm (L) x 240mm (W) x 115mm (H) (approximate)
-
Weight: ~17kg
-
Certifications: CE, UL (cULus Listed), RoHS
-
Model Number (Sensor Module): 5SXE10-0181
-
Manufacturer: ABB Ltd.
-
Product Type: Signal Conditioning Sensor Module
-
Input Channels: 8 analog (4–20mA/0–10V), 4 digital
-
Accuracy: ±0.1% FS (analog inputs)
-
Filtering: 50/60Hz notch filter, programmable low-pass
-
Operating Temperature: -40°C to +85°C
-
Communication Interface: RS-485 (Modbus RTU)
-
Protection Rating: IP65 (front panel)
-
Dimensions: 120mm (H) x 80mm (W) x 60mm (D)
-
Weight: ~0.5kg
-
Certifications: CE, RoHS
-
Model Number (Communication Unit): AC10272001R0101
-
Manufacturer: ABB Ltd.
-
Product Type: Communication Interface Unit
-
Ports: 2x Ethernet (10/100/1000 Mbps, RJ45)
-
Protocol Support: Profibus DP V1, Modbus TCP/IP, EtherNet/IP
-
Operating Temperature: -25°C to +70°C
-
Power Supply: 24VDC (±10%)
-
Protection Rating: IP20
-
Dimensions: 100mm (H) x 70mm (W) x 60mm (D)
-
Weight: ~0.3kg
-
Certifications: CE, UL (cULus Listed)

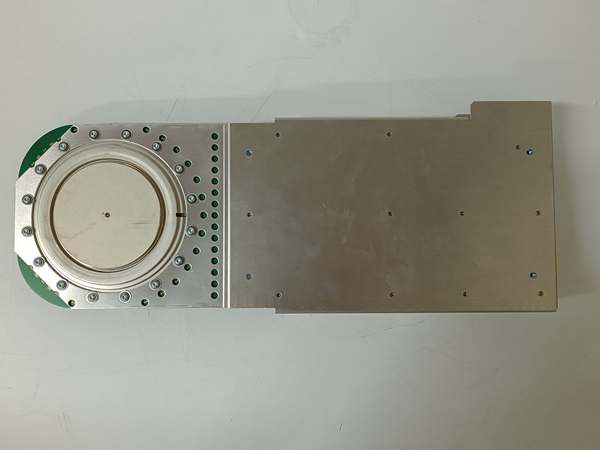

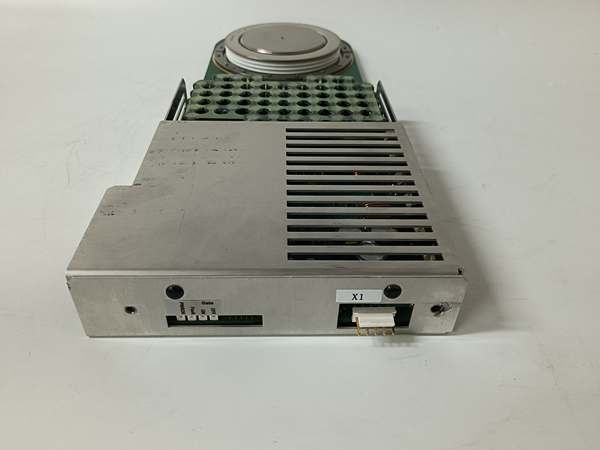

ABB 5SHY35L4520
Core Features & Customer Value
The 5SHY35L4520 IGCT module’s high power density (4500A/4500V) reduces parallel device requirements, simplifying converter layouts and lowering material costs. Its fast switching minimizes energy losses, improving system efficiency by ~5–8% compared to traditional GTOs. For engineers, this translates to compact designs and reduced cooling infrastructure.
The 5SXE10-0181 sensor module’s 8-channel input and ±0.1% FS accuracy enable comprehensive condition monitoring (e.g., tracking motor winding temperature, bearing wear). Its built-in filtering eliminates noise from industrial EMI, ensuring reliable data for predictive maintenance. For maintenance teams, this reduces unplanned downtime by identifying faults before failure.
The AC10272001R0101 communication unit’s dual Ethernet ports and multi-protocol support (Profibus DP, Modbus TCP/IP) simplify integration with legacy and modern systems. Engineers avoid costly protocol converters, while procurement managers benefit from reduced spare parts inventory. Rugged operating ranges (-25°C to +70°C) ensure reliability in control cabinets or field enclosures.
Typical Applications
In steel rolling mills, the 5SHY35L4520 regulates main roller motor torque, the 5SXE10-0181 monitors bearing vibration/temperature, and the AC10272001R0101 transmits data to the plant DCS for real-time optimization. For HVDC transmission, the IGCT handles power conversion, the sensor module tracks converter station temperatures, and the communication unit synchronizes data with grid operators.
In cement plant conveyors, the trio enables speed control (IGCT), material flow sensing (sensor module), and integration with plant-wide SCADA (communication unit). Another application is in rail traction, where the IGCT powers locomotive inverters, the sensor module monitors traction motor health, and the communication unit relays status to onboard controllers.
