ABB 5SHY4045L0001 & 3BHE009681R0101: Product Overview
The ABB 5SHY4045L0001 is a high-power integrated gate-commutated thyristor (IGCT) module designed for medium-voltage drive systems, while the 3BHE009681R0101 is a gate driver unit (GDU) specifically engineered to drive this IGCT module. Together, they form a critical part of ABB’s medium-voltage drive solutions, targeting applications requiring reliable power conversion under harsh industrial conditions.
The 5SHY4045L0001 IGCT module serves as the core power switching component, handling thousands of amps at kilovolt-level voltages. Its design combines the high-voltage-blocking capability of gate turn-off thyristors (GTOs) with the fast-switching performance of insulated-gate bipolar transistors (IGBTs), making it ideal for applications like motor drives, power transmission, and industrial automation. The 3BHE009681R0101 GDU provides the necessary gate signals to control the IGCT’s switching, ensuring precise timing and minimizing energy losses. It also includes built-in protection features, such as overcurrent and overvoltage safeguards, to extend the lifespan of the IGCT module.
Both products are engineered for compatibility with ABB’s modular automation platform, simplifying system integration and maintenance. The 5SHY4045L0001’s standardized packaging and the 3BHE009681R0101’s plug-and-play design reduce installation time, while shared diagnostic tools streamline troubleshooting. This pairing is designed for applications requiring high power density, fast switching, and reliable operation in harsh environments.

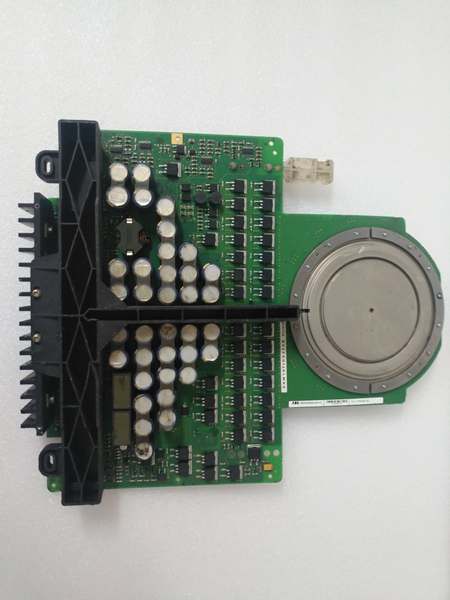

ABB 5SHY4045L0001 3BHE009681R0101
ABB 5SHY4045L0001 & 3BHE009681R0101: Technical Specifications
-
Model Number (IGCT Module): 5SHY4045L0001
-
Manufacturer: ABB Ltd.
-
Product Type: Integrated Gate-Commutated Thyristor (IGCT) Module
-
Rated Current: 4000A (continuous)
-
Rated Voltage: 45kV (blocking)
-
Switching Frequency: Up to 1.6kHz
-
Gate Drive Voltage: 20V DC (provided by 3BHE009681R0101)
-
Cooling Method: Water or natural cooling
-
Operating Temperature: -40°C to +125°C (case)
-
Protection Rating: IP20
-
Dimensions: Approx. 100mm (L) × 50mm (W) × 30mm (H) (TO-247AB package)
-
Weight: Approx. 4kg
-
Certifications: CE, UL (cULus Listed), RoHS
-
Model Number (Gate Driver Unit): 3BHE009681R0101
-
Manufacturer: ABB Ltd.
-
Product Type: Gate Driver Unit (GDU)
-
Input Voltage: 24V DC (control circuit)
-
Gate Drive Voltage: 20V DC
-
Gate Peak Current: 7A
-
Turn-Off Time: <1μs
-
Operating Temperature: -40°C to +85°C
-
Protection Rating: IP20
-
Dimensions: Approx. 150mm (L) × 100mm (W) × 50mm (H) (panel-mounted)
-
Weight: Approx. 1kg
-
Certifications: CE, UL (cULus Listed)
Core Features & Customer Value
The 5SHY4045L0001 IGCT module offers high power density (4000A rated current) and fast switching (up to 1.6kHz), allowing it to handle high-power applications in a compact form factor. For customers, this reduces the number of parallel devices needed, simplifying the bill of materials and the physical layout of the power converter. The 3BHE009681R0101 GDU provides precise gate control, ensuring that the IGCT switches at the optimal time to minimize energy losses. Its built-in protection features, such as overcurrent and overvoltage safeguards, prevent damage to the IGCT module, reducing maintenance costs and downtime.
Together, the pairing offers reliable operation in harsh industrial environments. The 5SHY4045L0001’s rugged construction (withstanding -40°C to +125°C) and the 3BHE009681R0101’s wide operating temperature range (-40°C to +85°C) make them suitable for applications like steel mills, mining, and power transmission, where temperature extremes and vibration are common. The modular design of both products simplifies maintenance— the 5SHY4045L0001’s compact size allows easy replacement, and the 3BHE009681R0101’s plug-and-play design reduces installation time.
ABB 5SHY4045L0001 3BHE009681R0101
Typical Applications
The combination of 5SHY4045L0001 and 3BHE009681R0101 is widely used in:
-
Medium-Voltage Drives: Controlling large motors in industrial settings (e.g., steel rolling mills, cement plants) where high power and precise control are required.
-
Power Transmission: Used in flexible AC transmission systems (FACTS) and high-voltage direct current (HVDC) transmission links to regulate power flow and stabilize grids.
-
Industrial Automation: Powering automated production lines and robotic systems where reliable power conversion is critical.
-
Rail Traction: Used in locomotive and high-speed train traction systems to control motor speed and torque.
