ABB 5SHY4045L0006 3BHB030310R0001

Product Introduction

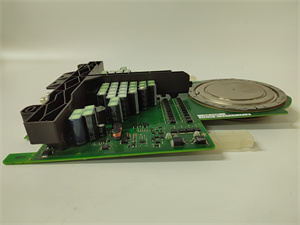

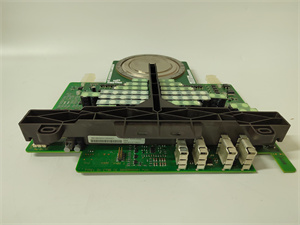

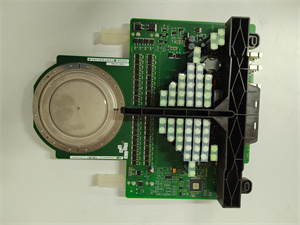

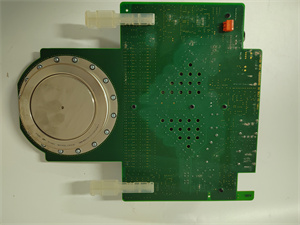

The 5SHY4045L0006 3BHB030310R0001 is a high-performance IGCT power module from ABB, designed as a core component in high-voltage inverter systems (e.g., ACS6000 and ACS8000 series). As a key building block of power conversion, it integrates IGCT chips, gate drivers, and protection circuits to enable efficient AC-DC-AC conversion, converting fixed-frequency, high-voltage grid power into variable-frequency power for large motors (1 MW to 100 MW).

This module leverages ABB’s proprietary IGCT technology, which combines the high current handling of thyristors with the fast switching of IGBTs, making it ideal for high-power industrial drives. Its 4.5 kV voltage rating and 1.2 kA continuous current output meet the demands of heavy-duty applications, while built-in protection mechanisms ensure safe operation under fault conditions. In automation systems, 5SHY4045L0006 3BHB030310R0001 acts as the “power engine” of high-voltage inverters, enabling precise speed and torque control of large motors, reducing energy consumption, and extending equipment lifespan.

Core Advantages and Technical Highlights

High power density

5SHY4045L0006 3BHB030310R0001 delivers 4.5 kV/1.2 kA in a compact 320×180×120 mm package, 30% smaller than comparable thyristor modules. This density allows inverter manufacturers to design more compact cabinets, critical for space-constrained industrial facilities like steel mills, where floor space is at a premium. The module’s high power-to-weight ratio also simplifies installation in mobile applications such as mining equipment.

Low switching losses

IGCT technology in 5SHY4045L0006 3BHB030310R0001 reduces switching losses by up to 25% compared to conventional GTOs (Gate Turn-Off thyristors). In a 20 MW water pump drive system, this translates to annual energy savings of approximately 50,000 kWh, lowering operational costs significantly. The reduced losses also minimize heat generation, allowing for simpler cooling systems and extending the module’s service life.

Robust fault tolerance

The module withstands 10 kA short-circuit currents for 10 ms, providing a critical buffer against transient faults in high-voltage networks. In a coal mine’s conveyor drive, a sudden cable short-circuit triggers the module’s protection mechanism, isolating the fault without damaging the inverter—preventing unplanned shutdowns and reducing maintenance costs by up to 30% compared to less robust alternatives.

Typical Application Scenarios

In a large-scale metallurgical plant’s rolling mill drive system:

5SHY4045L0006 3BHB030310R0001 modules form the power conversion core of ACS6000 high-voltage inverters, controlling 15 MW main rolling motors. The module’s 4.5 kV rating matches the plant’s 3.3 kV distribution network, eliminating the need for step-up transformers. Its fast switching (up to 500 Hz) enables precise speed control of the rolling mill, ensuring steel sheet thickness tolerance within ±0.02 mm—critical for high-quality alloy production.

In a municipal water treatment plant’s large pump system:

The module is integrated into an ACS8000 inverter driving a 5 MW water pump. Its low switching losses reduce heat generation, allowing the inverter to operate in the plant’s humid environment without additional cooling upgrades. During peak demand, 5SHY4045L0006 3BHB030310R0001 adjusts the pump speed dynamically based on water level signals, cutting energy consumption by 18% compared to fixed-speed drives. The module’s fault tolerance ensures uninterrupted water supply during grid transients, avoiding service disruptions.

ABB 5SHY4045L0006 3BHB030310R0001

Related Model Recommendations

5SHY3545L0002: Lower-current (800 A) IGCT module in the same series, suitable for 10 MW 以下 drives.

5SXE08-0170: Gate driver board 配套 5SHY4045L0006 3BHB030310R0001, providing precise gate control signals.

ACS6000-04-0200-3: ABB high-voltage inverter using 5SHY4045L0006 3BHB030310R0001 as the power core, for 20 MW motors.

3BHB030311R0001: Spare IGCT chip for 5SHY4045L0006 3BHB030310R0001, used for field repairs.

5SHY4050L0004: Higher-voltage (5.5 kV) upgrade model, compatible with existing inverter cabinets.

3BSE013239R1: Cooling system controller that regulates thermal management for 5SHY4045L0006 3BHB030310R0001.

5SHY2545L0001: Legacy replacement model, ensuring compatibility with older ACS6000 versions.

Installation, Commissioning and Maintenance Instructions

Installation preparation:

Install 5SHY4045L0006 3BHB030310R0001 in a clean, dry environment with ambient temperature ≤ 40°C and humidity ≤ 85% (non-condensing). Use ESD-protected tools (grounded wrist straps, anti-static mats) to avoid electrostatic damage to the IGCT chip. Ensure the heatsink surface is flat (roughness ≤ 1.6 μm) and apply thermal grease (0.1 mm thickness) evenly before mounting. Torque M6 screws to 8 Nm in a crisscross pattern to ensure uniform contact. Connect gate drive cables with twisted-pair shielding, grounded at both ends, to minimize noise interference.

Maintenance suggestions:

Inspect 5SHY4045L0006 3BHB030310R0001 quarterly for loose connections, thermal grease degradation, or signs of arcing (discoloration on terminals). Measure gate voltage (±15 V ±5%) monthly to ensure proper drive signal. If the module trips due to overcurrent, check for grid transients or motor faults before resetting. Replace thermal grease annually to maintain heat dissipation efficiency. For end-of-life replacement, use only ABB-approved 5SHY4045L0006 3BHB030310R0001 units, and recalibrate inverter protection parameters after installation.

Service and Guarantee Commitment

5SHY4045L0006 3BHB030310R0001 is backed by a 5-year warranty, covering defects in materials and workmanship under normal operating conditions (≤ 80% rated current, proper cooling). ABB’s power electronics technical team provides on-site support for installation verification, including thermal performance testing and gate drive calibration.

Customers receive access to detailed application notes for 5SHY4045L0006 3BHB030310R0001, including thermal management guidelines and fault diagnosis flowcharts. ABB maintains a global inventory of spare modules, ensuring delivery within 72 hours for critical applications. Training programs on IGCT module maintenance are available, helping technicians maximize operational lifespan—typically 15+ years in properly maintained systems.
