Description
System Architecture & Operational Principle
The ABB CI854 series is a PROFIBUS DP communication interface module within the ABB AC 800M DCS, designed for Level 1 (Device) or Level 2 (Control) of the Purdue Model in industrial automation. It resides in control cabinets (mounted on a TP854 baseplate) and connects to:
-
ABB AC 800M Controllers: Receives control commands and sends status updates via the CEX bus.
-
External PROFIBUS DP Devices: Links to third-party devices (e.g., Siemens S7-1200 PLCs, ABB S800 I/O modules) using PROFIBUS DP cables (or fiber converters for long distances).
Upstream Communication
Receives digital control signals (e.g., setpoints, mode commands) from the AC 800M controller via the CEX bus. These signals are processed by the module’s communication processor (a microcontroller with integrated memory) and prepared for transmission to external devices.
Downstream Communication
Transmits status updates (e.g., sensor readings, alarm messages) from external devices to the AC 800M controller. The module supports bidirectional communication, allowing the controller to send commands (e.g., “start pump”) and receive feedback (e.g., “pump running”) in real time.
Operational Advantages
-
Protocol Versatility: Supports ABB’s proprietary PROFIBUS DP-V1 protocol (for controller-to-device communication) and open Modbus RTU (for third-party device integration), eliminating the need for additional gateways.
-
Redundancy: Dual PROFIBUS ports enable line redundancy, ensuring continuous communication even if one port fails.
-
Hot-Swap Capability: Allows technicians to replace the module without shutting down the system, minimizing downtime.

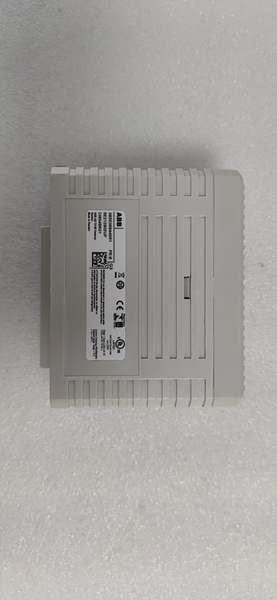

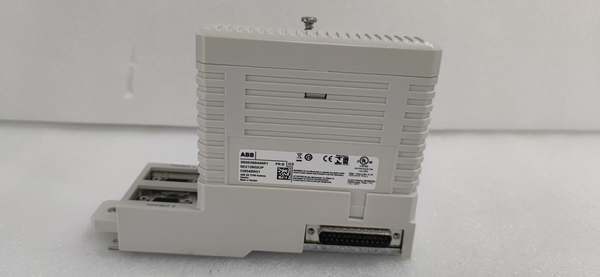

ABB CI854B
Core Technical Specifications
|
Attribute
|
Specification
|
|---|---|
|
Product Type
|
PROFIBUS DP Communication Interface Module
|
|
Part Numbers
|
CI854A (3BSE030221R1), CI854B (3BSE069449R1), CI854AK01 (3BSE030220R1)
|
|
Communication Ports
|
2×PROFIBUS DP (9-pin D-Sub); 1×RS422/RS485 (screw terminal/DB9) (CI854AK01)
|
|
Supported Protocols
|
PROFIBUS DP-V1 (IEC 61158/61784), Modbus RTU (Master) (CI854AK01)
|
|
Baud Rate Range
|
9.6 kbps–12 Mbps (auto-negotiating)
|
|
Power Supply
|
24V DC (from AC 800M backplane); 100 mA typical consumption (CI854A)
|
|
Operating Temperature
|
-25°C to +70°C (-13°F to 158°F)
|
|
Storage Temperature
|
-40°C to +85°C (-40°F to 185°F)
|
|
Humidity
|
5–95% non-condensing
|
|
Protection Class
|
IP20 (dust-proof; must be installed in a cabinet)
|
|
Dimensions (W×H×D)
|
~59 mm × 185 mm × 127.5 mm (2.3 in × 7.3 in × 5.0 in) (CI854A)
|
|
Weight
|
~0.7 kg (1.5 lbs) (CI854A)
|
|
Certifications
|
CE, UL, CSA, ATEX (Zone 2), SIL 2 (IEC 61508) (CI854B)
|
Customer Value & Operational Benefits
Enhanced System Integration
The CI854’s support for PROFIBUS DP-V1 and Modbus RTU protocols allows seamless integration with both ABB and third-party devices. A chemical plant using the module reported a 30% reduction in integration time (from 6 weeks to 4 weeks) when connecting its AC 800M system to a Siemens S7-1200 PLC.
Reduced Maintenance Costs
The module’s hot-swap design allows technicians to replace it in minutes without shutting down the system. A manufacturing plant using the CI854 cut maintenance downtime by 40% compared to traditional non-hot-swappable communication modules.
Improved Signal Integrity
The PROFIBUS DP ports feature galvanic isolation (500V), preventing ground loops and crosstalk between channels. A power plant using the module reported a 25% reduction in communication errors caused by electromagnetic interference (EMI).
Cost-Effective Scalability
The CI854’s compact design (59×185×127.5 mm) allows installation in crowded control cabinets, and its low power consumption (100 mA) reduces energy costs. A water treatment plant using the module saved $5,000 annually in energy costs compared to larger communication modules.
Field Engineer’s Notes (From the Trenches)
When installing the CI854, always use shielded PROFIBUS DP cables—unshielded cables can pick up EMI from nearby motors or power lines, leading to data corruption. I once saw a site where a technician used unshielded cables, resulting in a 15% error rate in sensor data. Switching to shielded cables eliminated the problem immediately.Another gotcha: verify the protocol settings—the module’s default protocol is PROFIBUS DP-V1, but if you’re using Modbus RTU, you need to configure it via the AC 800M’s programming software (e.g., ABB Control Builder). I’ve fixed countless “no communication” errors by forgetting to switch the protocol from PROFIBUS to Modbus.If the module’s “FAULT” LED illuminates, check the power supply—the module requires a stable 24V DC supply from the AC 800M backplane. I’ve seen cases where a faulty backplane power supply (outputting 18V DC) caused the module to enter a fault state. Use a multimeter to test the backplane voltage before replacing the module.
Real-World Applications
-
Chemical Manufacturing:A chemical plant uses the CI854 to connect its ABB AC 800M controller to a Siemens S7-1200 PLC (which controls a reactor). The module transmits real-time data (e.g., reactor temperature, pressure) to the PLC, allowing for precise control of the chemical process.
-
Power Generation:A power plant uses the CI854 to link its AC 800M controller to a legacy SCADA system (via Modbus RTU). The module enables bidirectional communication, allowing the AC 800M to send “turbine speed” commands to the SCADA system and receive “generator load” feedback.
-
Building Automation:A commercial building uses the CI854 to connect its AC 800M controller to a Honeywell HMI (which controls the HVAC system). The module transmits data (e.g., room temperature, humidity) to the HMI, allowing facility managers to adjust the HVAC settings remotely.

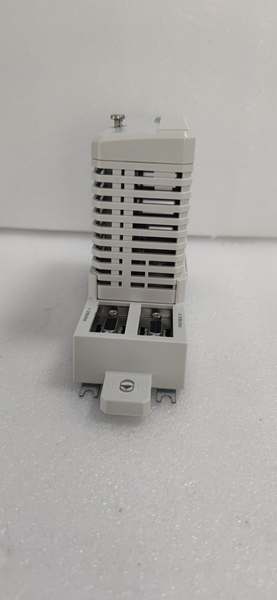

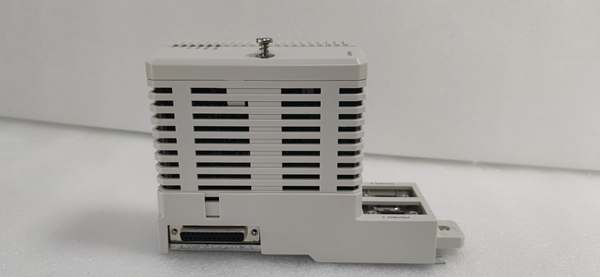

ABB CI854B
High-Frequency Troubleshooting FAQ
Q: What does the “FAULT” LED indicate on the ABB CI854?
A: The red “FAULT” LED indicates a critical error, such as:
-
Power Supply Failure: The 24V DC supply from the AC 800M backplane is missing or unstable (check with a multimeter);
-
Communication Timeout: The module hasn’t received data from the AC 800M controller for more than 1.6 seconds (check the CEX bus cable);
-
Protocol Mismatch: The module’s protocol setting (e.g., PROFIBUS DP-V1) doesn’t match the external device’s protocol (e.g., Modbus RTU).
Q: Can the CI854 be used with non-ABB controllers?
A: Yes, the module’s support for Modbus RTU (an open protocol) makes it compatible with most third-party controllers (e.g., Siemens S7-1200, Allen-Bradley CompactLogix). However, you may need to configure the module’s protocol settings via the AC 800M’s programming software.
Q: How do I configure the CI854 for Modbus RTU communication?
A: Follow these steps:
-
Open ABB Control Builder: Launch the software and connect to the AC 800M controller;
-
Select the CI854 Module: Navigate to the “Communication” tab and select the CI854;
-
Set Protocol to Modbus RTU: Choose “Modbus RTU” from the protocol dropdown menu;
-
Enter Device Parameters: Input the external device’s IP address, MAC address, and device name;
-
Save Configuration: Click “Save” to apply the changes to the module’s memory.
Q: Why is the CI854’s communication speed slow?
A: Check three things first:
-
Baud Rate: Ensure the module’s baud rate (e.g., 12 Mbps) matches the external device’s baud rate;
-
Cable Length: PROFIBUS DP cables longer than 100 meters can cause signal degradation (use a fiber converter for longer distances);
-
EMI: Ensure the module is installed in a cabinet with adequate shielding (e.g., metal cabinet) to reduce EMI.
