Description
Key Technical Specifications
-
Model Number: CP435T 1SBP260193R1001
-
Manufacturer: ABB
-
Processor: 32-bit RISC, 266 MHz
-
Memory: 64MB RAM, 128MB Flash
-
Integrated I/O: 16 digital inputs (24VDC sink/source), 16 digital outputs (24VDC sourcing, 0.5A)
-
Communication Ports: 2x Ethernet (10/100Mbps), 1x RS485 (Modbus RTU), 1x RS232 (ASCII)
-
Programming Support: IEC 61131-3 (LD, FBD, ST, SFC)
-
Operating Temperature: -20°C to +60°C
-
Power Supply: 24V DC (±10%, 15W max)
-
Isolation: 500Vrms (I/O-to-bus)
-
Dimensions: 110mm x 75mm x 60mm (WxHxD)
-
Weight: 0.18kg

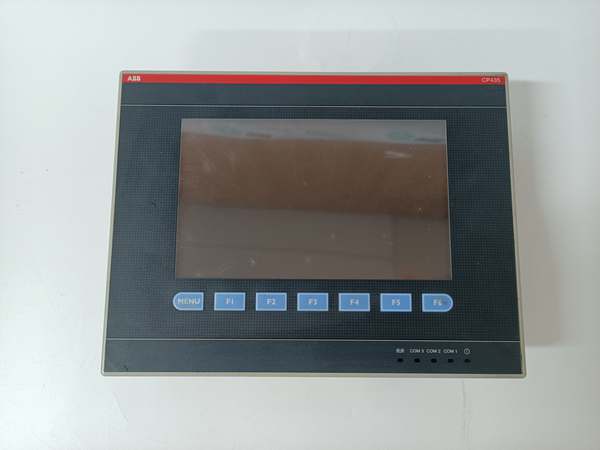

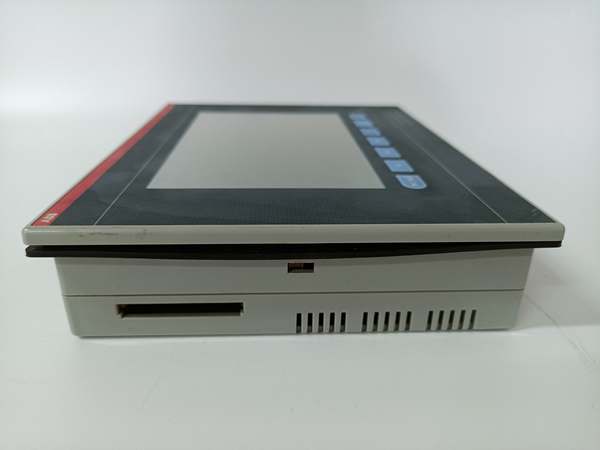

ABB CP435T 1SBP260193R1001
Field Application & Problem Solved
In the field, small automation systems—think packaging machine controls, pump station sequencing, or auxiliary refinery loops—often suffer from a mismatch: large PLCs waste cabinet space and cost too much, while basic controllers lack I/O and communication flexibility. This module solves that by packing 16 DI/16 DO, dual Ethernet, and serial ports into a brick-sized unit. You’ll find it in food plants running conveyor diverters, wastewater facilities managing lift stations, or paper mills controlling winder tension sensors. Its core value is consolidation: no need for separate I/O bases or communication adapters. For example, in a brewery’s bottling line, it handles bottle detection (DI), actuator triggers (DO), and talks to the HMI via Ethernet—all in one spot. The built-in diagnostics (input short, output overload) also cut troubleshooting time; in a recent mill job, it flagged a failed proximity sensor before the line jammed, saving 4 hours of downtime.
Installation & Maintenance Pitfalls (Expert Tips)
-
Undersizing Power Supply Margin: Rookies often wire it directly to a 24V supply with no buffer. Always add 20% headroom—use a 30W supply minimum. Voltage dips below 21.6V will cause erratic scans, especially with inductive loads.
-
Ignoring Ethernet Cable Quality: Cheap Cat5e cables in noisy areas (near VFDs) lead to CRC errors. Use shielded Cat6 with metal connectors, and keep runs under 100m. Terminate with T568B consistently.
-
Skipping Firmware/Project Compatibility Checks: Upgrading firmware without verifying project file compatibility (via Control Builder Plus) can brick the module. Backup first, then test on a bench unit.
-
Miswiring DI Polarity: The 16 inputs are sink/source configurable, but leaving them floating causes false triggers. Jumper unused inputs to 24V or 0V, and label sink vs. source circuits clearly.
-
Neglecting RS485 Termination: On Modbus RTU networks, forgetting the 120Ω resistor at both ends (or just one) causes data corruption. Use the module’s onboard switch to enable termination if needed.

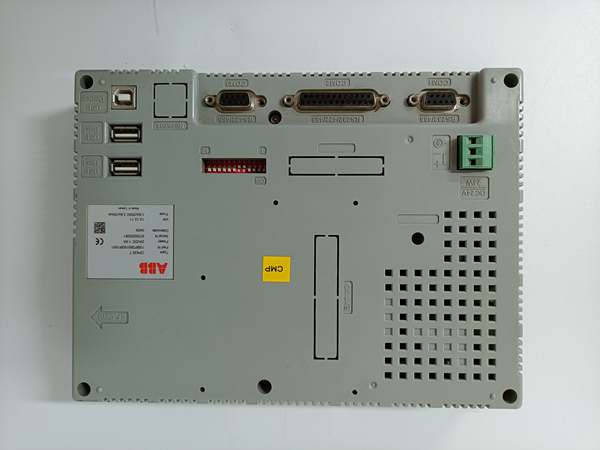

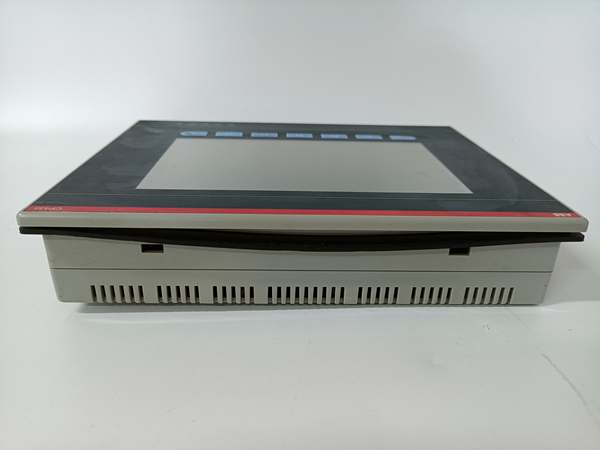

ABB CP435T 1SBP260193R1001
Technical Deep Dive & Overview
The CP435T 1SBP260193R1001 is a compact CPU module in ABB’s AC500 family, designed as a self-contained controller for small-scale automation. It integrates a 32-bit RISC processor running at 266 MHz, with 64MB RAM for runtime logic and 128MB Flash for program storage. The 16 DI/16 DO are software-configurable for sink/source operation, handling everything from pushbuttons to solenoid valves. Communication is handled via two Ethernet ports (for HMI, SCADA, or peer-to-peer messaging) and one RS485 (Modbus RTU master/slave) plus RS232 (legacy ASCII devices). It executes IEC 61131-3 code directly, with cycle times as low as 1ms for simple logic. The 500Vrms isolation between I/O and the internal bus prevents ground loops in dusty or wet environments (e.g., refineries). Mounted on a DIN rail, it draws power from the 24VDC supply and communicates with expansion I/O via the AC500 bus. In short, it’s a “do-it-all” controller for jobs where big PLCs are overkill—reliable, compact, and smart enough to handle most small-machine challenges.
