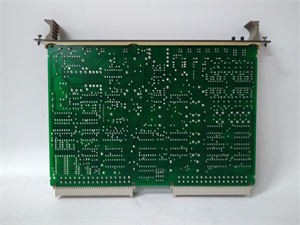

ABB CSA464AE

Description

ABB CSA464AE

Product introduction

The CSA464AE is a high-precision analog output module from ABB, designed to bridge industrial control systems and field actuators in process automation. As a key component of ABB’s Advant OCS and Symphony Plus ecosystems, it converts digital control signals from PLCs or DCS controllers into accurate analog outputs to drive valves, dampers, and variable speed drives.

Each of the CSA464AE’s four channels can be independently configured for current (4-20 mA, 0-20 mA) or voltage (0-10 VDC) signals, providing flexibility for diverse actuator types. In chemical processing plants, this module ensures precise control of flow control valves by maintaining output accuracy within ±0.1% of setpoint, directly impacting product consistency. Its robust isolation and conformal coating make it suitable for electrically noisy environments, ensuring reliable operation in refineries, power plants, and manufacturing facilities.

Core advantages and technical highlights

Multi-signal flexibility: Each channel of the CSA464AE can be programmed for different signal types without hardware changes. In a water treatment plant, two channels drive 4-20 mA diaphragm valves while the other two control 0-10 VDC variable frequency drives for pumps, eliminating the need for multiple module types and reducing inventory costs by 30%.

High isolation performance: With 2.5 kVAC channel-to-channel isolation, the CSA464AE prevents ground loops and cross-talk in complex systems. A pulp mill reported a 90% reduction in signal interference after replacing legacy modules with the CSA464AE, resolving chronic valve hunting issues in their bleaching process.

Precision under varying conditions: The module maintains ±0.1% accuracy across -25°C to +60°C, outperforming industry standards. In a desert-based solar power plant, where ambient temperatures fluctuate by 50°C daily, the CSA464AE consistently controls heliostat positioning actuators, ensuring optimal sunlight capture with minimal energy loss.

Fast response time: A 10 ms update rate allows the CSA464AE to quickly adjust outputs to changing control demands. In a high-speed bottling line, this responsiveness enables immediate correction of filling valve positions, reducing product waste by 15% compared to slower modules.

Typical application scenarios

Chemical processing: In a batch reactor system, the CSA464AE controls heating elements and stirring motors via 4-20 mA signals. It adjusts the heater output based on temperature feedback, maintaining reactor temperatures within ±0.5°C of setpoint—critical for pharmaceutical synthesis. The module’s isolation protects sensitive control systems from ground potentials generated by large heating elements.

Power generation: Within a combined cycle power plant, the CSA464AE regulates gas turbine fuel valves and steam turbine governor valves. Its 0-10 VDC outputs precisely control valve positioners, ensuring smooth transitions between load demands. During grid frequency fluctuations, the module’s fast update rate enables rapid fuel adjustments, helping the plant meet grid code response requirements.

Food and beverage production: In a dairy processing facility, the CSA464AE manages flow control valves for milk pasteurization. It converts PLC setpoints into 4-20 mA signals for valve actuators, maintaining flow rates within ±1% of target to ensure consistent heat treatment. The module’s conformal coating resists moisture in washdown areas, extending service life in humid environments.

ABB CSA464AE

Related model recommendations

CSA462AE: 2-channel variant of the CSA464AE, ideal for applications requiring fewer outputs, such as small-scale batch systems.

CSA468AE: 8-channel analog output module, offering higher density for large-scale plants needing multiple actuators, like water treatment facilities with numerous valves.

CI854A: Profibus DP communication module that pairs with the CSA464AE to extend control system connectivity in distributed installations.

AI810: Analog input module from ABB, complementing the CSA464AE in closed-loop control systems by providing feedback signals to the controller.

DO820: Digital output module, used alongside the CSA464AE to control discrete devices (e.g., solenoid valves) while the latter handles analog actuators.

PM864K01: ABB’s PLC controller that integrates seamlessly with the CSA464AE, forming a complete control solution for mid-sized automation projects.

Installation, commissioning and maintenance instructions

Installation preparation: Mount the CSA464AE on a grounded 35mm DIN rail in a control cabinet, ensuring 50mm clearance on all sides for airflow. Use shielded twisted-pair cables (0.5mm²) for output connections, with shields grounded at both ends to minimize EMI. Verify the 24 VDC power supply has ripple <50mV and connect via the module’s terminal block, observing correct polarity. Label all channels clearly to match corresponding actuators.

Maintenance suggestions: Inspect quarterly for loose terminals and dust buildup—clean with a dry cloth. Annually calibrate outputs using a precision multimeter and signal generator, adjusting via ABB’s Control Builder software if drift exceeds ±0.2%. Check isolation resistance (minimum 100 MΩ at 500 VDC) every 2 years. For erratic outputs, verify power supply stability and replace channel fuses (ABB part 3HAC028356-001) if blown. Update firmware via ABB’s Service Tool to address compatibility issues with newer controllers.

Service and guarantee commitment

ABB backs the CSA464AE with a 3-year warranty covering manufacturing defects. During this period, ABB provides free replacement of faulty units and 24/7 technical support via its global engineering team, with average response times under 3 hours for critical issues.

Customers gain access to online resources including calibration guides, wiring diagrams, and software tools through ABB’s Customer Portal. Optional services include on-site commissioning with ISO 9001-certified calibration and operator training. ABB guarantees spare parts availability for 10 years post-production, ensuring long-term support for industrial control systems. This commitment reflects confidence in the CSA464AE’s durability and ABB’s dedication to minimizing process downtime.
