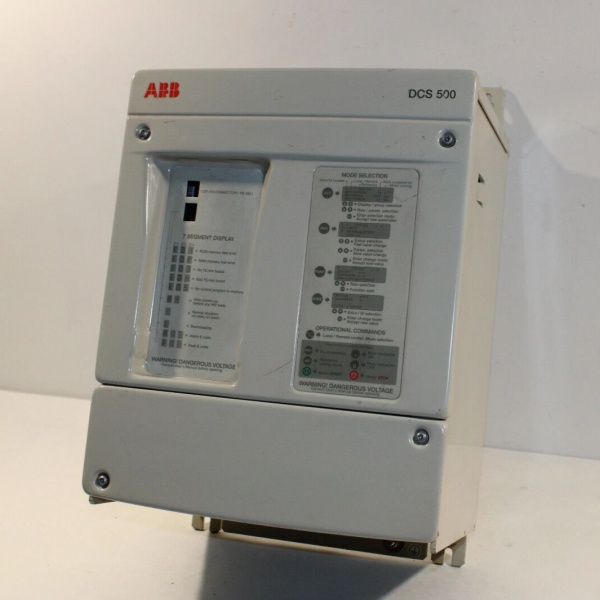

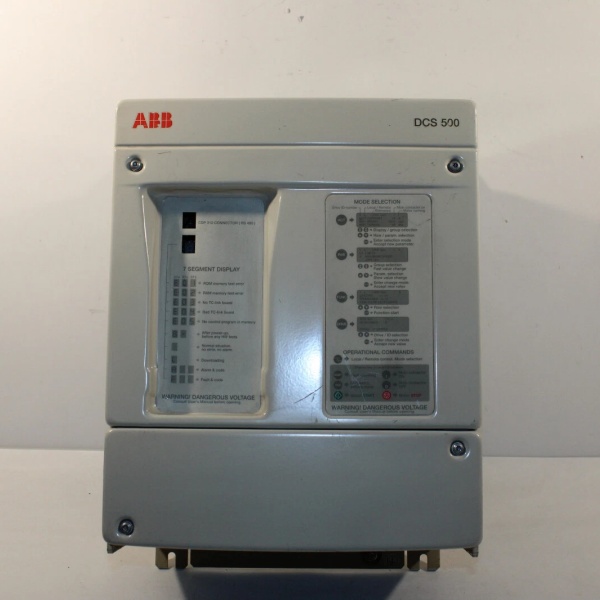

ABB DCS501B0520 41021P0000 | DCS500B Series DC Speed Controller

  • Brand: ABB
  • Model: DCS501B0520 41021P0000
  • Product Type: DC Speed Controller (DC Drive)
  • Series: DCS500B
  • Core Function: Provides precise speed and torque control for DC motors; converts AC to DC power for motor operation.
  • Key Specs: 520A output current, 3-phase 230-1000V AC input.
Get a Quote
Manufacturer:
Part number: ABB DCS501B0520 41021P0000
Our extensive catalogue, including : ABB DCS501B0520 41021P0000 , is available now for dispatch to the worldwide.

Description

DCS501B0520 41021P0000: Product Overview
This unit is a digital DC speed controller belonging to ABB’s DCS500B series, designed for regulating the speed and torque of industrial DC motors. In an automation system, it functions as a power conversion and control stage, typically interfaced with a higher-level PLC or DCS that provides the setpoints and receives status feedback. The drive accepts a three-phase AC supply, rectifies it to DC using thyristors (SCRs), and then regulates the DC output to the motor armature. It also manages the field winding supply.
The core functionality involves processing speed or torque references, comparing them with feedback signals from encoders or tachogenerators, and adjusting the SCR firing angle to maintain the desired motor performance. It handles analog and digital I/O for commands and status, and incorporates protection algorithms for motor and drive safety. The control algorithms include PID regulators to optimize dynamic response and stability.
It belongs to the DCS500B product family, which is known for its robust industrial design, comprehensive diagnostics, and global support network. The platform’s benefits include a modular structure that simplifies maintenance, a wide range of power ratings for scalability, and compatibility with ABB’s engineering tools for configuration and monitoring. This standardization allows for reduced commissioning time and a large installed base for reference.

ABB DCS501B0520 41021P0000

ABB DCS501B0520 41021P0000

DCS501B0520 41021P0000: Technical Specifications
  • Model Number: DCS501B0520 41021P0000
  • Manufacturer: ABB
  • Product Type: SCR-Based DC Speed Controller
  • Input Voltage: 230-1000V AC, 3-phase
  • Output Current: 520A
  • Control Mode: Speed control, Torque control
  • Feedback Options: Encoder, Tachometer (tacho), Armature voltage
  • Protection Features: Overcurrent, Overvoltage, Undervoltage, Overtemperature, Field loss
  • Communication: RS485 (Modbus RTU), optional Profibus DP
  • Operating Temperature: 0°C to +40°C
  • Cooling Method: Forced air (internal fan)
  • Regenerative Braking: Supported
  • Field Supply Output: 180V DC / 8A (nominal)
Core Features & Customer Value
The design of this DC drive focuses on delivering precise motor control and operational safety. The ability to operate in both speed and torque control modes provides flexibility for different applications. For instance, in a winding application, torque control maintains constant tension, while in a conveyor system, speed control ensures consistent material flow. The integrated PID control loops allow for fine-tuning of the system response, reducing overshoot and settling time, which is critical for maintaining process quality.
Robust protection mechanisms are a key feature. The drive continuously monitors for abnormal conditions such as overcurrent, which could indicate a short circuit, or field loss, which would cause uncontrolled motor acceleration. Upon detection, it will trip and alarm, preventing damage to the motor and drive. This predictive safeguarding minimizes unplanned downtime and repair costs. The regenerative braking capability allows kinetic energy from decelerating loads to be returned to the supply, improving overall system efficiency.
The inclusion of communication interfaces like RS485 facilitates integration into modern automation architectures. Engineers can connect the drive to a PLC or SCADA system for remote parameter adjustment, status monitoring, and data logging. This reduces the need for manual intervention at the drive’s local control panel, streamlining operations. The use of thyristor technology provides a reliable and efficient method for power conversion, suitable for the demanding environments of heavy industry.

ABB DCS501B0520 41021P0000

ABB DCS501B0520 41021P0000

Typical Applications
In a steel rolling mill, the drive is used to control the main motors for the roller tables. The precise speed control is necessary to achieve the correct profile and thickness of the rolled steel as it passes through successive stands. The drive’s high current capacity handles the significant torque required for this heavy-duty application.
For a container crane in a port, the unit controls the hoisting and trolley motors. Speed control is used for smooth acceleration and deceleration to prevent load sway, while torque control can be applied for delicate lifting operations. The drive’s rugged construction withstands the vibrations and electrical disturbances common in such an environment.
In a paper processing plant, the drive manages the dryer section’s main motor. It must maintain a constant speed to ensure uniform drying and paper tension. The drive’s feedback options allow it to compensate for speed variations caused by changing roll weights, ensuring consistent product quality.
