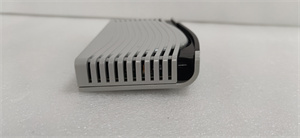

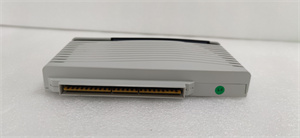

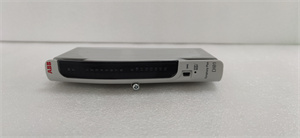

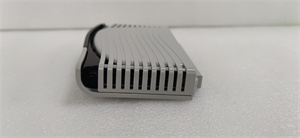

ABB DI01

Product introduction

The ABB DI01 is a compact, high-reliability digital input module designed to interface industrial sensors and switches with control systems such as PLCs and DCS. As a key component in ABB’s distributed I/O portfolio, the DI01 converts physical on/off signals from field devices—like limit switches, pushbuttons, and proximity sensors—into digital data for processing.

This 8-channel module offers flexible input configuration, supporting both dry contacts (mechanical switches) and electronic sensors (NPN/PNP), eliminating the need for hardware modifications during system upgrades. In automation setups, the DI01 acts as a critical data acquisition point, ensuring accurate signal transmission even in noisy electrical environments. Its rugged design and wide temperature tolerance make it suitable for industries ranging from automotive manufacturing to wastewater treatment, where reliable input monitoring is essential for process efficiency and safety.

Core advantages and technical highlights

Flexible input compatibility: The DI01’s configurable input type (via DIP switches) allows seamless integration with existing field devices. Whether connecting old mechanical limit switches in a legacy conveyor system or new PNP photoelectric sensors in a robotic cell, the module adapts without rewiring. This versatility reduces inventory costs, as one module replaces multiple specialized units. For example, in a food processing plant upgrading from mechanical to electronic sensors, the DI01 works with both, avoiding downtime during the transition.

Lightning-fast response: With a response time of ≤1 ms, the DI01 captures rapid signal changes critical in high-speed applications. In a bottling line, it detects a jammed bottle via a proximity sensor and alerts the PLC in under a millisecond, triggering an immediate stop to prevent product damage. This speed outperforms many competing modules (typically 2-5 ms), making it ideal for time-sensitive processes.

Robust isolation: The DI01’s 2.5 kVAC channel-to-bus isolation protects control systems from voltage spikes in industrial environments. In a steel mill, where welding equipment generates electrical noise, this isolation prevents false triggers from transient voltages, ensuring accurate detection of genuine sensor signals. Channel-to-channel isolation (500 VAC) further eliminates cross-talk between signals, even when multiple channels switch simultaneously.

Space-efficient design: Measuring just 100 mm x 80 mm x 65 mm, the DI01 maximizes I/O density in crowded control cabinets. In a compact packaging machine control panel with dozens of sensors, the module’s small footprint frees up space for other components. Spring clamp terminals speed up wiring, reducing installation time by 40% compared to screw-terminal modules—critical in high-volume system builds.

Typical application scenarios

Automotive assembly: In a car body welding shop, the DI01 monitors 8 robotic weld gun position sensors. Each sensor sends a signal when the gun reaches the correct position, and the DI01 relays these to the PLC. The module’s fast response ensures the PLC triggers welding only when all guns are aligned, preventing misfires and reducing rework. Its wide temperature range (up to 70°C) handles the heat generated by welding transformers.

Water treatment plants: Installed in outdoor pump stations, the DI01 connects to float switches in chemical tanks and pressure switch contacts. It detects low chemical levels or high pipeline pressure, sending signals to the PLC to trigger alarms or shut down pumps. The module’s resistance to moisture and vibration ensures reliable operation in unconditioned enclosures, even during heavy rain or pump startup.

Warehouse automation: In an automated storage and retrieval system (AS/RS), the DI01 tracks pallet presence via 8 photoelectric sensors. As pallets move between racks, the module detects their position and sends data to the PLC, which adjusts conveyor speeds to prevent collisions. The DI01’s immunity to electrical noise from nearby motors ensures accurate detection, even when multiple sensors activate simultaneously during peak operation.

ABB DI01

Related model recommendations

DO01: ABB’s 8-channel digital output module, designed to pair with the DI01 for complete I/O solutions. While the DI01 collects input signals, the DO01 controls actuators like solenoid valves and indicator lights.

AI01: An 8-channel analog input module that complements the DI01 in mixed-signal systems. For example, in a temperature-controlled oven, the DI01 monitors door open/close status, while the AI01 measures internal temperature.

AC500 PLC: ABB’s modular PLC system that integrates seamlessly with the DI01, processing digital inputs to execute control logic. In a bottling line, the PLC uses DI01 data to coordinate filling, capping, and labeling stations.

TB01: A surge protection terminal block accessory for the DI01, shielding inputs from lightning-induced voltage spikes in outdoor applications like wastewater pump stations.

DI02: A 16-channel variant of the DI01, ideal for large-scale systems requiring more input points, such as a semiconductor cleanroom with dozens of equipment interlocks.

CI854A: ABB’s Profibus DP communication module, which connects the DI01 to distributed control systems, enabling remote monitoring of input status in plant-wide automation networks.

Installation, commissioning and maintenance instructions

Installation preparation: Before installing the DI01, ensure the DIN rail is clean, grounded, and securely mounted. Use ESD-safe tools and anti-static wristbands to prevent damage to internal components. Configure input type (dry contact/NPN/PNP) via DIP switches before wiring—settings take effect on power-up. Connect field wires (0.5-1.5 mm²) to spring clamp terminals, ensuring proper polarity for electronic sensors. Separate input wiring from power cables to minimize noise, and allow 20 mm clearance for ventilation.

Maintenance suggestions: Inspect the DI01 quarterly for loose terminals or corrosion, especially in humid environments. Clean dust with compressed air (max 5 bar) to maintain cooling. Test channels annually using a 24 VDC test switch; replace the module if any channel fails to respond. For communication issues, check terminal connections and verify isolation integrity with a megohmmeter (≥100 MΩ at 500 VDC). Use genuine ABB spare parts for replacements to ensure compatibility and protection ratings.

Service and guarantee commitment

ABB backs the DI01 with a 3-year warranty covering defects in materials and workmanship, including free replacement of faulty modules. Customers gain access to ABB’s global technical support network, available 24/7 for troubleshooting via phone, email, or online chat.

ABB’s online portal provides downloadable manuals, wiring diagrams, and configuration guides to streamline installation. For industrial clients, optional on-site commissioning services ensure optimal integration with control systems. Spare parts are guaranteed for 7 years post-production, minimizing long-term maintenance disruptions. This commitment reflects ABB’s confidence in the DI01’s reliability and its dedication to maximizing customer uptime in critical automation applications.
