DO810 3BSE008510R1

Product introduction

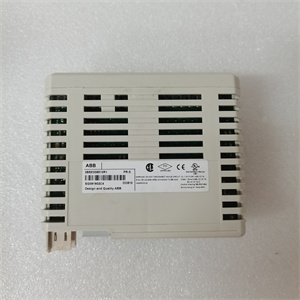

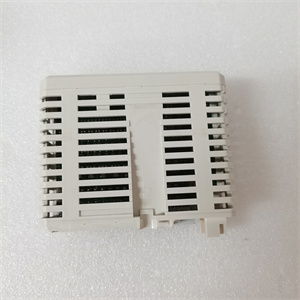

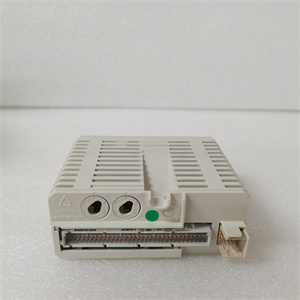

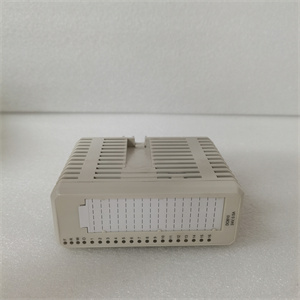

The ABB D0810 3BSE008510R1 is a robust digital output module designed for industrial automation systems, part of ABB’s S800 I/O family renowned for seamless integration with AC 800M controllers. This module serves as a critical interface between control systems and external devices, converting digital control signals into physical actions by switching power to actuators, valves, alarms, and other field equipment.

ABB D0810 3BSE008510R1 features 8 isolated relay outputs, each with changeover contacts (1 normally open + 1 normally closed), providing versatile control options for diverse industrial applications. Its ability to handle both AC and DC loads up to 5 A makes it suitable for switching motors, solenoids, indicator lights, and heating elements. Whether deployed in manufacturing, process control, or infrastructure projects, ABB D0810 3BSE008510R1 ensures reliable signal transmission, enhancing system responsiveness and operational safety.

Core advantages and technical highlights

Enhanced isolation protection: ABB D0810 3BSE008510R1 incorporates 2.5 kV AC isolation between channels and from channels to the backplane, eliminating cross-talk and protecting sensitive control systems from voltage spikes, ground loops, and electromagnetic interference (EMI). This isolation is critical in harsh industrial environments with high electrical noise, such as near large motors or welding equipment.

Flexible load compatibility: Unlike solid-state output modules limited to specific voltage types, ABB D0810 3BSE008510R1’s relay contacts support both AC (up to 250 V) and DC (up to 30 V) loads, making it compatible with diverse field devices. This versatility eliminates the need for multiple module types, reducing inventory costs and simplifying system design for mixed-load applications.

Robust contact design: The module’s relays feature silver-alloy contacts rated for 5 A resistive load, ensuring a mechanical lifespan of up to 10 million operations and electrical lifespan of up to 100,000 operations at full load. This durability reduces maintenance frequency and minimizes downtime in high-cycle applications, such as packaging lines or material handling systems.

Seamless system integration: ABB D0810 3BSE008510R1 is engineered for plug-and-play compatibility with ABB’s AC 800M controllers and S800 I/O racks, featuring standardized connectors that simplify installation. The module is automatically recognized by ABB’s Control Builder M software, reducing configuration time during commissioning and ensuring consistent system performance.

Typical application scenarios

In automotive assembly plants, ABB D0810 3BSE008510R1 controls solenoid valves in robotic welding stations, switching compressed air to actuate clamping mechanisms. Its changeover contacts allow simultaneous control of the valve and monitoring of its status via the normally closed contact, enabling immediate fault detection if the valve fails to operate. The module’s isolation protects the robot controller from electrical noise generated by welding transformers.

Within water treatment facilities, ABB D0810 3BSE008510R1 switches submersible pump motors and chemical dosing pumps, regulating water flow and reagent injection. Its ability to handle 5 A loads ensures compatibility with small pumps, while its wide operating temperature range (-40°C to +70°C) allows installation in outdoor pump stations or indoor control rooms. The relay contacts’ resistance to moisture-related corrosion ensures reliable operation in humid environments.

In food and beverage processing, ABB D0810 3BSE008510R1 controls conveyor belt motors, heating elements, and alarm lights in packaging lines. Its relay outputs safely switch 230 V AC heating elements for shrink wrapping, while the normally closed contacts integrate with emergency stop circuits to disconnect power during safety incidents. The module’s robust design withstands temperature fluctuations near refrigeration units and washdown areas.

DO810 3BSE008510R1

Related model recommendations

ABB DI810 3BSE008508R1: Digital input module that complements ABB D0810 3BSE008510R1, providing 8 channels for connecting sensors, limit switches, and emergency stops.

ABB AO810 3BSE008512R1: Analog output module paired with ABB D0810 3BSE008510R1, offering 4 channels for 4-20 mA or 0-10 V control signals to variable speed drives and proportional valves.

ABB PM864K01: Mid-range AC 800M controller that works seamlessly with ABB D0810 3BSE008510R1 in medium-scale automation systems.

ABB TB820 3BSE008546R1: Terminal base for ABB D0810 3BSE008510R1, providing secure wiring connections and mechanical support in S800 I/O racks.

ABB D0805 3BSE008509R1: 8-channel digital output module with solid-state contacts, offering faster switching than ABB D0810 3BSE008510R1 for high-speed applications.

ABB CI854 3BSE022449R1: Communication module that enables ABB D0810 3BSE008510R1 to integrate with PROFINET networks, enabling remote monitoring of output status.

ABB 800xA I/O Configuration Tool: Software suite for configuring channel assignments, diagnostics, and interlock logic for ABB D0810 3BSE008510R1.

Installation, commissioning and maintenance instructions

Installation preparation: Before installing ABB D0810 3BSE008510R1, ensure the DIN rail or S800 I/O rack is securely mounted in a dust-free enclosure with ambient temperature between -40°C and +70°C. Required tools include a torque wrench (set to 0.5 Nm for terminal connections), screwdrivers, and wire strippers. Use twisted-pair cables for control signals to minimize EMI, and route power wiring separately from signal wiring. Verify that the 24 V DC power supply is properly grounded and protected by a 1A fuse. Allow 20 mm clearance around the module for ventilation.

Maintenance suggestions: For ABB D0810 3BSE008510R1, perform quarterly visual inspections to check for loose connections, damaged terminals, or signs of overheating (discoloration). Clean dust from ventilation slots using compressed air (max 5 bar) annually. Test relay contacts periodically using a multimeter—high resistance or intermittent continuity indicates worn contacts that require module replacement. Document relay operation cycles to predict maintenance needs, as electrical lifespan decreases with higher loads. When replacing ABB D0810 3BSE008510R1, use ABB’s configuration software to transfer channel settings, ensuring consistency with the rest of the system.

Service and guarantee commitment

ABB D0810 3BSE008510R1 is backed by a 3-year warranty from the date of purchase, covering manufacturing defects and performance issues under normal operating conditions. ABB’s technical support team provides 24/7 assistance, with specialists available to help with configuration, troubleshooting, and system integration.

We offer on-site commissioning services for ABB D0810 3BSE008510R1, including wiring verification, contact testing, and integration with AC 800M controllers. Extended warranty options up to 5 years are available, including annual preventive maintenance checks. In the event of a fault, ABB guarantees a 48-hour repair turnaround at regional service centers, with replacement modules available for next-day delivery to minimize downtime. All repairs use genuine ABB components, ensuring ABB D0810 3BSE008510R1 maintains its original isolation ratings and contact performance.
