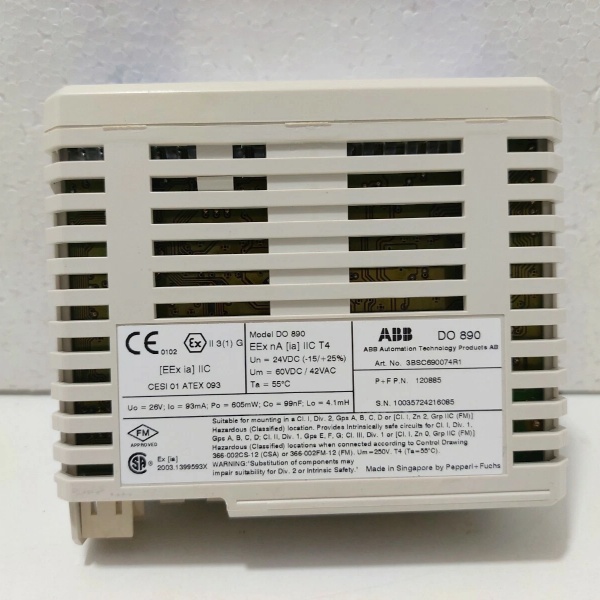

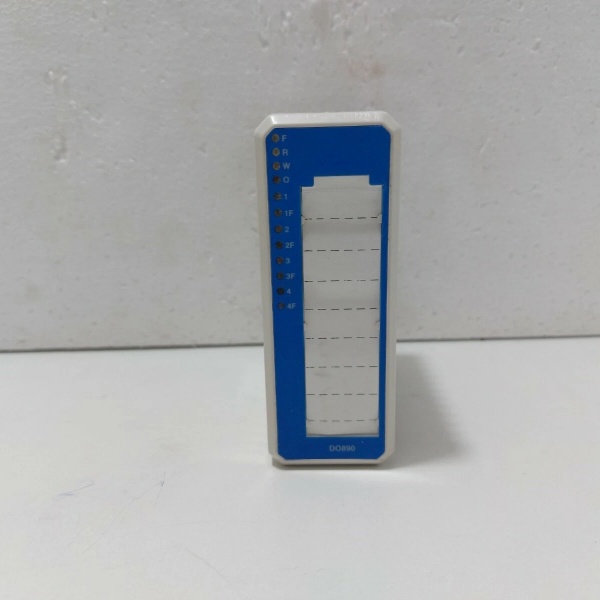

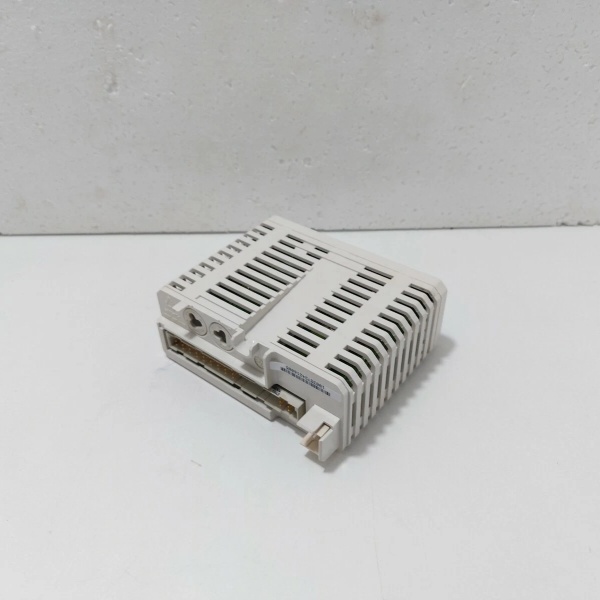

ABB DO890 3BSC690074R1 | S800 High Integrity Digital Output Module

  • Brand: ABB
  • Model: DO890 3BSC690074R1
  • Product Type: Digital Output Module
  • Series: S800 I/O (Advant Series)
  • Core Function: Provides 16 isolated relay contacts for switching field devices; designed for high-integrity applications.
  • Key Specs: 16-channel relay output, 2A per channel, channel-to-channel isolation.
Get a Quote
Manufacturer:
Part number: ABB DO890 3BSC690074R1
Our extensive catalogue, including : ABB DO890 3BSC690074R1 , is available now for dispatch to the worldwide.

Description

DO890 3BSC690074R1: Product Overview
This digital output module occupies a critical role within ABB’s S800 I/O system, which is commonly integrated into the Advant OCS and System 800xA distributed control and safety platforms. As a high-integrity component, it is engineered for applications demanding fail-safe operation, including safety instrumented systems (SIS) that meet stringent international standards. Its primary function is to execute discrete control commands from the central controller by switching external electrical circuits. It handles binary signals, turning field devices such as solenoid valves, motor starters, and indicator lights on or off based on the processed logic.
The module’s core functionality involves receiving low-energy signals from the I/O bus and using them to energize or de-energize internal electromechanical relays. These relays provide galvanic isolation between the control system and the potentially harsh electrical environment of the field. The module is designed to perform this switching reliably under demanding conditions, with diagnostics to detect wiring faults like open circuits.
Belonging to the S800 I/O family, this module benefits from a distributed architecture. This allows I/O cabinets to be located close to field instruments, which minimizes cable runs and improves signal quality. The platform’s common design philosophy ensures mechanical and electrical compatibility across a wide range of I/O types, simplifying system integration, configuration, and maintenance for engineers.

ABB DO890 3BSC690074R1

ABB DO890 3BSC690074R1

DO890 3BSC690074R1: Technical Specifications
  • Model Number: DO890 3BSC690074R1
  • Manufacturer: ABB
  • Product Type: 16-Channel Digital Output Module
  • Number of Channels: 16
  • Output Type: Electromechanical Relay (SPST, Form A)
  • Contact Rating: 2 A at 24 VDC or 220 VAC
  • Operating Voltage: 24 VDC (nominal)
  • Isolation: Channel-to-channel and channel-to-bus
  • Diagnostics: Open circuit detection, wire-break detection
  • Power Dissipation: Approximately 2.5 W
  • Operating Temperature: 0°C to +55°C
  • Mounting: S800 I/O station baseplate (e.g., TU890)
  • Weight: Approximately 0.3 kg
Core Features & Customer Value
High-integrity design: This module is part of ABB’s high-integrity I/O portfolio, making it suitable for safety-related functions. For the end user, this means the module can be incorporated into safety instrumented functions (SIFs) that contribute to overall plant safety, helping to meet requirements for Safety Integrity Levels (SIL). The robust design ensures reliable operation in critical applications.
Electromechanical relay outputs: The use of relay contacts provides versatility in switching a wide range of DC and AC loads. For the engineer, this eliminates the need for intermediate relays for many applications, simplifying panel design. The contacts are also well-suited for switching inductive loads common in valve and actuator control.
Channel-to-channel isolation: Each output channel is electrically isolated from the others. This prevents a fault, such as a short circuit on one channel, from propagating to adjacent channels. The practical benefit is increased system availability; a single channel failure is less likely to cause a cascade of failures in the I/O rack.
Advanced diagnostics: The module incorporates circuitry to detect open circuits and wire breaks on the output side. When a fault is detected, a status flag is sent to the controller. This proactive monitoring allows maintenance personnel to identify and rectify issues before they lead to a loss of control, thereby enhancing system reliability.

ABB DO890 3BSC690074R1

ABB DO890 3BSC690074R1

Typical Applications
In the oil and gas industry, this module is frequently employed in emergency shutdown (ESD) systems on offshore platforms. It is used to actuate shutdown valves and de-energize equipment when a dangerous condition is detected, isolating sections of the process to prevent escalation.
Within power generation facilities, the module finds application in burner management systems (BMS). It is used to control fuel shutoff valves and igniter circuits, ensuring safe startup, operation, and shutdown sequences for boilers.
In chemical and petrochemical plants, it is integrated into safety instrumented systems to perform critical interlocks. For example, it might be used to stop a feed pump and close associated block valves if a reactor temperature exceeds a predefined limit, mitigating the risk of a runaway reaction.
