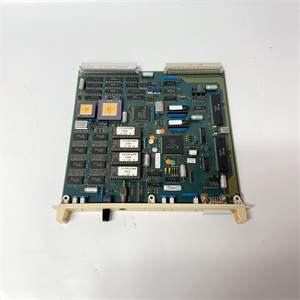

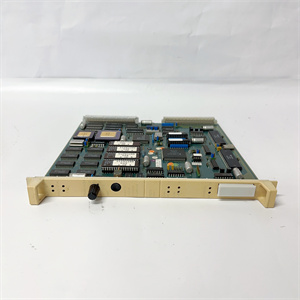

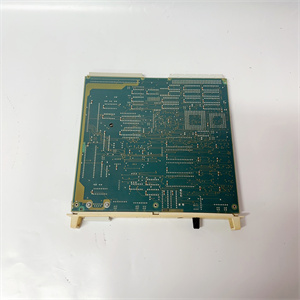

ABB DSCA190V 57310001-PK

Product introduction

The ABB DSCA190V 57310001-PK is a high-precision analog input module designed for integration into ABB’s Advant Controller series, serving as a critical link between analog field devices and the control system. This module is engineered to accurately convert continuous physical quantities—such as temperature, pressure, flow, and level—into digital data that the controller can process for precise industrial automation.

Featuring 8 differential channels with configurable input types, the ABB DSCA190V 57310001-PK offers exceptional versatility for diverse process monitoring applications. Its 16-bit resolution and high accuracy ensure that even subtle changes in process variables are captured, providing the detailed data needed for optimal control. As a key component of Advant Controller systems, the ABB DSCA190V 57310001-PK enables seamless data acquisition, supporting informed decision-making and enhancing the efficiency of industrial processes.

Core advantages and technical highlights

Superior measurement accuracy: The ABB DSCA190V 57310001-PK delivers ±0.1% full-scale accuracy at 25°C, with 16-bit resolution ensuring precise capture of small signal variations. This level of precision is critical in applications like chemical batch processing, where maintaining exact pressure or temperature levels directly impacts product quality and reaction efficiency. Even in varying environmental conditions, the module’s stable performance minimizes measurement drift, reducing the need for frequent recalibration.

Flexible signal handling: With configurable input types (4-20 mA, 0-10 VDC, etc.) on a per-channel basis, the ABB DSCA190V 57310001-PK eliminates the need for multiple specialized modules. A single unit can connect to pressure transmitters (4-20 mA), temperature sensors (via transmitters), and level transducers (0-10 VDC), simplifying system design and reducing inventory costs. This flexibility makes it ideal for retrofits, where legacy and modern sensors often coexist.

Robust isolation: Equipped with 2500 VAC isolation between channels and the backplane, plus 500 VAC between channels, the ABB DSCA190V 57310001-PK protects sensitive control systems from electrical noise and ground loops. In industrial environments with heavy machinery or variable frequency drives—such as steel mills or pulp and paper plants—this isolation ensures reliable operation by preventing interference from voltage spikes or transient signals.

Simultaneous sampling: The module’s 10 Hz simultaneous sampling across all channels ensures time-aligned data capture, which is essential for analyzing correlated process variables. In applications like water treatment, where pH, turbidity, and flow rates must be evaluated together to adjust chemical dosing, synchronized measurements enable more accurate process optimization and troubleshooting.

Typical application scenarios

In oil refineries, the ABB DSCA190V 57310001-PK monitors critical process variables in distillation columns, including temperature gradients (via 4-20 mA RTD transmitters), pressure differentials, and flow rates of feedstock. Its high accuracy ensures precise control of heating elements and valve positions, optimizing separation efficiency and reducing energy consumption. The module’s robust isolation protects against electrical noise from nearby pumps and compressors, maintaining measurement integrity.

Within power generation plants, the ABB DSCA190V 57310001-PK connects to sensors monitoring steam pressure, turbine vibration, and generator cooling water flow. By providing reliable analog data to the Advant Controller, it enables real-time adjustments to boiler operations and load distribution, ensuring efficient power output while preventing equipment overheating or stress.

In food and beverage processing, the ABB DSCA190V 57310001-PK tracks variables like pasteurization temperature, mixing tank pressure, and ingredient flow rates. Its accurate measurements support compliance with strict quality standards, ensuring product consistency and safety. The module’s resistance to humidity makes it suitable for washdown environments, a common requirement in food production facilities.

ABB DSCA190V 57310001-PK

Related model recommendations

ABB DSCA180V 57310001-PJ: A 4-channel analog input module, offering a compact alternative to the ABB DSCA190V 57310001-PK for smaller-scale applications like laboratory equipment or skid-mounted systems.

ABB DSOA190V 57310002-PK: An 8-channel analog output module that pairs with the ABB DSCA190V 57310001-PK, allowing the controller to send control signals to valves, pumps, and variable speed drives based on input data.

ABB Advant Controller 450: The core controller that processes data from the ABB DSCA190V 57310001-PK, executing advanced control algorithms for complex industrial processes.

ABB CI854A 3BSE022469R1: A Profibus DP communication module that enhances data transfer between the ABB DSCA190V 57310001-PK and higher-level SCADA systems, enabling remote monitoring.

ABB TU846 3BSE008520R1: A terminal unit that simplifies wiring for the ABB DSCA190V 57310001-PK, providing surge protection and easy field device connection.

ABB 800xA DCS: A distributed control system that integrates the ABB DSCA190V 57310001-PK into large-scale industrial networks, offering advanced visualization and analytics tools.

Installation, commissioning and maintenance instructions

Installation preparation: Before installing the ABB DSCA190V 57310001-PK, ensure the Advant Controller backplane is powered off and securely mounted on a 35mm DIN rail. Verify the ambient temperature is within 0°C to 60°C and humidity is 5-95% non-condensing. Gather tools: screwdriver, wire strippers, and a multimeter. Use shielded twisted-pair cables for field wiring, grounding the shield at both ends to minimize noise. Confirm the 24 VDC power supply is stable and fused at 1A.

Maintenance suggestions: Inspect the ABB DSCA190V 57310001-PK quarterly for loose connections or dust buildup; use compressed air to clean vents. Calibrate annually using a precision signal generator, verifying accuracy across the full range of each input type. Check isolation integrity with a megohmmeter (500 VDC) to ensure channel-to-backplane resistance exceeds 100 MΩ. If measurement errors occur, first verify field device calibration and wiring continuity before troubleshooting the module. Power down the backplane before removing or inserting the module to prevent damage.

Service and guarantee commitment

The ABB DSCA190V 57310001-PK comes with a 36-month warranty from the purchase date, covering manufacturing defects and ensuring compliance with published specifications. ABB guarantees replacement of faulty modules within 72 hours for critical applications, minimizing operational downtime.

Technical support includes access to ABB’s global engineering team via phone and email, along with online resources such as calibration manuals, wiring diagrams, and compatibility guides. Customers can utilize ABB’s local service centers for on-site assistance with installation and troubleshooting. Optional extended service contracts offer preventive maintenance, priority support, and firmware updates, ensuring the ABB DSCA190V 57310001-PK delivers reliable performance throughout its 15-year design lifespan.
