Description
DSTA 001B: Product Overview
The ABB DSTA 001B (part number: 3BSE018316R1) is an industrial-grade analog connection unit designed for seamless integration into ABB’s S800 I/O series distributed control systems (DCS). As a critical component for process automation, it acts as an interface between field devices (e.g., pressure transmitters, temperature sensors) and the central controller, ensuring accurate signal transmission and system reliability.
Role in Automation Systems:
Positioned as a “signal gateway” in ABB’s DCS architecture, the DSTA 001B performs two primary functions:
-
Signal Conditioning: Filters and amplifies weak analog signals from field devices to eliminate noise and ensure compatibility with the controller’s input requirements.
-
Connectivity: Transmits conditioned analog signals to the ABB AC 800M controller via the S800 I/O bus, enabling real-time process monitoring and control.
Core Functionality:
-
Analog Signal Handling: Supports both voltage (e.g., 0–10 V) and current (e.g., 4–20 mA) signals, making it versatile for a wide range of field instruments.
-
Electrical Isolation: Provides galvanic isolation between field devices and the controller to prevent ground loops and voltage spikes from damaging sensitive electronics.
-
Hot-Swappable Design: Allows for replacement without shutting down the system, minimizing downtime during maintenance.
Platform Benefits (S800 I/O Series):
The DSTA 001B leverages ABB’s S800 I/O platform, which is renowned for:
-
Scalability: Supports expansion with additional I/O modules to accommodate growing operational needs.
-
Reliability: Industrial-grade components and a rugged design ensure 24/7 operation in harsh environments (e.g., high temperature, vibration).
-
Diagnostic Capabilities: Built-in status LEDs and fault logging simplify troubleshooting, reducing mean time to repair (MTTR).

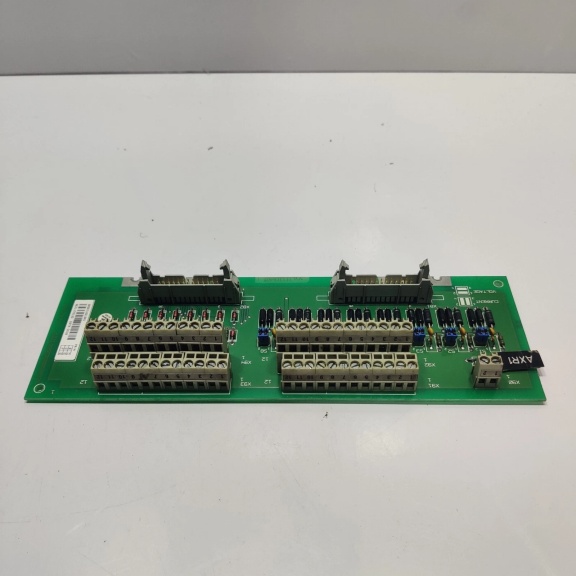

ABB DSTA 001B
Technical Specifications
Model Number: DSTA 001B (3BSE018316R1)
Manufacturer: ABB
Product Type: Analog Connection Unit
-
Compatibility: ABB S800 I/O series, AC 800M controllers
-
Signal Type: Analog voltage/current inputs and outputs
-
Operating Temperature: -40°C to +70°C (-40°F to 158°F)
-
Storage Temperature: -40°C to +85°C (-40°F to 185°F)
-
Humidity: 5–95% non-condensing
-
Protection Rating: IP20 (front panel)
-
Weight: 0.222 kg (0.49 lbs)
-
Dimensions (W×H×D): 150 mm × 100 mm × 50 mm (5.91 in × 3.94 in × 1.97 in)
-
Certifications: CE, UL (inferred from ABB’s industrial product standards)
Core Features & Customer Value
1. Precise Signal Conditioning:
The DSTA 001B’s advanced filtering and amplification circuits ensure that analog signals from field devices are transmitted to the controller with minimal distortion. For example, in a chemical plant, this means accurate measurement of reactor temperature, enabling precise control of the process and reducing product variability.
2. Seamless Integration with ABB Systems:
Designed specifically for ABB’s S800 I/O series and AC 800M controllers, the DSTA 001B eliminates the need for custom integration work. This reduces setup time and costs, allowing engineers to focus on optimizing the process rather than troubleshooting compatibility issues.
3. Robust Protection for Harsh Environments:
The module’s wide operating temperature range (-40°C to +70°C) and IP20 protection rating make it suitable for use in harsh industrial environments, such as steel mills or offshore oil rigs. This reliability reduces downtime and maintenance costs, which is critical for mission-critical applications.
4. Easy Maintenance with Hot-Swap Design:
The DSTA 001B’s hot-swappable design allows technicians to replace the module without shutting down the system. This minimizes downtime during maintenance, which is essential for industries like power generation, where continuous operation is required.

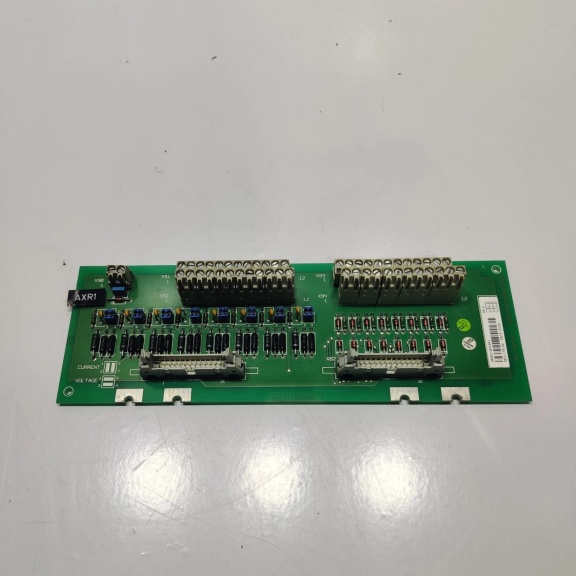

ABB DSTA 001B
Typical Applications
The ABB DSTA 001B is widely used in industries requiring precise analog signal processing:
-
Chemical Processing:
-
Connects pressure transmitters and temperature sensors to the ABB AC 800M controller, enabling real-time monitoring of reactor conditions.
-
Example: In a petrochemical refinery, the DSTA 001B transmits conditioned signals from a pressure transmitter to the controller, which adjusts the flow of reactants to maintain optimal reaction conditions.
-
-
Power Generation:
-
Interfaces with turbine sensors (e.g., temperature, vibration) to provide real-time data to the DCS.
-
Example: In a thermal power plant, the DSTA 001B conditions signals from a turbine temperature sensor, allowing the controller to adjust the fuel flow and maintain optimal efficiency.
-
-
Water Treatment:
-
Connects pH sensors and flow meters to the DCS, enabling precise control of water quality.
-
Example: In a municipal water treatment plant, the DSTA 001B transmits signals from a pH sensor to the controller, which adjusts the amount of chlorine added to maintain safe drinking water.
-
