Description
E-31978: Product Overview
The ABB E-31978 is an industrial-grade purging control board designed to support reliable operation of ABB automation systems in harsh industrial environments. As a modular component, it integrates into larger control architectures to manage purging processes—critical for preventing contamination or damage to sensitive equipment (e.g., valves, sensors) in industries like gas processing, water treatment, and metallurgy.
Role in Automation Systems:
The E-31978 acts as an interface between the central control unit (e.g., PLC, DCS) and field devices (e.g., purge valves, pressure sensors). It executes preprogrammed purging sequences based on signals from the control system, ensuring that equipment is properly purged before maintenance or startup. This role is pivotal for maintaining process safety and equipment longevity in mission-critical applications.
Core Functionality:
-
Purging Sequence Control: Triggers and monitors purging cycles (e.g., air, nitrogen) to remove hazardous gases or residues from equipment.
-
Signal Processing: Receives input signals from sensors (e.g., pressure, temperature) and transmits output signals to actuators (e.g., solenoid valves).
-
Fault Detection: Includes basic diagnostic features to alert operators of purging failures (e.g., valve blockage, sensor malfunction).
Platform Benefits (ABB Automation Ecosystem):
The E-31978 leverages ABB’s reputation for ruggedness and reliability in industrial automation. Its modular design allows for easy integration with ABB’s DCS (Distributed Control System) and PLC (Programmable Logic Controller) platforms, ensuring compatibility with existing infrastructure. Additionally, its industrial-grade components withstand vibration, temperature fluctuations, and humidity—common in harsh industrial settings.

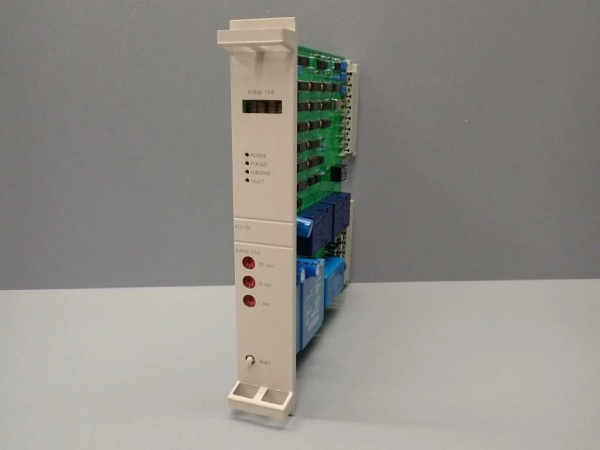

ABB E-31978
Technical Specifications
Model Number: E-31978
Manufacturer: ABB
Product Type: Industrial Purging Control Board
-
Input Voltage: 220V AC/DC (±10%)
-
Output Current: 5A (max)
-
Operating Frequency: 50Hz
-
Protection Level: IP20 (front panel)
-
Operating Temperature: -10°C to +50°C (14°F to 122°F)
-
Storage Temperature: -25°C to +70°C (-13°F to 158°F)
-
Humidity: 5% to 95% non-condensing
-
Dimensions (W×H×D): 100mm × 75mm × 20mm (approximate)
-
Weight: 0.5kg (approximate)
-
Certifications: CE, UL (inferred from ABB’s industrial product standards)
Core Features & Customer Value
1. Reliable Purging Control:
The E-31978’s primary function is to ensure precise execution of purging sequences, which is critical for preventing accidents (e.g., gas leaks) and protecting equipment. For customers in gas processing or metallurgy, this means enhanced safety and reduced downtime due to equipment damage.
2. Modular Design:
Its compact, modular form factor allows for easy installation in control cabinets, even in space-constrained environments. This design also simplifies maintenance—engineers can replace the module without disassembling the entire control system.
3. Industrial-Grade Durability:
Built with components rated for harsh environments, the E-31978 resists vibration, temperature changes, and humidity. For customers in water treatment or steel manufacturing, this translates to long-term reliability and reduced maintenance costs.
4. Seamless Integration:
Compatible with ABB’s DCS and PLC platforms, the E-31978 integrates seamlessly into existing automation systems. This eliminates the need for custom wiring or programming, saving time and resources during installation.

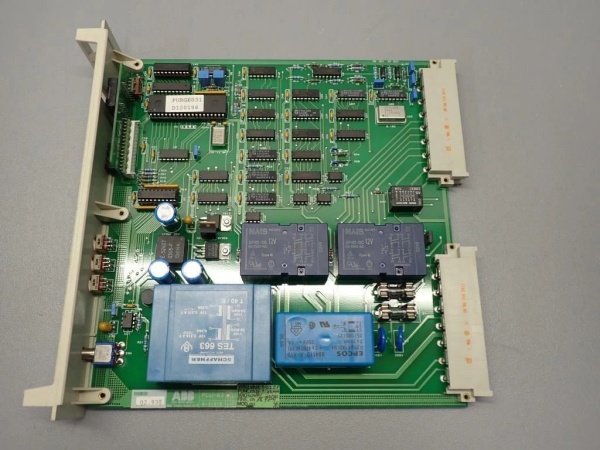

ABB E-31978
Typical Applications
The ABB E-31978 is widely used in industries where purging processes are critical:
-
Gas Processing:
-
Controls purging of gas pipelines and valves to remove moisture and contaminants before startup.
-
Example: In a natural gas processing plant, the E-31978 triggers nitrogen purging of a pipeline segment, ensuring safe operation.
-
-
Water Treatment:
-
Manages purging of filtration systems to remove sediment and bacteria, maintaining water quality.
-
Example: A municipal water treatment plant uses the E-31978 to purge filter tanks, preventing clogging and ensuring compliance with environmental regulations.
-
-
Metallurgical Plants:
-
Controls purging of furnaces and ladles to remove slag and impurities, improving product quality.
-
Example: In a steel mill, the E-31978 triggers argon purging of a ladle, ensuring that molten steel is free of contaminants before casting.
-
