•• Core Function: Provides 4 isolated channels for measuring 4-20mA current signals with integrated HART protocol support for smart device communication.
EL3040: Product OverviewThe EL3040 is a 4-channel analog input module within ABB’s S800 I/O family, designed for high-precision acquisition of current signals from field transmitters. In a distributed control system (DCS) architecture, this module is typically installed in a remote I/O station located close to the process equipment, functioning as the critical interface that converts analog current signals from measurement devices—such as pressure, flow, level, and temperature transmitters—into digital values for the central controller (e.g., an AC 800M). Its primary role is to ensure the accurate and reliable digitization of these vital process variables, which form the basis for regulatory control, monitoring, and data logging.A defining feature of this module is its integrated support for the HART (Highway Addressable Remote Transducer) protocol. This capability allows the module to perform dual communication: it continuously measures the 4-20mA analog value representing the primary process variable while simultaneously superimposing a digital HART signal on the same wire pair. This enables bidirectional communication with HART-enabled smart field instruments without requiring separate wiring, allowing for device configuration, calibration, diagnostics, and access to secondary or tertiary variables (e.g., device temperature, sensor status) from the control system.

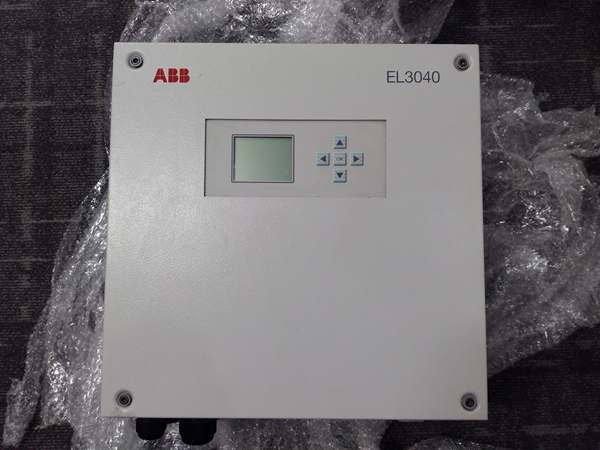

ABB EL3040
EL3040: Technical Specifications
•• Model Number: EL3040
•• Manufacturer: ABB
•• Product Type: 4-Channel Analog Input Module
•• Input Channels: 4, differential
•• Input Signal: 4-20mA (with HART)
•• Resolution: 16-bit
•• Accuracy: ±0.05% of span (typical)
•• HART Support: Integrated HART modem per channel
•• Isolation: Channel-to-channel and channel-to-bus isolation
•• Update Time per Channel: 10 ms (for all channels)
•• Power Supply: 24 VDC (via S800 I/O baseplate)
•• Internal Power Consumption: Typically 1.2 W
•• Connection: Via Field Termination Assembly (FTA) such as the TU810
•• Compatible Systems: ABB AC 800M, Symphony DCS, System 800xA

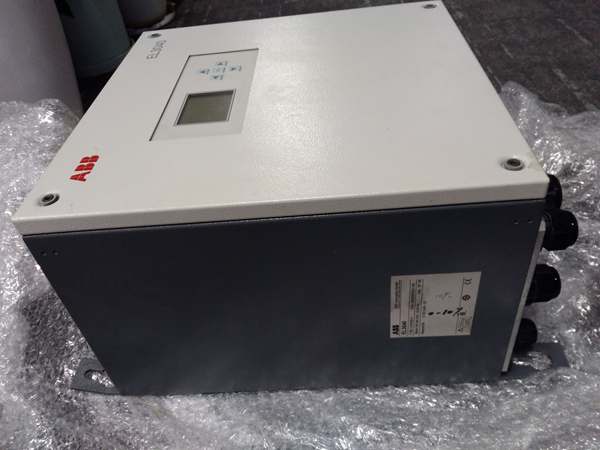

ABB EL3040
Core Features & Customer ValueThe channel-to-channel isolation is a critical design feature that prevents ground loops and limits the impact of a fault on one channel from affecting the others. For the control engineer, this means that a short circuit or wiring fault on a single transmitter loop will not disrupt the measurement integrity of the remaining three channels, significantly enhancing the overall availability and reliability of the control system. This isolation is essential for maintaining signal integrity in electrically noisy industrial environments.The integrated HART functionality delivers substantial operational value by enabling asset management capabilities. Maintenance personnel can remotely query connected HART devices to verify configuration, perform loop tests (e.g., by forcing a 4mA or 20mA output from the device), and retrieve diagnostic messages without needing to visit the field or carry a separate HART communicator. This capability transforms the I/O module from a simple data acquisition card into a gateway for predictive maintenance, helping to reduce downtime by identifying potential device issues before they cause a process interruption.The module’s high density (4 channels) and compact form factor allow for a high channel count within a limited cabinet space, optimizing the footprint of the control panel. The use of standardized Field Termination Assemblies (FTAs) like the TU810 simplifies wiring, reduces installation time, and facilitates module replacement without disturbing field wiring, which directly lowers installation and maintenance costs.Typical ApplicationsA common application is in a oil and gas separator vessel, where the EL3040 is used to monitor pressure, level, and temperature via HART-enabled transmitters. The module provides the primary process variables to the controller for level control and pressure regulation. Simultaneously, the HART link is used to monitor the health of the level transmitter’s diaphragm via its built-in diagnostic variables, providing early warning of potential failure.In a water treatment plant, the module is used to interface with smart pH and conductivity analyzers. The 4-20mA signal carries the primary measurement value for control, while the HART protocol is used to remotely read secondary measurements from the multi-parameter analyzer and to calibrate the device during scheduled maintenance outages, ensuring process water quality without constant manual intervention.
