Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | ABB FI830F 3BDH000032R1 |
| Manufacturer | ABB |
| Product Category | Fieldbus Module |
| Communication Protocol | PROFIBUS-DP |
| Operating Voltage | 24V DC |
| Dimensions | 125mm (L) x 155mm (H) x 28mm (W) |
| Weight | 0.26 kg |
| Certifications | UL, CE |
| Operating Temperature Range | 0°C to +60°C |
| Humidity Tolerance | 5% to 95% (non-condensing) |
| Mounting Method | DIN rail |

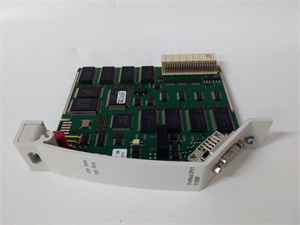

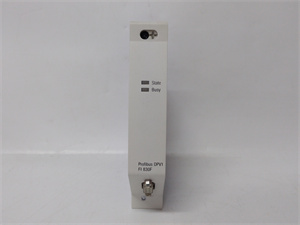

FI830F 3BDH000032R1
Product Introduction
The ABB FI830F 3BDH000032R1 is a high-performance fieldbus module designed for industrial automation and control applications. It is part of the ABB AC 800F Freelance series and is used for communication bridging in ABB Advant Master DCS systems.
Core Advantages and Technical Highlights
High-Speed Data Communication
The ABB FI830F 3BDH000032R1 supports high-speed data communication, ensuring efficient and reliable data exchange in industrial control systems.
Robust Design
The module is designed to withstand harsh industrial environments, ensuring long-term reliability and consistent performance.
Compact and Modular Design
The ABB FI830F 3BDH000032R1 features a compact form factor and modular design, making it easy to install and integrate into existing control systems.
Advanced Diagnostics
The module includes self-diagnostic capabilities, allowing real-time monitoring of its operating status. It can send alarm signals and transmit fault information to the control system for quick troubleshooting.

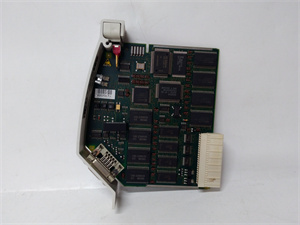

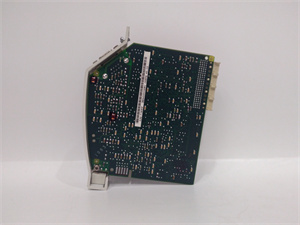

FI830F 3BDH000032R1
Typical Application Scenarios
The ABB FI830F 3BDH000032R1 is widely used in:
-
Power Generation: For connecting fieldbus or remote I/O systems to achieve data acquisition and control signal transmission.
-
Petrochemical Process Control: For real-time monitoring and adjustment of the production process.
-
Industrial Manufacturing Automation: For controlling actuators, relays, and other industrial devices.
Related Model Recommendations
-
ABB PM 802F or PM 803F: These modules are designed to work in conjunction with the ABB FI830F 3BDH000032R1 for enhanced control capabilities.
Installation, Commissioning, and Maintenance Instructions
Installation Preparation
Ensure the environment meets the specified temperature and humidity requirements. Use appropriate tools and safety equipment to secure the module in place. Connect the module to the control system according to the manufacturer’s guidelines.
Maintenance Suggestions
Regularly inspect the module for signs of wear or damage. Keep the unit clean and free from dust to prevent overheating and ensure efficient operation. Perform annual calibration checks to maintain accuracy.
