Description
GDC806A0101: Product Overview
The ABB GDC806A0101 is a critical processor module engineered for ABB’s System 800xA distributed control system (DCS). As the “brain” of the System 800xA architecture, it serves as the central processing unit (CPU) responsible for executing control logic, processing real-time data, and facilitating communication between I/O modules, field devices, and enterprise-level systems.
Role in Automation Systems:
Positioned as the core computational component in System 800xA, the GDC806A0101 enables:
-
Control Logic Execution: Runs complex algorithms (e.g., PID loops, sequence control) to regulate industrial processes (e.g., chemical reactions, power generation).
-
Data Processing: Aggregates and analyzes data from field devices (sensors, actuators) and I/O modules, providing actionable insights for operators.
-
Communication Management: Acts as a hub for System 800xA’s networked components, ensuring seamless data exchange between controllers, HMI (Human-Machine Interface) systems, and enterprise resource planning (ERP) software.
Core Functionality:
-
Algorithm Execution: Supports ABB’s Control Builder M (IEC 61131-3 compliant) for programming control logic, including ladder logic, function block diagrams (FBD), and structured text (ST).
-
Real-Time Data Handling: Processes high-volume data streams from analog/digital I/O modules, ensuring low-latency responses for time-critical applications (e.g., turbine control, robotic welding).
-
System Diagnostics: Includes built-in tools for monitoring CPU health, memory usage, and communication status, simplifying troubleshooting and maintenance.
Platform Benefits (System 800xA):
The GDC806A0101 leverages System 800xA’s industry-leading features:
-
Scalability: Supports expansion via additional I/O modules or controllers, adapting to growing industrial needs.
-
Integration: Compatible with ABB’s Advant OCS and Bailey INFI 90 legacy systems, enabling phased modernization of existing facilities.
-
Reliability: Designed for 24/7 operation in harsh industrial environments, with industrial-grade components and redundant power options (available in redundant configurations).
ABB GDC806A0101
Technical Specifications
Model Number: GDC806A0101
Manufacturer: ABB
Product Type: Processor Module (CPU)
-
Compatibility: ABB System 800xA control system
-
Dimensions (W×H×D): 96 mm × 96 mm × 120 mm
-
Weight: 0.15 lbs (68 g)
-
Power Supply: 24 VDC (±10%; supplied via System 800xA backplane)
-
Operating Temperature: -10°C to +50°C (14°F to 122°F)
-
Storage Temperature: -40°C to +70°C (-40°F to 158°F)
-
Humidity: 5% to 95% non-condensing
-
Protection Rating: IP20 (front panel)
-
Communication Interfaces:
-
System 800xA Ethernet (10/100 Mbps)
-
Profibus-DP (up to 12 Mbps)
-
Modbus TCP/IP (for third-party device integration)
-
-
Memory: 128 MB RAM (expandable via optional modules)
-
Certifications: CE, UL, RoHS, ATEX (optional for hazardous environments)
Core Features & Customer Value
1. Seamless System 800xA Integration:
The GDC806A0101 is purpose-built for ABB’s System 800xA, ensuring plug-and-play compatibility with existing components (e.g., I/O modules, HMI). This eliminates the need for custom integration work, reducing setup time and costs for engineers.
2. High-Reliability Performance:
With industrial-grade components and a rugged design, the module delivers 24/7 uptime in harsh environments (e.g., factories, power plants). Redundant power options (available in redundant configurations) further minimize downtime risks, critical for mission-critical applications.
3. Flexible Programming & Diagnostics:
Support for Control Builder M (IEC 61131-3) allows engineers to program complex control logic using familiar languages. Built-in diagnostics (e.g., CPU load monitoring, communication status LEDs) simplify troubleshooting, reducing mean time to repair (MTTR).
4. Scalability for Future Growth:
The module’s compact design and support for System 800xA’s modular architecture enable easy expansion. Customers can add I/O modules or upgrade to higher-performance CPUs as operational needs evolve, protecting long-term investments.

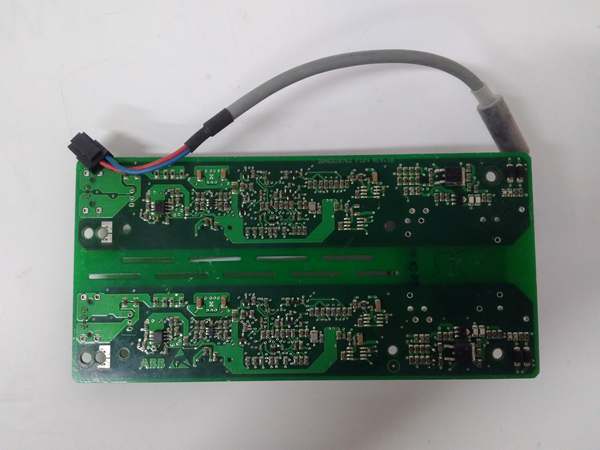

ABB GDC806A0101
Typical Applications
The ABB GDC806A0101 is widely used in industries requiring precise process control and automation:
-
Chemical Processing:
-
Regulates temperature, pressure, and flow in chemical reactors and distillation columns.
-
Example: In a petrochemical refinery, the GDC806A0101 executes PID loops to maintain optimal reaction conditions, ensuring product purity and safety.
-
-
Power Generation:
-
Controls turbine speed, generator voltage, and fuel flow in thermal/hydroelectric power plants.
-
Example: In a natural gas power plant, the module processes data from gas turbines and adjusts fuel injectors to optimize efficiency.
-
-
Water & Wastewater Treatment:
-
Manages pump speeds, valve positions, and chemical dosing in treatment facilities.
-
Example: In a municipal water treatment plant, the GDC806A0101 regulates chlorine dosing based on pH and turbidity readings, ensuring compliance with environmental regulations.
-
-
Manufacturing:
-
Coordinates robotic arms, conveyor belts, and assembly-line equipment in automotive/electronics factories.
-
Example: In an automotive assembly line, the module synchronizes six-axis robots with welding equipment, ensuring precise and consistent welds.
-
