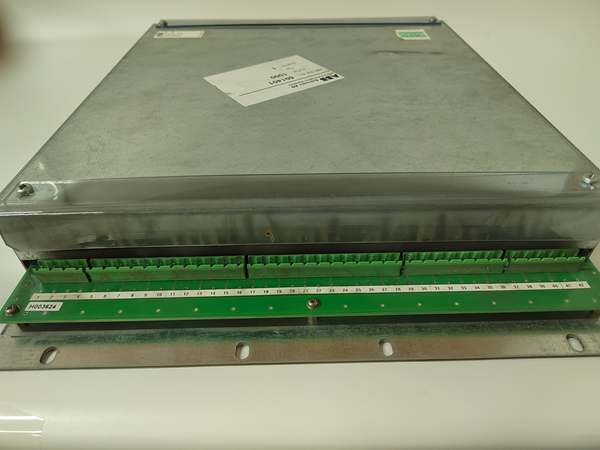

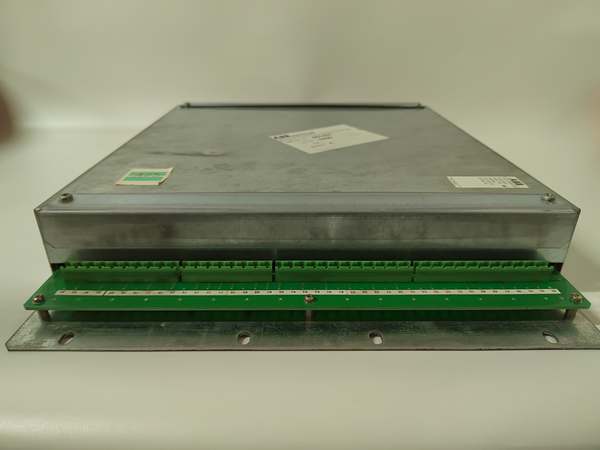

ABB HESG324436R3 | Electrical Isolation Unit for Generator Protection

  • Model: ABB HESG324436R3
  • Alt. P/N: N/A
  • Series: REG216
  • Type: Relay and Optocoupler Module
  • Key Feature: Electrical isolation via optocouplers; signal conversion
  • Primary Use: Isolate and condition binary signals in generator protection systems
Get a Quote
Manufacturer:
Part number: ABB HESG324436R3
Our extensive catalogue, including : ABB HESG324436R3 , is available now for dispatch to the worldwide.

Description

Key Technical Specifications
  • Model Number: ABB HESG324436R3
  • Manufacturer: ABB
  • System Compatibility: ABB REG216 Digital Generator Protection System
  • Primary Function: Electrical isolation, signal conversion, binary input processing
  • Component Type: Relay and optocoupler module (Revision A)
  • Operating Temperature: -10°C to +55°C
  • Humidity: 5% to 95% non-condensing
  • Certifications: IEC 61850, IEEE C37.90
  • Mounting: Panel-mount within REG216 housing
  • Isolation Method: Optical (optocoupler)
  • Input Signal Type: Dry contact, 24V DC logic
  • Weight: Approximately 0.5-1.0 kg

    ABB HESG324436R3

    ABB HESG324436R3

Field Application & Problem Solved
In the field, the biggest challenge with generator protection is safely interfacing the sensitive digital electronics of a relay with the harsh, high-energy environment of the switchyard. Transient overvoltages from switching operations or lightning strikes can easily couple into field wiring, creating ground loops or directly damaging the protection system’s processor. The ABB HESG324436R3 module solves this by providing robust galvanic isolation. It sits between the field devices—like breaker auxiliary contacts, pressure switches, or temperature contacts—and the REG216 system’s core processor. Its job is to take a raw, potentially noisy signal and convert it into a clean, isolated logic signal that the processor can rely on.
You will typically find this module installed in the protection relay cabinet of a power plant or electrical substation. It is a core component of the REG216 system, which is applied to protect generators, generator-transformer units, and large motors. Its core value is twofold: first, it protects the multi-thousand-dollar REG216 processor from catastrophic failure due to electrical transients. Second, it ensures the integrity of the binary signals used for critical protection functions, like detecting a breaker failure or a loss of excitation. Without this isolation, a single surge could compromise the entire protection scheme.
Installation & Maintenance Pitfalls (Expert Tips)
Verify Revision Level: The ‘R3’ in the part number is critical. ABB occasionally revises modules. Using an installation drawing or procedure meant for a different revision can lead to incorrect wiring and misoperation. Always match the physical module’s label to the documentation for that specific control system build.
Torque Terminal Screws Correctly: The terminal blocks on these modules are not indestructible. Over-tightening can strip the threads, making a secure connection impossible. Under-tightening leads to a high-resistance joint that can overheat or create an unreliable connection, causing intermittent faults. Use a calibrated torque screwdriver; the typical spec for these blocks is around 0.5-0.6 Nm.
Check Shield Grounding: Even with optical isolation, the cable shields must be grounded at one end only, typically at the field device end. Grounding the shield at both ends defeats the purpose of the isolation and can reintroduce noise. A common rookie mistake is to ground everything, assuming more grounding is better.
Inspect Optocoupler LEDs: If the module starts missing signals, an optocoupler may have failed. Some modules have a status LED, but not all. If you suspect a failure, a quick swap with a known-good spare is the fastest way to confirm. Keep a spare module on-site.
Follow Lockout/Tagout Procedures: This is not a component you work on live. It is part of a safety-critical system. De-energize the entire protection panel, verify zero voltage, and follow all plant LOTO procedures before removing or installing this module.

ABB HESG324436R3

ABB HESG324436R3

Technical Deep Dive & Overview
The ABB HESG324436R3 is a printed circuit board assembly designed for one job: to be the gatekeeper between the outside world and the REG216’s sensitive logic. It achieves this with a combination of electromechanical relays and solid-state optocouplers. When a field contact closes, a small current energizes the input side of an optocoupler. This illuminates an internal LED, which in turn activates a phototransistor on the isolated output side. The phototransistor then conducts, creating a clean 24V DC logic signal that is passed to the REG216 system via its backplane. Relays are used where physical contact closure is necessary. The module’s design focuses on reliability in high-electrical-stress environments, with components rated for the surges common in power systems. It is a simple concept—signal isolation—executed to meet the stringent reliability demands of generator protection.
