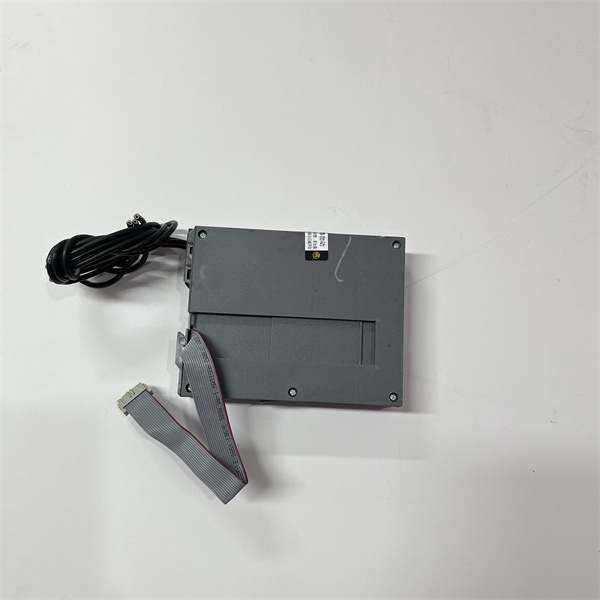

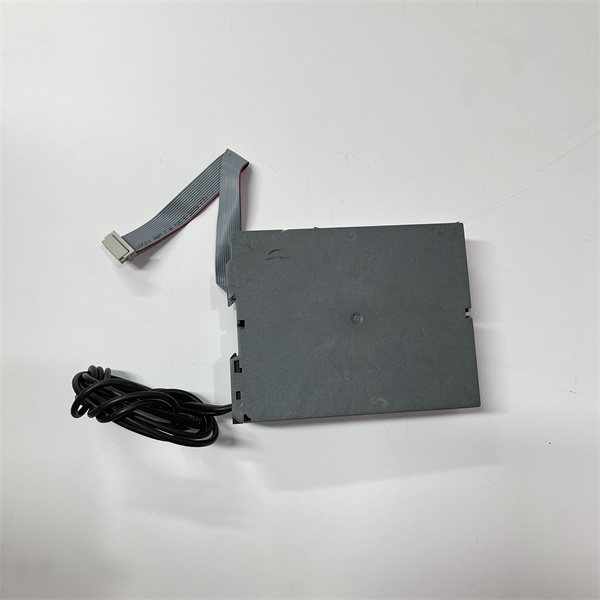

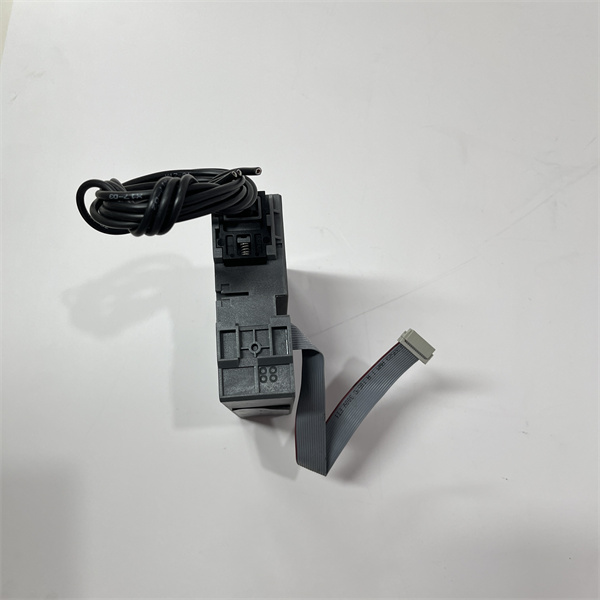

ABB INSUMMCU2

Product Introduction

The ABB INSUM MCU2 is a key product in industrial automation. It adopts a 32-bit RISC processor, which can provide fast processing speed and accurate control, ensuring the stable operation of the automation system. With 128 KB of RAM and 512 KB of Flash memory, it can store a large amount of program and data. The device has a rich interface, including RS – 232, RS – 485 and Ethernet, which can be easily connected to other devices. Based on the ABB Ability™ System 800xA platform, the INSUM MCU2 can be well integrated into the overall automation system, playing an important role in data acquisition, processing and control, and helping enterprises improve production efficiency and product quality.

Core Advantages and Technical Highlights

High – performance Processing: The 32-bit RISC processor of INSUM MCU2 enables it to quickly execute various control instructions, and can respond in a timely manner to complex industrial control tasks, ensuring the real – time performance of the system.

Rich I/O Resources: With 24 digital I/O points and 8 analog I/O points, it can meet the connection needs of a variety of field devices, such as sensors, actuators, etc., reducing the need for additional expansion modules and saving costs.

Good Environmental Adaptability: The protection level of IP65 makes it have strong dust – proof and waterproof performance, and can work stably in harsh industrial environments. The operating temperature range of -20°C to 60°C also expands its application scenarios.

Typical Application Scenarios

The ABB INSUM MCU2 has a wide range of application scenarios. In the field of manufacturing, it can be used in production line control, such as the control of conveyor belts, assembly equipment, etc., to ensure the orderly progress of the production process. In the energy management system, it can be used to monitor and control the power consumption of various equipment, realize energy – saving management through reasonable scheduling. In the field of building automation, it can be used to control lighting, air – conditioning and other systems, providing a comfortable and energy – efficient environment for buildings.

Related Model Recommendations

ABB BCU – 02: It is a high – performance industrial control unit, mainly used to control and manage frequency converters, motors, etc., and can be used in conjunction with INSUM MCU2 in some complex control systems.

ABB SCU200: It is a control unit in the InSite energy management system, which can communicate with INSUM MCU2 and cooperate to complete energy management tasks.

ABB US/U2.2: It is a universal interface with 2 channels that can be parameterized as inputs or outputs, and can be connected to INSUM MCU2 to expand the interface function.

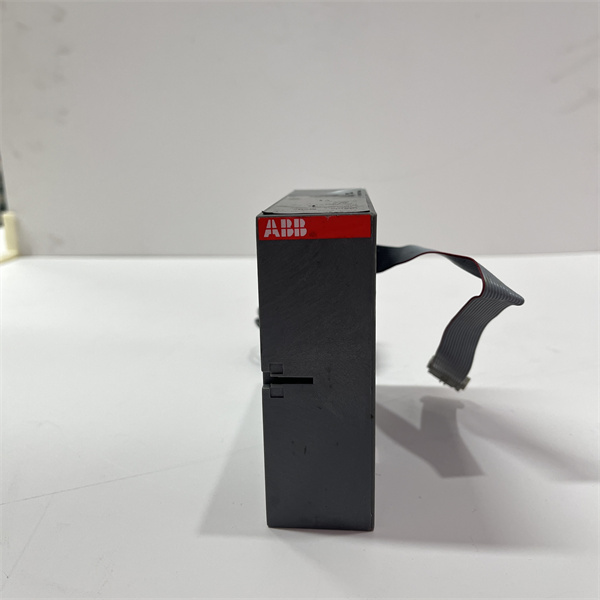

ABB INSUMMCU2

Installation, Commissioning and Maintenance Instructions

Installation Preparation: Before installing the INSUM MCU2, ensure that the installation environment is clean, dry and free from strong electromagnetic interference. Prepare appropriate tools such as screwdrivers. When installing, pay attention to fixing the device firmly to prevent loosening.

Maintenance Suggestions: In daily use, regularly check the operating status of the INSUM MCU2, such as whether the indicator lights are normal. If a fault occurs, you can first check according to the fault code prompt. In terms of spare parts replacement, it is necessary to use original spare parts to ensure the performance and reliability of the device.

Service and Guarantee Commitment

ABB provides a comprehensive quality assurance and after – sales service system for the INSUM MCU2. The product has passed strict quality testing to ensure its high – quality and reliability. In terms of after – sales service, ABB provides technical support, including online consultation, on – site maintenance, etc. If there are quality problems during the warranty period, ABB will provide free repair or replacement services to ensure that customers can use the product with confidence.
