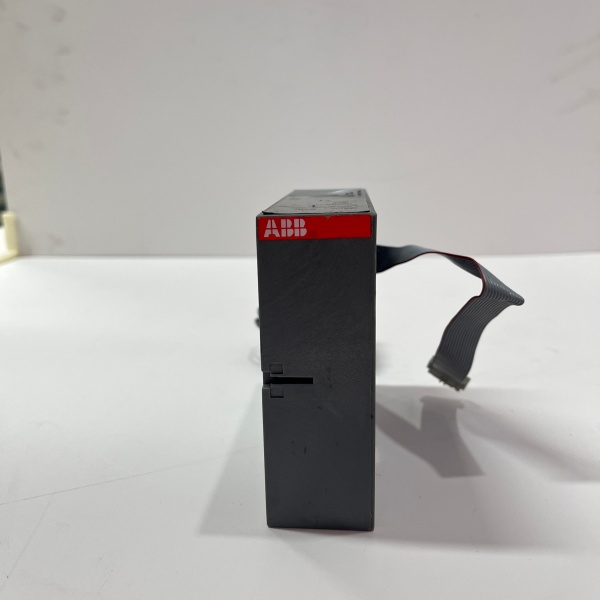

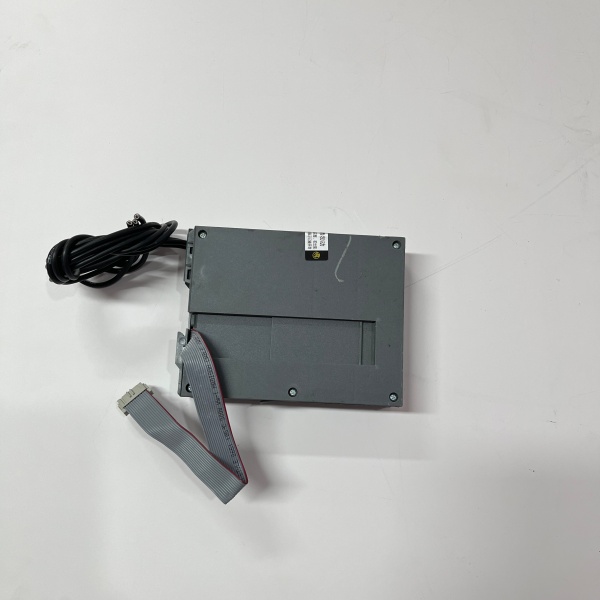

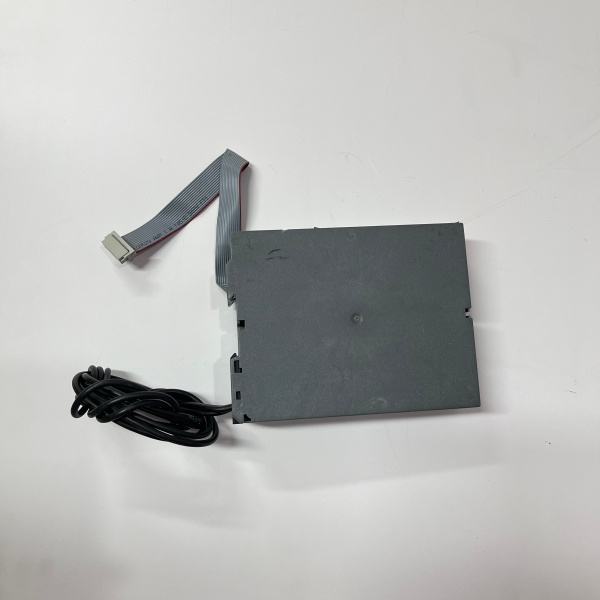

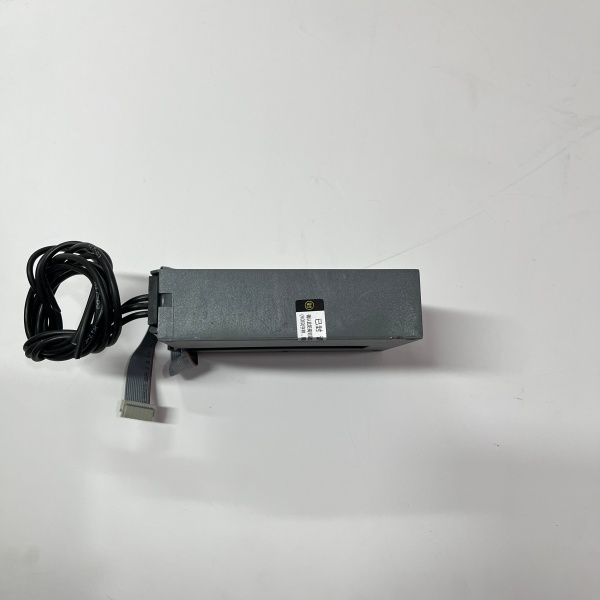

ABB INSUMMCU2 | Instrumentation MCU Module

  • Brand:​ ABB
  • ••
    Model:​ INSUMMCU2
  • ••
    Product Type:​ Instrumentation Monitoring and Control Unit (MCU)
  • ••
    Series:​ ABB Instrumentation
  • ••
    Core Function:​ Provides centralized monitoring, configuration, and control for ABB instrumentation devices in process automation systems.
  • ••
    Key Specs:​ Device management, configuration tool, instrumentation interface.
Get a Quote
Manufacturer:

Our extensive catalogue, including , is available now for dispatch to the worldwide.

Description

INSUMMCU2: Product Overview
The INSUMMCU2 is an Instrumentation Monitoring and Control Unit (MCU) designed by ABB for managing and configuring ABB instrumentation devices in process automation applications. This unit serves as a central interface between the plant control system (DCS/PLC) and ABB field instruments, providing a unified platform for device configuration, monitoring, diagnostics, and maintenance. It enables efficient management of smart instrumentation assets across the plant, including pressure transmitters, temperature transmitters, flow meters, and analytical instruments.
The module operates by communicating with field devices using industry-standard protocols such as HART, PROFIBUS PA, or FOUNDATION Fieldbus, collecting device status, process variables, and diagnostic information. It provides a web-based or software interface for engineers and technicians to configure device parameters, perform calibration, and monitor device health. The unit helps in predictive maintenance by tracking device performance and alerting operators to potential issues before they cause process disruptions.

ABB INSUMMCU2

ABB INSUMMCU2

INSUMMCU2: Technical Specifications
  • ••
    Model Number:​ INSUMMCU2
  • ••
    Manufacturer:​ ABB
  • ••
    Product Type:​ Instrumentation Monitoring and Control Unit
  • ••
    Communication Protocols:​ HART, PROFIBUS PA, FOUNDATION Fieldbus
  • ••
    Interface:​ Ethernet, USB, wireless options
  • ••
    Power Supply:​ 24V DC or 100-240V AC
  • ••
    Configuration Software:​ ABB Device Care™ or similar
  • ••
    Display:​ Web-based interface or local display
  • ••
    Data Logging:​ Built-in memory for device parameters and history
  • ••
    Security:​ User authentication, role-based access
  • ••
    Certifications:​ ATEX, IECEx (for hazardous areas)

    ABB INSUMMCU2

    ABB INSUMMCU2

Core Features & Customer Value
The primary value of the INSUMMCU2 is its ability to streamline device management and reduce maintenance costs. It provides a single interface for configuring and monitoring all ABB instruments, eliminating the need for multiple device-specific configurators. For maintenance teams, this means faster commissioning, easier troubleshooting, and reduced downtime during device replacement or recalibration.
The unit’s diagnostic capabilities enable predictive maintenance by monitoring device health parameters like sensor condition, calibration drift, and operating hours. This helps plants move from reactive to proactive maintenance, reducing unplanned downtime and extending instrument life. The web-based interface allows remote access from anywhere in the plant, improving operational efficiency and enabling experts to support field technicians remotely.
Typical Applications
In oil and gas production facilities, the INSUMMCU2 configures and monitors pressure and temperature transmitters on wellheads and pipelines. It ensures accurate measurement for custody transfer and provides early warning of device issues in remote locations.
In pharmaceutical manufacturing, the unit manages analytical instruments like pH and conductivity sensors, maintaining calibration records for regulatory compliance and ensuring product quality through precise process control.
