Description
NLIM02: Product Overview
The ABB NLIM02 is a compact gateway communication module designed for integration with ABB’s Network 90/INFI 90 distributed control systems (DCS). Positioned as a critical interface in industrial automation architectures, it facilitates bidirectional communication between field devices (e.g., sensors, actuators) and the DCS controller.
Role in Automation Systems:
-
Signal Conversion: Translates analog signals (e.g., 4–20 mA from pressure transmitters) and digital signals (e.g., on/off states from limit switches) into formats compatible with the DCS.
-
Data Acquisition: Collects real-time process data (e.g., temperature, flow rates) from field devices and transmits it to the DCS for monitoring and control.
-
System Integration: Bridges legacy field devices with modern DCS platforms, enabling phased upgrades without full system overhauls.
Core Functionality:
-
Isolated Input/Output Channels: Provides galvanic isolation (up to 1,500 V AC) to protect the DCS from electrical noise and voltage spikes common in industrial environments .
-
Compact Design: DIN rail-mountable form factor (13.0″ × 2.0″ × 7.0″) minimizes cabinet space, ideal for retrofits or space-constrained installations .
-
Multi-Protocol Support: Compatible with Modbus RTU and other industrial protocols for seamless integration with third-party devices.
Platform Benefits (Network 90/INFI 90 Series):
-
Legacy Compatibility: Supports ABB’s legacy INFI 90 systems, ensuring continuity for aging infrastructure.
-
Scalability: Modular design allows expansion with additional I/O modules to accommodate growing operational needs.
-
Diagnostic Capabilities: Built-in LED indicators and fault logging simplify troubleshooting, reducing mean time to repair (MTTR).

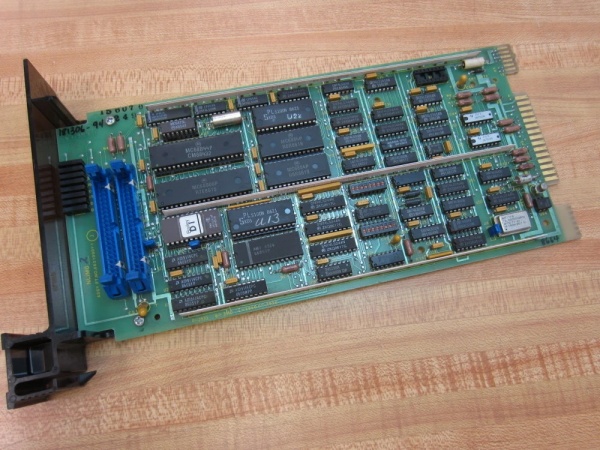

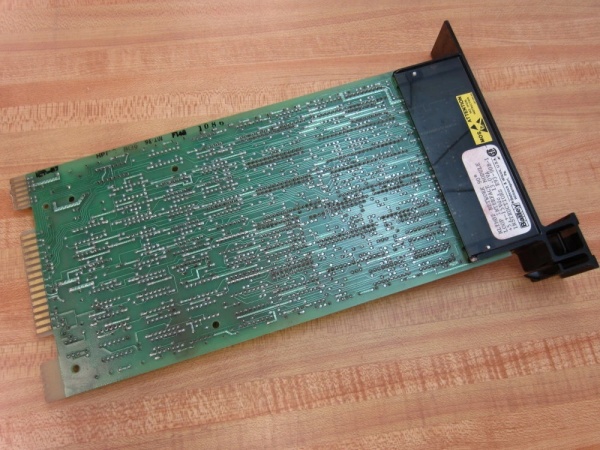

ABB NLIM02
Technical Specifications
Model Number: NLIM02
Manufacturer: ABB
Product Type: Gateway Communication Module
-
Power Supply: 24/28 V DC (±10%)
-
Input Channels: 16 analog/digital configurable inputs
-
Output Channels: 16 digital outputs (relay/solid-state)
-
Communication Interfaces:
-
1 × RS-485 (Modbus RTU)
-
1 × RS-232 (ASCII)
-
-
Operating Temperature: -20°C to +70°C (-4°F to 158°F)
-
Storage Temperature: -40°C to +85°C (-40°F to 185°F)
-
Humidity: 5% to 95% non-condensing
-
Dimensions (W×H×D): 33.0 cm × 5.1 cm × 17.8 cm (13.0″ × 2.0″ × 7.0″)
-
Weight: 0.4 kg (0.88 lbs)
-
Protection Rating: IP20 (front panel)
-
Certifications: CE, UL, RoHS
Core Features & Customer Value
1. Robust Signal Isolation:
The NLIM02’s galvanic isolation ensures noise immunity in electrically harsh environments (e.g., motor-driven machinery, high-voltage equipment). This prevents false readings and control system failures, critical for applications like power generation or chemical processing .
2. Flexible Signal Configuration:
Supports both analog and digital I/O, allowing engineers to adapt the module to diverse field devices (e.g., pressure transmitters, proximity switches). Configurable input ranges (e.g., 0–20 mA, 4–20 mA) eliminate the need for signal conditioning hardware, reducing installation costs .
3. Compact and Modular Design:
The module’s DIN rail-mountable design simplifies installation in control panels, even in retrofitted systems. Its small footprint (13.0″ × 2.0″) maximizes cabinet space utilization, a key advantage in upgrades where space is limited .
4. Enhanced Reliability:
-
Component Quality: Industrial-grade components ensure longevity in 24/7 operations.
-
Diagnostic Tools: Built-in fault indicators (e.g., overvoltage, short circuit) enable rapid troubleshooting, minimizing downtime .

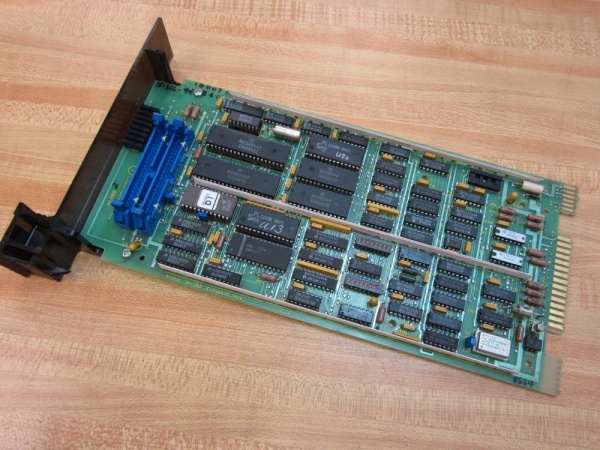

ABB NLIM02
Typical Applications
-
Power Generation:
-
Monitors turbine vibration sensors and feeds data to the DCS for real-time protection.
-
Example: In a coal-fired plant, the NLIM02 acquires 4–20 mA signals from vibration probes and triggers alarms if thresholds are exceeded.
-
-
Oil & Gas Pipeline Control:
-
Interfaces with pressure transmitters and valve actuators to regulate flow rates.
-
Example: In a pipeline SCADA system, the NLIM02 converts 0–10 V pressure signals to Modbus RTU for transmission to the central controller.
-
-
Manufacturing Automation:
-
Controls robotic arms and conveyor systems via digital I/O.
-
Example: In an automotive plant, the NLIM02 drives solenoid valves to actuate welding arms based on sensor inputs.
-
-
Water Treatment Plants:
-
Manages level sensors and pump controls to maintain tank levels.
-
Example: The NLIM02 processes 4–20 mA level signals from floats and activates pumps to prevent overflow.
-
