Description
PM150V08 3BSE009598R1: Product Overview
The ABB PM150V08 3BSE009598R1 is a high-reliability central processing unit (CPU) designed for ABB’s AC 400 series of industrial controllers, including the AC410 and AC450 models. As the “brain” of the AC 400 system, it executes control logic, manages data flow between I/O modules (e.g., AI810 analog input, DI810 digital input) and上位监控系统 (e.g., L2级服务器), and ensures real-time process control in industries such as steel manufacturing, cement production, and power generation.
Role in Automation Systems:
Positioned as the core component of the AC 400 series, the PM150V08 performs three primary functions:
-
Control Logic Execution: Runs user-defined control programs (e.g., PID loops, sequence control) to regulate industrial processes (e.g., heating furnace temperature, motor speed).
-
Data Management: Collects data from field devices (via I/O modules) and transmits it to上位 systems for monitoring and analysis; receives setpoints from上位 systems to adjust process parameters.
-
Communication Hub: Manages communication between the AC 400 controller and other devices via MB300 (Ethernet) and AF100 (fieldbus) protocols, ensuring seamless integration with plant-wide automation systems.
Core Functionality:
-
8 MByte Onboard Memory: Provides sufficient storage for control programs, data logs, and configuration files, supporting complex process control applications.
-
Multi-Protocol Communication: Supports MB300 (10 Mbit/s Ethernet) for high-speed data exchange with上位 systems and AF100 (1.5 Mbit/s fieldbus) for connecting to I/O modules and field devices (e.g., sensors, actuators).
-
Hot-Swappable Design: Allows for replacement without shutting down the system, minimizing downtime during maintenance (inferred from AC 400 series standards).
Platform Benefits (AC 400 Series):
The PM150V08 leverages ABB’s AC 400 platform, which is renowned for:
-
Reliability: Industrial-grade components and a rugged design ensure 24/7 operation in harsh environments (e.g., high temperature, vibration).
-
Scalability: Supports expansion with additional I/O modules (up to 5700 I/O points for AC450) to accommodate growing operational needs.
-
Legacy Support: Widely used in industries with long-lifecycle assets (e.g., steel, cement), ensuring compatibility with existing infrastructure.

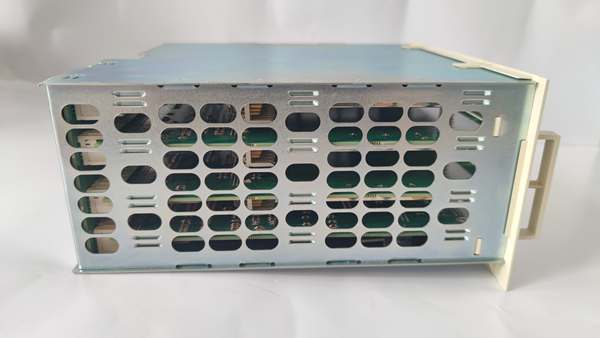

ABB PM150V08 3BSE009598R1
Technical Specifications
Model Number: PM150V08 3BSE009598R1
Manufacturer: ABB
Product Type: Central Processing Unit (CPU)
-
Memory Capacity: 8 MByte (DRAM)
-
Compatibility: ABB AC 400 series controllers (AC410, AC450)
-
Communication Interfaces:
-
MB300 (Ethernet-based, 10 Mbit/s) for上位 system communication
-
AF100 (fieldbus, 1.5 Mbit/s) for I/O module and field device communication
-
-
Operating Temperature: -20°C to +60°C (-4°F to 140°F)
-
Storage Temperature: -40°C to +85°C (-40°F to 185°F)
-
Humidity: 5% to 95% non-condensing
-
Dimensions (W×H×D): 234 mm × 99 mm × 216 mm (9.21 in × 3.90 in × 8.50 in)
-
Weight: 2.85 kg (6.28 lbs)
-
Certifications: CE, UL (inferred from ABB industrial product standards)
Core Features & Customer Value
1. Reliable Control Logic Execution:
The PM150V08’s 8 MByte memory and powerful processor enable it to execute complex control logic (e.g., PID loops for temperature control) with high precision. For example, in a steel mill’s heating furnace, the CPU can adjust煤气流量 and air flow in real time to maintain a consistent temperature, ensuring product quality.
2. Seamless Communication Integration:
Support for MB300 and AF100 protocols allows the PM150V08 to integrate with both上位监控系统 (e.g., L2级服务器) and field devices (e.g., sensors, actuators). This reduces the need for protocol converters, saving time and money during system setup.
3. Hot-Swappable Design for Minimal Downtime:
The CPU’s hot-swappable design allows technicians to replace it without shutting down the system. In a cement plant, this means that maintenance can be performed during production, minimizing downtime and maximizing output.
4. Compatibility with Legacy Systems:
As part of the AC 400 series, the PM150V08 is compatible with existing ABB controllers (e.g., AC410, AC450) and I/O modules. This ensures that customers can upgrade their systems without replacing the entire infrastructure, reducing costs and complexity.
ABB PM150V08 3BSE009598R1
Typical Applications
The ABB PM150V08 3BSE009598R1 is widely used in industries requiring reliable process control:
-
Steel Manufacturing:
-
Controls heating furnaces (e.g., walking beam furnaces) by adjusting煤气流量 and air flow, maintaining consistent temperature for steel billets.
-
Example: In a steel mill, the PM150V08 receives temperature data from sensors and adjusts the煤气阀门 to keep the furnace at 1200°C, ensuring proper steel heating.
-
-
Cement Production:
-
Manages raw material grinding and kiln firing processes, regulating the flow of raw materials (e.g., limestone, clay) and fuel (e.g., coal) to maintain optimal kiln temperature.
-
Example: In a cement plant, the CPU controls the kiln’s rotation speed and fuel flow to ensure that clinker is produced at the correct temperature, improving product quality.
-
-
Power Generation:
-
Controls boiler feedwater pumps and turbine governors, adjusting the flow of water and steam to maintain optimal power output.
-
Example: In a thermal power plant, the PM150V08 receives data from turbine sensors and adjusts the feedwater pump speed to keep the turbine running at 3000 rpm, ensuring efficient power generation.
-
