ABB PM783F 3BDH000364R0001

Description

Detailed parameter table

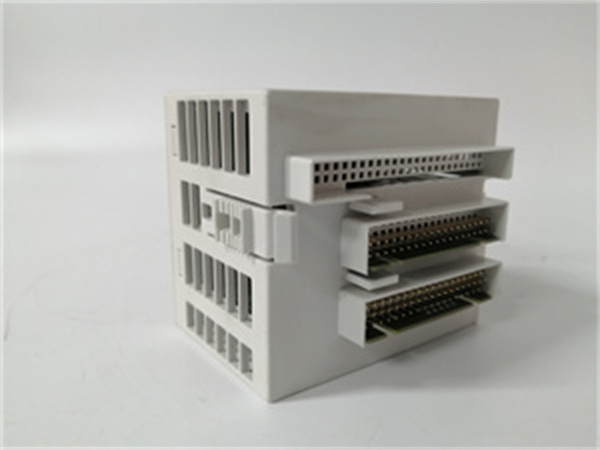

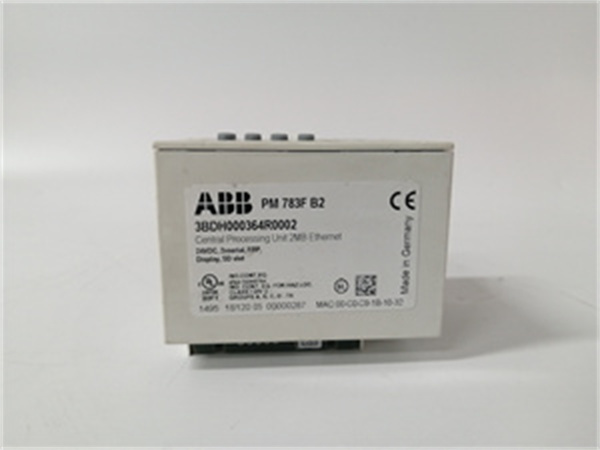

ABB PM783F 3BDH000364R0001

Product introduction

The ABB PM783F 3BDH000364R0001 is a high-performance processor module, serving as the core of ABB’s AC500 programmable logic controller (PLC) system. It is engineered to handle complex automation tasks, process real-time data from I/O modules, and execute control logic in industrial environments.

Equipped with a dual-core ARM Cortex-A9 processor and ample memory, this module delivers powerful processing capabilities to manage large-scale I/O configurations and complex control algorithms. Its support for multiple communication interfaces ensures seamless integration with field devices, HMI panels, and upper-level systems. The ABB PM783F 3BDH000364R0001 plays a pivotal role in enabling the AC500 system to provide reliable, precise, and efficient control of industrial processes across various sectors.

Core advantages and technical highlights

Powerful processing performance: The dual-core 800 MHz ARM Cortex-A9 processor and 512 MB RAM in the ABB PM783F 3BDH000364R0001 ensure fast execution of control logic and efficient handling of large data volumes. This allows it to manage complex automation tasks, such as synchronized motion control in manufacturing lines or multi-loop PID regulation in process plants. Even with thousands of I/O points, the module maintains deterministic response times, critical for time-sensitive applications like high-speed packaging machinery.

Flexible programming and integration: Supporting IEC 61131-3 standard programming languages, the module offers flexibility for engineers to develop control programs using their preferred methods. It seamlessly integrates with ABB’s Automation Builder software, simplifying configuration, programming, and debugging. This compatibility ensures easy migration from legacy systems and allows for customization to specific application requirements, such as batch processing in pharmaceutical production.

Extensive I/O capacity: With support for up to 8192 digital I/O and 2048 analog I/O, the ABB PM783F 3BDH000364R0001 is suitable for large-scale industrial systems. This capacity eliminates the need for multiple processors in complex setups, reducing system complexity and maintenance costs. In a automotive assembly plant with hundreds of sensors and actuators, the module can centrally manage all I/O signals, ensuring coordinated operation of the entire production line.

Robust communication: Equipped with Gigabit Ethernet ports, the module enables high-speed data exchange with HMI systems, SCADA, and other controllers. The inclusion of RS-232/485 and USB interfaces ensures compatibility with legacy devices and simplifies field debugging. This versatile communication capability allows for seamless integration into industrial networks, facilitating data-driven decision-making and remote monitoring in smart factory environments.

Typical application scenarios

In automotive manufacturing, the ABB PM783F 3BDH000364R0001 controls robotic welding cells, conveyor systems, and quality inspection stations. It processes signals from proximity sensors and vision systems to coordinate robot movements, adjust conveyor speeds, and trigger quality checks. Its fast processing ensures precise synchronization of manufacturing steps, improving production efficiency and product quality.

Within food and beverage processing facilities, the module manages batch mixing, filling, and packaging processes. It regulates temperature, pressure, and flow rates in mixing tanks using analog I/O, while digital I/O controls valves, pumps, and packaging machinery. The module’s resistance to harsh environments (wide temperature range and humidity tolerance) ensures reliable operation in washdown areas, adhering to food safety standards.

In water treatment plants, the ABB PM783F 3BDH000364R0001 monitors and controls filtration systems, chemical dosing, and pump stations. It processes data from flow meters, pH sensors, and level transmitters to optimize treatment processes, reduce chemical usage, and ensure compliance with environmental regulations. The optional redundancy feature provides uninterrupted operation, critical for maintaining water supply and preventing contamination risks.

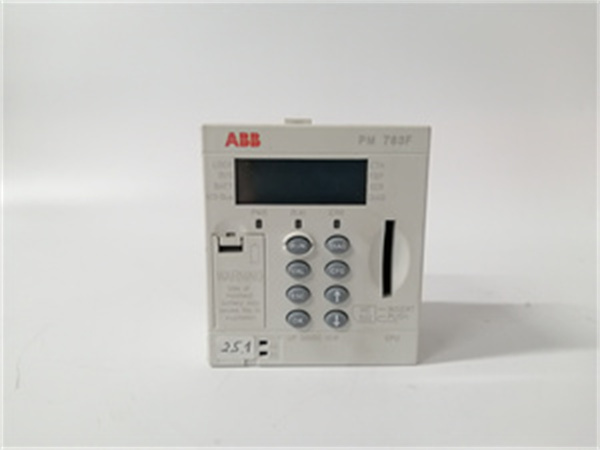

ABB PM783F 3BDH000364R0001

Related model recommendations

ABB PM785F 3BDH000365R0001: A higher-performance variant with a 1 GHz processor and 1 GB RAM, ideal for more demanding applications requiring faster data processing.

ABB AC500 I/O modules (e.g., 500BIO01, 500AI01): Digital and analog I/O modules that connect to the ABB PM783F 3BDH000364R0001 to expand its I/O capacity for specific application needs.

ABB CP600 HMI panels: Human-machine interfaces that display real-time process data from the module, allowing operators to monitor and control industrial processes.

ABB XTB750B01: Terminal bases that simplify wiring between field devices and the ABB PM783F 3BDH000364R0001, ensuring secure and reliable connections.

ABB CI854A: Profibus DP communication modules that extend the module’s connectivity to Profibus networks, enabling integration with legacy devices.

ABB 800xA DCS: A distributed control system that can integrate with the ABB PM783F 3BDH000364R0001 in large-scale industrial plants, providing centralized monitoring and management.

Installation, commissioning and maintenance instructions

Installation preparation: Before installing the ABB PM783F 3BDH000364R0001, ensure the 35mm DIN rail is securely mounted and properly grounded. Verify the operating environment meets the temperature (-25°C to 70°C) and humidity (5-95% RH) requirements. Gather tools: screwdrivers, wire strippers, and a multimeter. Check that the 24 VDC power supply is stable, fused at 2A, and has proper surge protection. Plan cable routing to separate power and signal cables, minimizing electromagnetic interference.

Commissioning steps: Mount the module on the DIN rail and connect the power supply and communication cables. Power on the module and verify the status LED illuminates green (normal operation). Use ABB Automation Builder software to load the control program, configure communication parameters (Ethernet IP addresses, baud rates), and map I/O signals. Test the program by simulating inputs and verifying outputs respond correctly. For redundant setups, configure the standby module and test failover functionality by disconnecting the primary module.

Maintenance suggestions: Inspect the ABB PM783F 3BDH000364R0001 quarterly for loose connections, dust buildup, or signs of corrosion. Clean vents with compressed air to ensure proper cooling. Back up the control program to a secure location monthly to prevent data loss. Monitor system logs and status LEDs regularly to detect faults early. If a communication error occurs, check Ethernet cables and switch ports before troubleshooting the module. For firmware updates, use Automation Builder to ensure compatibility with other system components.

Service and guarantee commitment

The ABB PM783F 3BDH000364R0001 comes with a 36-month warranty from the purchase date, covering manufacturing defects and ensuring compliance with published specifications. ABB guarantees replacement of faulty modules within 48 hours for critical applications, minimizing downtime.

Technical support includes access to ABB’s global engineering team via phone and email, along with online resources such as programming manuals, firmware updates, and troubleshooting guides. Customers can utilize ABB’s local service centers for on-site assistance with installation and commissioning. Optional extended service contracts offer preventive maintenance, priority support, and training, ensuring the module operates reliably throughout its 10-year design lifespan.
