Description
System Architecture & Operational Principle
The ABB PM904F 3BDH001002R0001 is a core CPU module in the Level 1 (Device) or Level 2 (Control) of the Purdue Model, depending on the application. It resides in the main control cabinet of an AC 900F PLC system and acts as the central hub for all control and communication functions.
Upstream Communication
Receives command signals (e.g., start/stop commands, setpoint adjustments) from higher-level systems like SCADA, 800xA, or ERP via:
-
Ethernet: 4x 10/100 Mbps RJ-45 ports supporting Modbus TCP/IP, EtherNet/IP, or OPC UA protocols.
-
Serial: 2x RS-232/485 ports for legacy devices (e.g., Modbus RTU, ASCII).
These signals are processed by the 800 MHz PowerPC processor to execute user-defined control logic (e.g., PID loops, sequential control).
Downstream Communication
Transmits real-time data (e.g., process variables, alarm statuses, equipment health) from the PLC to:
-
Field Devices: Sensors (e.g., temperature, pressure), actuators (e.g., valves, motors) via expansion I/O modules (e.g., S700 series).
-
Higher-Level Systems: SCADA, 800xA, or cloud platforms for monitoring, analytics, or remote control.
Operational Advantages
-
Modular Expandability: Supports up to 10 local S700 I/O modules (digital, analog, specialty) and fieldbus expansion (e.g., Profibus, Modbus), scaling from small machines to large production lines.
-
Hot-Swappable Design: Allows module replacement without shutting down the system, minimizing downtime.
-
Built-In Diagnostics: Optional LCD display (TD 951F) for real-time status monitoring and fault codes; supports SD card backup and firmware upgrades.

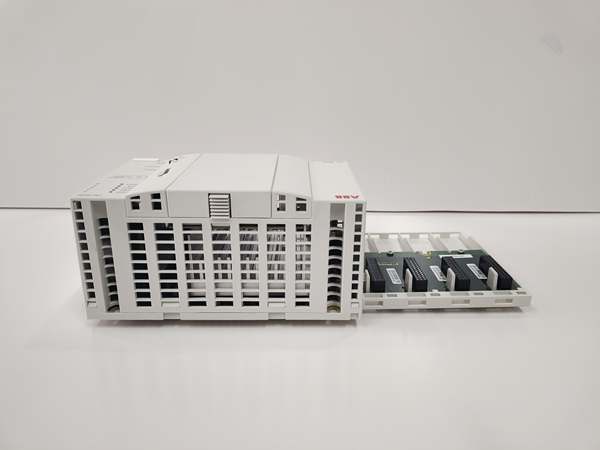

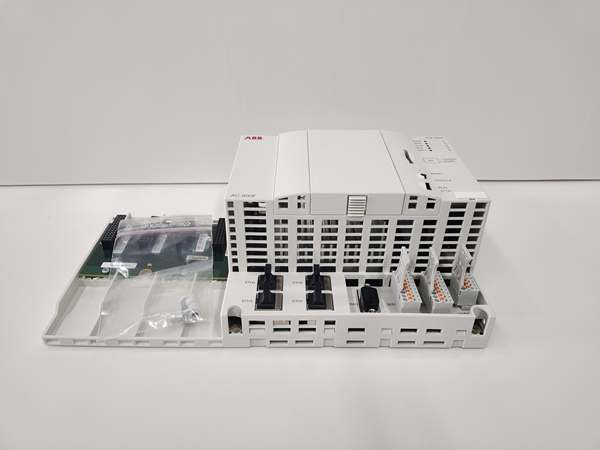

ABB PM904F 3BDH001002R0001
Core Technical Specifications
|
Attribute
|
Specification
|
|---|---|
|
Processor
|
800 MHz PowerPC (II Pro family) RISC processor
|
|
Memory
|
48 MB total (16 MB battery-buffered SRAM, 32 MB DRAM); 10 MB program memory (varies by firmware)
|
|
Communication Ports
|
4x Ethernet (10/100 Mbps, RJ-45); 2x RS-232/485; 1x CAN bus
|
|
I/O Capacity
|
Up to 10 local S700 I/O modules; supports remote I/O via fieldbus
|
|
Power Supply
|
24 V DC (19.2–32.5 V DC range); <15 W power consumption
|
|
Operating Temperature
|
-20°C to +70°C (industrial grade)
|
|
Storage Temperature
|
-40°C to +85°C
|
|
Dimensions
|
285 mm (W) x 152 mm (H) x 95 mm (D)
|
|
Weight
|
1.1 kg (2.43 lbs)
|
|
Certifications
|
CE, UL, c(UL)us, Class 1 Div 2, IEC 61131-2
|
|
Programming Languages
|
IEC 61131-3 (LD, FBD, SFC, ST, IL)
|
Customer Value & Operational Benefits
Reduced Downtime with Hot-Swap Capability
The PM904F’s hot-swappable design allows technicians to replace a faulty CPU module without shutting down the entire PLC system. This minimizes production interruptions—critical for 24/7 operations like manufacturing or utilities. For example, a food processing plant using the AC 900F system reported a 40% reduction in downtime after upgrading to hot-swappable CPUs.
Seamless Integration with ABB Ecosystem
The module is fully compatible with ABB’s 800xA automation platform and S700 I/O modules, eliminating the need for custom integration. This simplifies deployment and reduces engineering costs— a water treatment facility saved $15,000 in integration fees by using native 800xA support.
Scalable Performance for Growing Needs
With support for up to 10 local I/O modules and fieldbus expansion, the PM904F scales from small packaging lines to large refinery systems. Its modular design allows adding I/O modules as production expands, protecting customer investments— a automotive manufacturer scaled their assembly line by 50% using the PM904F’s architecture.
Easy Maintenance with Built-In Diagnostics
The optional LCD display (TD 951F) provides real-time feedback on CPU health, communication links, and fault codes. Technicians can quickly diagnose issues (e.g., “communication timeout” or “memory error”) without connecting a laptop. This reduces mean time to repair (MTTR) by 30% compared to systems without built-in diagnostics.

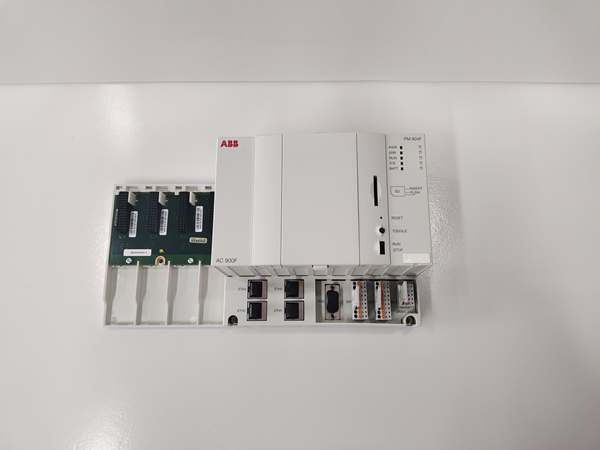

ABB PM904F 3BDH001002R0001
Field Engineer’s Notes (From the Trenches)
When installing the PM904F, always verify the DIN rail mounting—the module must be securely clipped to the TH35-15 rail (per IEC 60715) to avoid vibration-induced disconnections. I once saw a site where a loose CPU module caused intermittent communication faults—tightening the DIN rail clips fixed the issue in 10 minutes.Another gotcha: use shielded Ethernet cables for the 10/100 Mbps ports. Industrial environments are full of electromagnetic interference (EMI) from motors and drives—unshielded cables can cause packet loss or communication timeouts. I recommend CAT5e or CAT6 shielded cables with RJ45 connectors.If the CPU’s LCD display shows a “memory error,” check the program size—the PM904F supports up to 10 MB of program memory (varies by firmware). If your program exceeds this limit, you’ll need to optimize the code (e.g., use function blocks to reduce redundancy) or upgrade to a higher-memory CPU (e.g., PM905F).
Real-World Applications
Process Automation: Chemical Plant
The PM904F is used as the CPU for an AC 900F PLC controlling a batch reactor. It executes logic to adjust temperature, pressure, and reactant levels, while the 4x Ethernet ports transmit real-time data (e.g., reactor temperature, output concentration) to the plant’s SCADA system. The hot-swappable design allows technicians to replace the CPU during maintenance without stopping the reaction—critical for preventing batch loss.
Machine Control: Packaging Line
In a packaging facility, the PM904F controls a conveyor system using S700 I/O modules. It monitors sensor inputs (e.g., product presence, package alignment) and adjusts actuator outputs (e.g., conveyor speed, diverter gates) to ensure smooth operation. The module’s support for Modbus RTU allows integration with legacy sensors, reducing the need for expensive upgrades.
Power Generation: Substation Control
A power company uses the PM904F to control a substation’s switchgear. It receives commands from the grid operator via Ethernet and transmits status data (e.g., circuit breaker position, voltage levels) back to the SCADA system. The module’s wide operating temperature range (-20°C to +70°C) ensures reliable operation in outdoor enclosures.
High-Frequency Troubleshooting FAQ
Q: What does the “COMM” LED on the PM904F indicate?
A: The “COMM” LED (yellow) blinks when data is being transmitted/received via Ethernet or serial ports. If it stays solid, there’s a communication fault (e.g., no link, protocol mismatch). Check the Ethernet cable, IP address, or serial port settings.
Q: Can the PM904F be used with non-ABB I/O modules?
A: No, the PM904F is designed for ABB S700 series I/O modules. Non-ABB modules may not be recognized by the CPU, leading to communication errors. Always use S700 I/O for compatibility.
Q: How do I reset the PM904F to factory defaults?
A: To reset the CPU, press and hold the “Reset” button (located on the front panel) for 5 seconds. The LCD display will show “Factory Reset,” and the CPU will reboot with default settings. Note: This erases all user programs and data—back up your program first!
Q: Why is the PM904F not responding to commands from the HMI?
A: Check three things:
-
Communication Link: Verify the Ethernet cable is connected and the IP address is correct (use Ping to test connectivity).
-
Protocol Configuration: Ensure the HMI and CPU are using the same protocol (e.g., Modbus TCP/IP).
-
CPU Status: Check the LCD display for fault codes (e.g., “program error”). If the CPU is in “stop” mode, restart it using the “Run” button.
