ABB PP877 3BSE069272R2

Description

Detailed parameter table

ABB PP877 3BSE069272R2

Product introduction

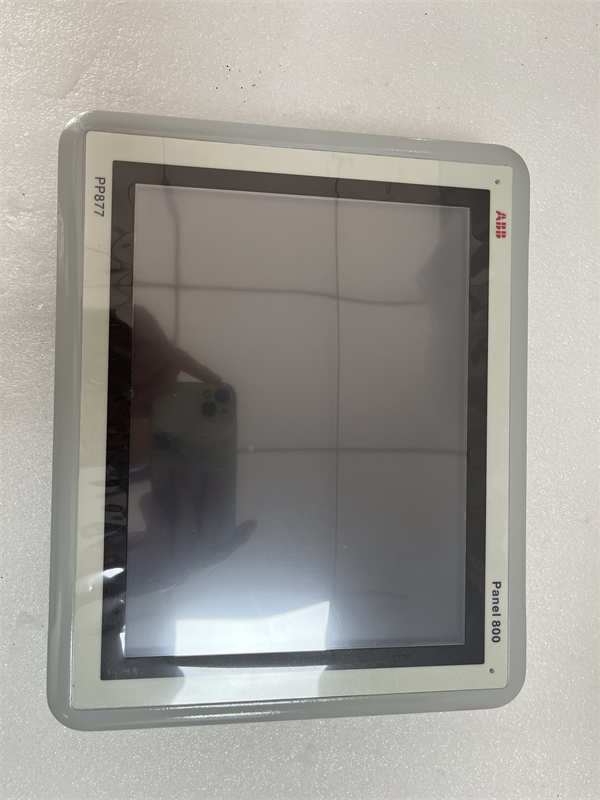

The PP877 3BSE069272R2 is a 10.4 – inch operator panel belonging to ABB’s Panel 800 version 6 series, crafted to meet the demands of industrial automation applications. It serves as a crucial human – machine interface, enabling seamless interaction between operators and industrial processes.

Featuring a TFT – LCD display with LED backlight, the PP877 3BSE069272R2 offers a clear and bright visual experience. The 640 × 480 pixel resolution, in a 4:3 aspect ratio, ensures that all information, from process data to control commands, is presented with clarity. The resistive touch screen allows for intuitive operation, making it easy for operators to navigate through various functions. Powered by an ARM9 400 MHz processor and equipped with 128 MB of DDR2 main memory and 80 MB of application storage, this panel can handle multiple tasks efficiently. It also supports external storage via an SD card slot, providing flexibility for data management. In the context of industrial automation, the PP877 3BSE069272R2 acts as a central hub for monitoring and controlling processes, enhancing productivity and safety.

Core advantages and technical highlights

High – quality display: The TFT – LCD display with a brightness of 450 cd/m² and LED backlight produces sharp and vivid images. Whether in a brightly lit factory or a dimly lit control room, operators can easily view the information on the screen. The wide viewing angles ensure that the display remains legible from different positions, which is essential in shared control environments.

Rugged construction: With an IP66 front protection rating, the PP877 3BSE069272R2 is highly resistant to dust and water ingress. This makes it suitable for use in harsh industrial environments, such as factories with high levels of dust or areas where water splashing may occur. The rugged design ensures long – term reliability, reducing the need for frequent replacements.

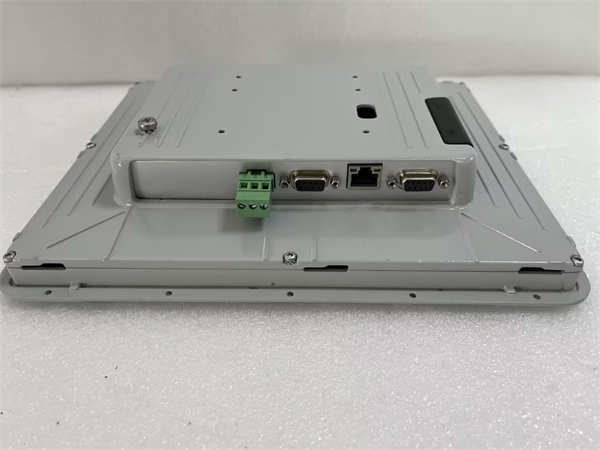

Versatile connectivity: Equipped with an Ethernet port (1 × 10/100 base – T shielded RJ 45), 1 USB 2.0 port, and 2 combined serial ports (RS 232, RS 422/485), the panel offers multiple options for connecting to other devices. It can communicate with PLCs, sensors, and other industrial equipment, enabling seamless data transfer and integration within the automation system.

Powerful processing capabilities: The ARM9 400 MHz processor, along with the sufficient main memory and application storage, allows the PP877 3BSE069272R2 to run complex applications smoothly. It can quickly process incoming data, update display information, and execute control commands, ensuring real – time response in industrial processes.

Typical application scenarios

In manufacturing plants, the PP877 3BSE069272R2 can be used to monitor and control production lines. Operators can use the touch screen to start or stop machinery, adjust production parameters, and view real – time production data such as output quantity, defect rates, and machine status. For example, in an automotive assembly plant, the panel can display the status of each assembly station, allowing operators to quickly identify and address any bottlenecks or issues.

In the energy industry, the PP877 3BSE069272R2 is valuable for monitoring and controlling power generation and distribution systems. It can show real – time power output, voltage levels, and equipment status. Operators can use it to remotely control generators, switchgear, and other power – related equipment. In a power plant, the panel can be used to monitor the performance of turbines, boilers, and other critical components, ensuring efficient and safe operation.

For building automation systems, the PP877 3BSE069272R2 can be installed in control rooms to manage lighting, heating, ventilation, and air – conditioning (HVAC) systems. Facility managers can use the panel to set schedules, adjust temperature and humidity levels, and monitor the energy consumption of different systems. In a large commercial building, the panel provides a centralized interface for controlling and optimizing various building services.

Related model recommendations

ABB PP875: Another operator panel in the Panel 800 series. It is a more compact option compared to the PP877 3BSE069272R2, suitable for applications where space is limited. It shares some of the basic features like the TFT – LCD display and communication interfaces but may have a smaller screen size and less processing power.

ABB PP881: Offers a larger display size, providing more screen real – estate for showing detailed process information. It is ideal for applications where a more comprehensive view of multiple processes or complex data visualizations is required, such as in large – scale industrial control rooms.

ABB PP883: This model may have enhanced processing capabilities and additional features compared to the PP877 3BSE069272R2. It could be used in more demanding applications that require faster data processing and handling of complex control algorithms.

ABB PP886: With different form factors or additional functionality, it can be used in specialized industrial settings. For example, it might have unique mounting options or more advanced security features for applications where these are crucial.

ABB PP895: A high – end option in the series, it may offer top – of – the – line features such as higher – resolution displays, more powerful processors, and extended environmental capabilities. It is suitable for applications in extreme environments or where the highest level of performance is required.

ABB PP877 3BSE069272R2

Installation, commissioning and maintenance instructions

Installation preparation: Before installing the PP877 3BSE069272R2, ensure that the installation area is clean and free from excessive dust, moisture, and strong electromagnetic interference. The mounting surface should be sturdy enough to support the panel’s weight. Prepare the necessary tools, such as screwdrivers for panel mounting and cable connectors for wiring. Check the power supply voltage to ensure it is within the specified range of +24 V DC (18 – 32 V DC). When handling the panel, use antistatic precautions to prevent damage to the sensitive components. Mount the panel according to the VESA 75 × 75 standard or panel – mount requirements, making sure all connections are secure.

Maintenance suggestions: Regularly clean the touch screen of the PP877 3BSE069272R2 using a soft, non – abrasive cloth to remove fingerprints and dust. Check the operation of the touch screen periodically to ensure that it responds accurately to touch commands. Monitor the panel’s temperature during operation to ensure it remains within the specified -10 °C to +60 °C range. If there are any issues with the display, such as abnormal brightness or pixel defects, check the backlight and display connections. In case of software – related problems, update the panel’s firmware using the appropriate ABB software tools. Replace the panel if there are irreparable hardware failures, ensuring that the replacement unit is properly configured with the correct settings.

Service and guarantee commitment

ABB provides a comprehensive service and guarantee commitment for the PP877 3BSE069272R2. The product comes with a standard warranty period, during which ABB will repair or replace the panel in case of any manufacturing defects. ABB’s global technical support team is available to assist customers with installation, commissioning, and troubleshooting. They can offer remote support through online communication channels or, if necessary, on – site visits by trained technicians. ABB also provides regular software updates to enhance the functionality and performance of the PP877 3BSE069272R2. This commitment reflects ABB’s confidence in the quality of the product and its dedication to ensuring customer satisfaction in industrial automation applications.
