ABB PP886 3BSE092980R1

Description

Detailed parameter table

ABB PP886 3BSE092980R1

Product introduction

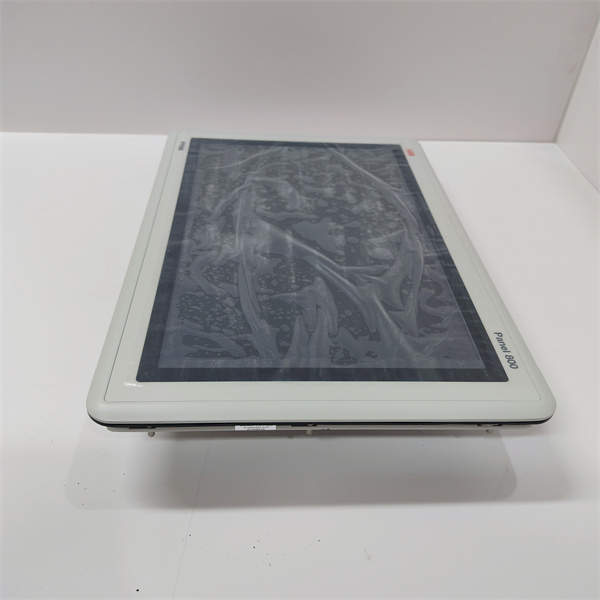

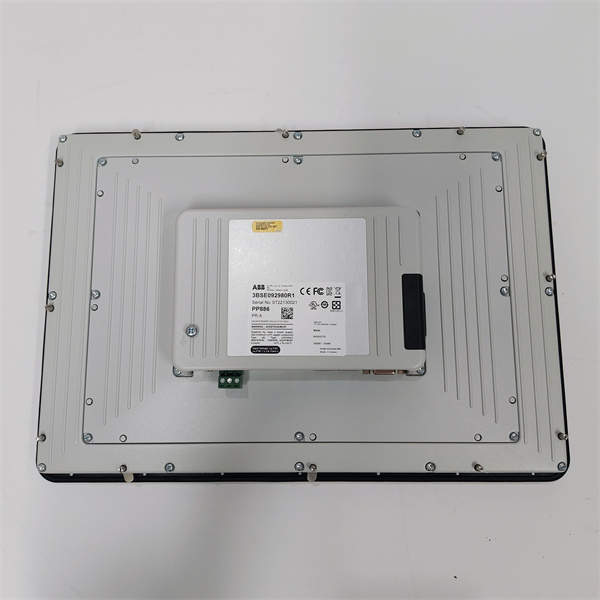

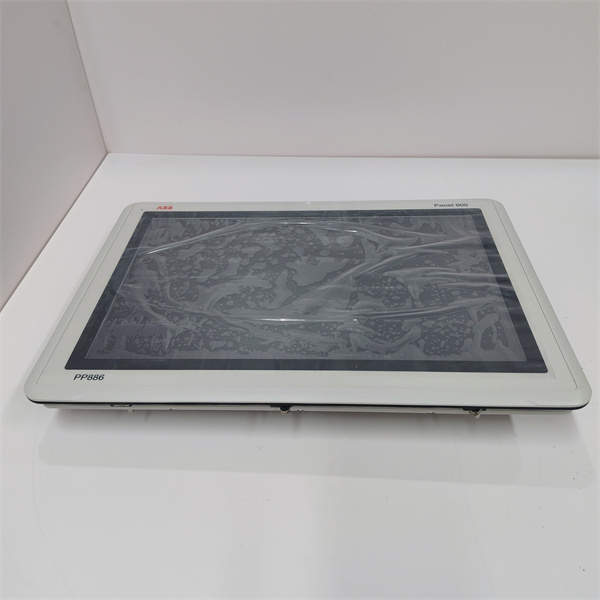

The ABB PP886 3BSE092980R1 is a high – performance touch screen panel that is an integral part of the user – friendly and intuitive Panel 800 family. Engineered by ABB, a globally renowned leader in industrial technology, this panel is designed to bring advanced functionality and ease – of – use to industrial process automation.

With its 15.4″ TFT/LED display, the PP886 offers operators a clear and vibrant view of process data. The resistive touch interaction type allows for precise control, making it simple for operators to navigate through various applications and interfaces. It serves as a crucial human – machine interface (HMI) device, facilitating seamless communication between operators and industrial control systems. Whether it’s monitoring real – time data, adjusting process parameters, or receiving alerts, the PP886 is up to the task.

Core advantages and technical highlights

High – resolution display for enhanced visibility: The 15.4″ TFT/LED display with a resolution of 1280 x 800 (16:10) and a brightness of 450 cd/m² provides sharp and vivid visuals. In industrial settings where quick and accurate data interpretation is essential, the high – resolution graphics ensure that operators can clearly see process trends, alarm notifications, and detailed system information. This clarity reduces the chances of misinterpretation, leading to more efficient decision – making and improved process control.

Powerful processing capabilities: Equipped with an Arm9 1 GHz processor and 1 GB of main memory, the PP886 can handle complex applications and multitasking with ease. It can rapidly process data received from various sensors and control systems, enabling real – time updates on the display. This processing power also allows for smooth operation of multiple software applications simultaneously, such as running diagnostic tools while monitoring production processes, without experiencing significant lag or slowdown.

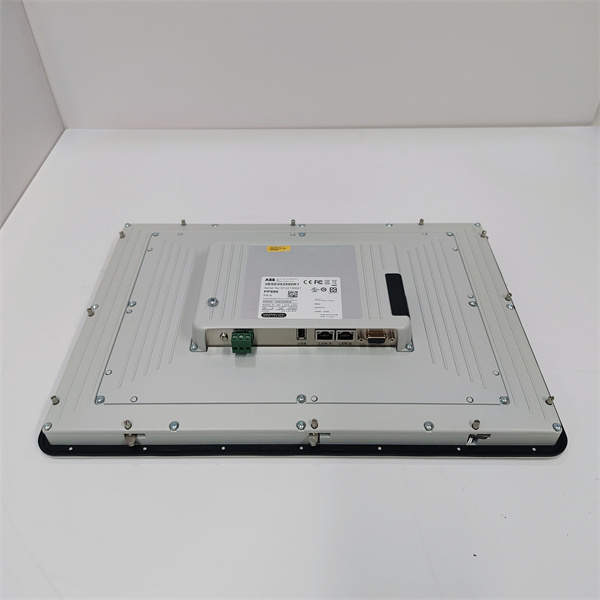

Ample storage and connectivity options: The 2 GB SSD, with 1.5 GB available for application storage, provides enough space to store necessary software, configuration files, and historical data. The two 10/100 Base – T Ethernet ports enable seamless connection to industrial networks, allowing for data transfer to and from other control devices, servers, or cloud – based platforms. The two USB 2.0 ports can be used for connecting external devices like keyboards, mice, or USB drives for data backup or software updates. The presence of serial ports (RS 232, RS 422/485) further expands its compatibility with a wide range of legacy and specialized industrial equipment.

Robust construction for harsh environments: Housed in a white powder – coated aluminum frame, the PP886 is built to last. The front of the panel has an IP 65 rating, which means it is protected against dust and water jets, making it suitable for use in wet and dusty industrial environments. The rear has an IP20 rating, protecting the internal components from larger solid objects. It can withstand temperature variations from -10 °C to +60 °C during operation and -20 °C to +70 °C during storage. The ability to endure vibrations of 1 g and shocks of 15 g ensures that it remains operational even in environments with mechanical stress, such as manufacturing plants with heavy machinery.

Easy configuration with ABB’s Panel Builder tool: Configuration of the PP886 is made straightforward using ABB’s Panel Builder tool. This tool, which is similar to the Microsoft Windows environment, offers multi – language support. Engineers can quickly and efficiently program the panel according to the specific requirements of the industrial application. The tool also contains a large library of templates and graphics for a variety of process applications, reducing the development time. Additionally, applications can be simulated and run directly from the Panel Builder 800 before deployment, allowing for thorough testing and debugging.

Typical application scenarios

Manufacturing industry: In a large – scale automotive manufacturing plant, the PP886 can be used as an HMI for the production line control system. Operators can use the touch screen to monitor the progress of vehicle assembly, check the status of robotic arms and conveyor belts, and adjust production speeds in real – time. For example, if a particular station on the assembly line is experiencing a bottleneck, the operator can quickly access the relevant control interface on the PP886, make the necessary adjustments, and view the impact of the changes on the overall production process.

Power generation and distribution: In a power plant, the PP886 can serve as a monitoring and control interface for the power generation process. It can display real – time data on parameters such as voltage, frequency, and power output of generators. Operators can use the panel to remotely control the start – up and shut – down of generators, adjust the excitation levels, and monitor the performance of transformers and other electrical equipment. In power distribution systems, it can be used to monitor the status of circuit breakers, switches, and power meters, and receive alerts in case of any faults or abnormal conditions.

Process industries (e.g., chemical, food and beverage): In a chemical plant, the PP886 can be used to monitor and control chemical reactions. Operators can view real – time data on temperature, pressure, and flow rates of various chemicals in the reactors and pipelines. They can use the touch screen to adjust the setpoints of control valves, start or stop pumps, and receive alarms in case of any deviations from the desired process conditions. In the food and beverage industry, it can be used to control the filling and packaging processes. Operators can monitor the filling levels of bottles or cans, adjust the speed of packaging machines, and ensure product quality by checking for any defects or inconsistencies.

Building automation: In large commercial buildings, the PP886 can be integrated into the building management system. It can be used to control and monitor the heating, ventilation, and air – conditioning (HVAC) systems. Operators can adjust the temperature, humidity, and air flow rates in different zones of the building using the touch screen interface. It can also be used to control the lighting systems, security systems, and access control systems. For example, an operator can use the PP886 to turn on or off lights in specific areas, grant or revoke access permissions, and receive notifications in case of any security breaches or system failures.

ABB PP886 3BSE092980R1

Comparison with related models in the series

Compared with ABB PP881 (3BSE092978R1): The PP881 also belongs to the Panel 800 family but has a smaller display size, typically around 10.1″. While it shares some basic features with the PP886, such as being configured with ABB’s Panel Builder tool, the PP886 offers a larger and higher – resolution display, which is more suitable for applications that require the visualization of complex data or multiple process parameters simultaneously. The PP886 also has more powerful processing capabilities, with its Arm9 1 GHz processor compared to the potentially less powerful processor in the PP881, making it better for handling more resource – intensive applications.

Compared with other brands’ similar – function modules: ABB’s PP886 stands out due to its seamless integration with ABB’s comprehensive range of industrial control systems and software. Many competing touch screen panels may lack this level of integration, which can lead to compatibility issues when used in multi – component industrial setups. ABB’s long – established reputation for reliability and quality also gives the PP886 an edge. Additionally, ABB offers extensive technical support and a global service network. In case of any issues with the panel, customers can rely on ABB’s experts for prompt assistance, whether it’s for installation, configuration, or troubleshooting. This level of support may not be as readily available with some other brands.

Installation, commissioning and maintenance instructions

Installation preparation: Before installation, ensure that the installation area is clean and free from dust, debris, and excessive moisture. Check the dimensions of the mounting location to ensure a proper fit for the PP886 panel. Verify that the power supply meets the 24 V DC (18 to 32 VDC) requirements. Use appropriate tools to handle the panel carefully, considering its weight of 3.85 kg. Also, ensure that the area has proper ventilation to prevent overheating during operation.

Commissioning process: After installation, connect the PP886 to the relevant devices in the industrial system according to the wiring diagram provided in the product documentation. Ensure all connections, including Ethernet, USB, and serial ports, are secure to prevent signal loss or electrical malfunctions. Power on the system and use ABB’s Panel Builder tool (version 6.2 or the required version) to perform an initial self – test of the panel. Calibrate the touch screen if necessary to ensure accurate touch responses. Follow the software – based programming instructions to configure the panel according to the specific requirements of the industrial application. Test the panel by simulating different operating scenarios, such as data input, system control commands, and alarm notifications, to ensure that it functions as expected and that data is being transmitted and received correctly between the panel and other connected devices.

Maintenance suggestions: Regularly inspect the PP886 for any signs of physical damage, such as cracks in the display or housing, loose connections, or signs of overheating. Clean the display and the housing periodically using a suitable, non – abrasive cleaning agent to remove any dust, dirt, or fingerprints that may have accumulated. Check the communication status of the panel with other devices in the network at regular intervals to ensure seamless data transfer. If there are any software updates available for the panel or the Panel Builder tool, install them in a timely manner to benefit from the latest features, bug fixes, and security enhancements. In case of any abnormal behavior or error messages, refer to the troubleshooting section of the product manual or contact ABB’s technical support team for assistance. If replacement parts are needed, use only ABB – approved components to ensure the continued performance and reliability of the panel.

Service and guarantee commitment

ABB offers a standard [warranty period] warranty for the PP886 3BSE092980R1, covering any manufacturing defects. ABB’s global technical support team is available around the clock to assist customers with installation, commissioning, programming, and troubleshooting. They can provide remote support through online communication channels, offering real – time guidance and solutions. In cases where on – site assistance is required, trained technicians can be dispatched to the customer’s location. ABB also provides regular product updates, including software upgrades and technical documentation, to help customers optimize the performance of the PP886 panel and stay informed about any new features or improvements. This commitment reflects ABB’s dedication to ensuring the long – term reliability and performance of its industrial products.
