System Architecture & Operational Principle
The ABB RDCO-02C is a fiber optic communication module designed for Level 1 (Device) or Level 2 (Control) of the Purdue Model, depending on the application. It resides within the ACS800 VFD’s control cabinet and connects directly to the drive’s RMIO (Motor Control and I/O) board.
Upstream Communication
Receives command signals (e.g., speed setpoints, start/stop commands) from higher-level control systems (PLCs, SCADA) via fiber optic channels (CH0: overriding system/fieldbus adapter; CH2: Master/Follower link). The module converts these optical signals to electrical signals for the VFD’s internal processing.
Downstream Communication
Transmits real-time data (e.g., motor speed, current, fault codes) from the VFD to external systems using the same fiber optic links (CH1: I/O options/supply unit; CH3: PC tool for ACS800). This bidirectional communication enables precise monitoring and adjustment of the drive’s operation.
Operational Advantages
-
Fiber Optic Reliability: Eliminates electromagnetic interference (EMI) common in industrial environments, ensuring consistent data transmission.
-
High-Speed Data Exchange: Supports up to 10 Mbit/s (CH2/CH3) for real-time control, critical for applications like motor synchronization or process automation.
-
Modular Design: Plug-and-play installation reduces setup time; compatible with ACS800’s RMIO board for seamless integration.
Core Technical Specifications
|
Attribute
|
Specification
|
|---|---|
|
Physical Interface
|

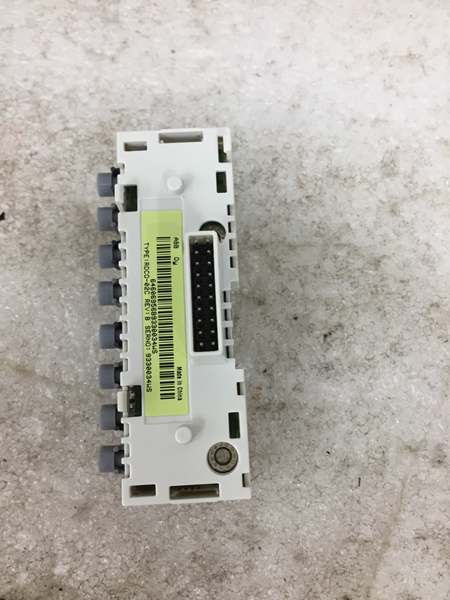

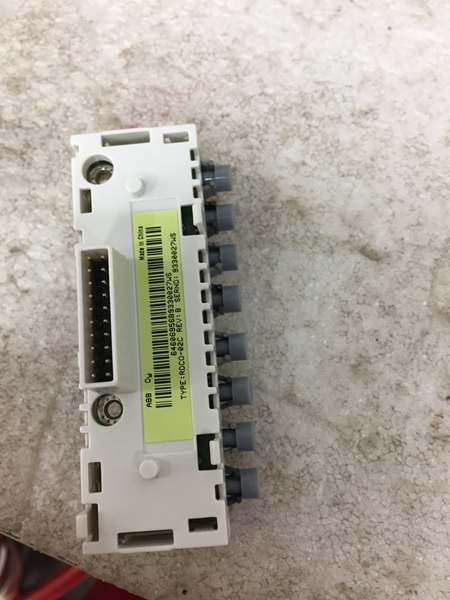

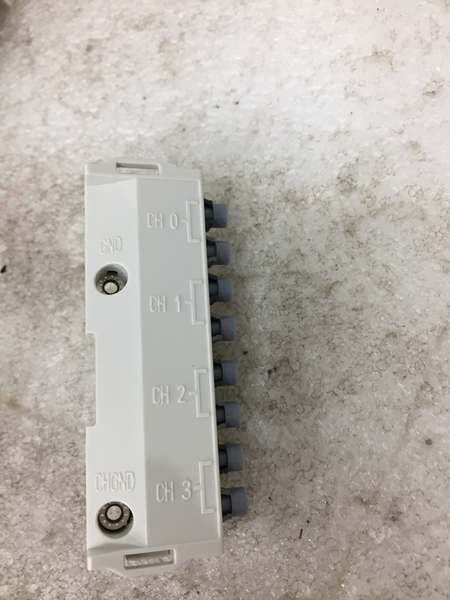

4x fiber optic channels (CH0-CH3); 20-pin pinheader for RMIO board connection
|
|
Signal Type
|
Fiber optic (Agilent Technologies Versatile Link components)
|
|
Channel Configuration
|
CH0: 5 MBd (overriding system); CH1: 5 MBd (I/O options); CH2: 10 MBd (Master/Follower); CH3: 10 MBd (PC tool)
|
|
Data Rate
|
1/2/4 Mbit/s (configurable via drive firmware)
|
|
Power Supply
|
5V DC ±10% (supplied by ACS800 RMIO board)
|
|
Current Consumption
|
Max 200 mA
|
|
Protection Rating
|
IP20 (panel-mountable)
|
|
Operating Temperature
|
-20°C to +60°C (industrial grade)
|
|
Storage Temperature
|
-40°C to +85°C
|
|
Dimensions
|
95 mm (W) x 30 mm (H) x 34 mm (D)
|
|
Weight
|
0.11 kg (0.24 lbs)
|
|
Electromagnetic Immunity
|
IEC 1000-4-2 (Industrial second environment limits); IEC 1000-4-3/4/6
|
ABB RDCO-02C
Customer Value & Operational Benefits
Reliable Communication in Harsh Environments
The RDCO-02C’s fiber optic links eliminate EMI from motors, drives, or power lines, ensuring consistent data transmission. This reduces the risk of communication failures that could lead to unplanned downtime—critical for 24/7 operations like manufacturing or utilities.
High-Speed Data for Precise Control
With support for 10 Mbit/s (CH2/CH3), the module enables real-time synchronization of multiple ACS800 drives (e.g., in conveyor systems or pump stations). This precision improves process efficiency and reduces mechanical stress on equipment.
Easy Integration & Maintenance
The module’s plug-and-play design allows for quick installation or replacement without disassembling the VFD. Its compatibility with ACS800’s RMIO board eliminates the need for custom wiring, reducing setup time and costs.
Scalable for Future Expansions
The RDCO-02C’s 4-channel configuration supports adding fieldbus adapters (e.g., PROFIBUS DP) or I/O modules, allowing facilities to scale their automation systems without replacing the entire drive.
Field Engineer’s Notes (From the Trenches)
When installing the RDCO-02C, always use fiber optic cleaning kits (alcohol wipes, lint-free cloths) to clean the fiber connectors before mating. Dust or oil on the connectors can cause signal attenuation—something I’ve seen cost hours of troubleshooting time.Another gotcha: match the fiber type to the channel’s data rate. For CH0/CH1 (5 MBd), use plastic optical fiber (POF); for CH2/CH3 (10 MBd), use hard clad silica (HCS) fiber. Using the wrong type will result in poor signal quality. Check the ACS800’s technical manual for the recommended fiber specifications.If the module’s status LEDs (e.g., CH0: “LINK”) are off, verify the RMIO board’s power supply. The RDCO-02C relies on the RMIO board for 5V DC—if the RMIO board isn’t powered, the module won’t function. Use a multimeter to measure the voltage at the RMIO board’s power terminals.
Real-World Applications
-
Motor Synchronization in Conveyor Systems:The RDCO-02C connects multiple ACS800 drives to a Siemens S7-1500 PLC via fiber optic links (CH2: Master/Follower). This enables precise speed synchronization of conveyor belts, preventing material jams or spills.
-
Pump Station Monitoring in Water Treatment:Used to transmit real-time data (e.g., pump speed, flow rate) from an ACS800 drive to a SCADA system via CH3 (PC tool). The fiber optic link eliminates EMI from nearby motors, ensuring reliable communication even in wet, harsh environments.
ABB RDCO-02C
High-Frequency Troubleshooting FAQ
Q: What do the status LEDs on the RDCO-02C indicate?
A: The module has 4 LEDs (one per channel):
-
CH0-CH3: Green (“LINK”) indicates an active fiber optic link; off indicates no connection or signal loss.
-
FAULT: Red (if present) indicates a module fault (e.g., power supply issue). Check the ACS800’s diagnostic buffer for detailed fault codes.
Q: Can the RDCO-02C be used with non-ACS800 VFDs?
A: No, the RDCO-02C is specifically designed for ABB ACS800 series VFDs. It relies on the ACS800’s RMIO board for power and communication protocol (e.g., DDCS). For non-ACS800 VFDs, use an ABB-compatible communication module (e.g., AINT-24C for ACS880).
Q: How do I replace the RDCO-02C?
A: Follow these steps:
-
Power Down: Turn off the ACS800 VFD and disconnect it from the power supply.
-
Remove Cover: Unscrew the VFD’s front cover to access the RMIO board.
-
Disconnect Fiber Optics: Label and disconnect the fiber optic cables from the RDCO-02C’s channels.
-
Remove Module: Unscrew the RDCO-02C from the RMIO board (use a Phillips screwdriver).
-
Install New Module: Secure the new RDCO-02C to the RMIO board and reconnect the fiber optics (ensure correct channel mapping).
-
Power Up: Turn on the VFD and verify the module’s operation (check the status LEDs).
Q: Why is the RDCO-02C’s CH2 channel not linking to the Master drive?
A: Check three things first:
-
Fiber Cable: Ensure the HCS fiber cable is securely connected to CH2 and the Master drive’s fiber port.
-
Data Rate: Verify the Master and Slave drives are configured for the same data rate (e.g., 10 Mbit/s).
-
Channel Assignment: Confirm CH2 is assigned to the Master/Follower link in the ACS800’s firmware (via DriveWindow software).
