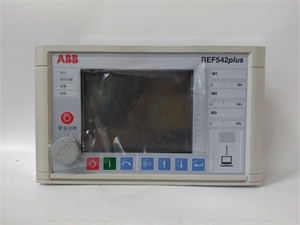

ABB REF542PLUS

Product introduction

The ABB REF542PLUS is a advanced digital protection relay designed for medium-voltage electrical distribution networks, belonging to ABB’s esteemed REF series of power system protection devices. This intelligent relay combines robust protection capabilities with sophisticated communication features to ensure the safe and efficient operation of electrical assets.

ABB REF542PLUS serves as a critical safeguard for transformers, motors, and feeder circuits, detecting and isolating faults within milliseconds to minimize downtime and prevent equipment damage. Its programmable logic allows customization to specific network requirements, making it suitable for diverse applications from industrial plants to utility grids. As a key component in modern power management systems, ABB REF542PLUS not only provides reliable protection but also enables remote monitoring and control, enhancing overall grid visibility and operational flexibility.

Core advantages and technical highlights

Comprehensive protection coverage: ABB REF542PLUS integrates over 20 protection functions, including advanced features like directional overcurrent and voltage-controlled overcurrent, to address various fault scenarios. This versatility eliminates the need for multiple standalone devices, reducing panel space and installation complexity.

Intelligent communication: Equipped with IEC 61850 Ed. 2.1 compliance, ABB REF542PLUS supports seamless integration into smart grid architectures. Its GOOSE (Generic Object-Oriented Substation Event) messaging enables real-time data exchange with other intelligent electronic devices (IEDs), facilitating fast and reliable system coordination.

User-friendly configuration: ABB REF542PLUS features a intuitive HMI with a backlit LCD display and navigational buttons, allowing easy parameter setting and status monitoring without additional software. ABB’s PCM600 configuration tool further simplifies advanced programming, with drag-and-drop logic for custom protection schemes.

Enhanced reliability: Built with high-quality components and a rugged design, ABB REF542PLUS maintains performance in harsh environments, withstanding voltage surges up to 4 kV and vibration levels of 2 g. Its redundant power supply option (24 V DC/110 V AC) ensures uninterrupted operation even during power fluctuations.

Typical application scenarios

In industrial facilities, ABB REF542PLUS protects critical motor circuits in manufacturing plants, where unexpected downtime can result in significant production losses. Its thermal overload protection prevents motor burnout due to excessive current, while its fast response to short circuits minimizes damage to expensive equipment. The relay’s Modbus integration allows seamless connection to plant SCADA systems, enabling centralized monitoring of electrical assets.

Within utility distribution networks, ABB REF542PLUS safeguards medium-voltage feeders, ensuring reliable power supply to residential and commercial areas. Its IEC 61850 compatibility facilitates integration into digital substations, supporting remote operation and condition-based maintenance. The relay’s ability to log up to 500 events with time-stamping (accuracy ±1 ms) aids in fault analysis and system optimization.

In renewable energy installations, such as solar farms and wind parks, ABB REF542PLUS protects inverter connections and grid tiepoints. Its voltage protection functions prevent grid instability caused by fluctuating renewable generation, while communication capabilities enable compliance with grid codes requiring real-time data reporting.

ABB REF542PLUS

Related model recommendations

ABB REF543PLUS: A higher-capacity variant of ABB REF542PLUS with enhanced processing power, designed for complex protection schemes in large industrial networks.

ABB REF615: A feeder protection relay complementary to ABB REF542PLUS, optimized for overhead line and cable protection in distribution grids.

ABB REX640: A bay controller that works with ABB REF542PLUS to provide advanced substation automation, including sequence-of-events recording and data aggregation.

ABB CMU800: A communication module that extends ABB REF542PLUS‘s connectivity options, adding 4G/LTE capabilities for remote monitoring in isolated locations.

ABB PVS800: A solar inverter protection relay compatible with ABB REF542PLUS, creating a comprehensive protection solution for photovoltaic systems.

ABB REF541: A cost-effective alternative to ABB REF542PLUS with basic protection functions, ideal for small-scale applications with simpler requirements.

ABB PCM600: Configuration software specifically designed for ABB REF542PLUS, enabling offline programming, firmware updates, and data analysis.

Installation, commissioning and maintenance instructions

Installation preparation: Before installing ABB REF542PLUS, ensure the panel cutout dimensions match 240 mm x 150 mm (9.45 in x 5.91 in) for proper fit. The mounting location should be free from direct sunlight, corrosive gases, and excessive dust. Required tools include a torque screwdriver (set to 1.5 Nm for terminal connections) and wire strippers. Use shielded twisted-pair cables for communication links to prevent electromagnetic interference. Verify that the control voltage matches the relay’s rating and that all current transformers are correctly sized for the application.

Maintenance suggestions: For ABB REF542PLUS, perform a visual inspection quarterly, checking for loose connections and signs of overheating. Test protection functions annually using a relay test set to ensure trip thresholds and timing are within specifications. Back up configuration data monthly to a secure location using PCM600 software. If communication issues occur, check network settings and verify IEC 61850 GOOSE mappings. Replace fuses only with ABB-approved equivalents (500 mA slow-blow for control circuits). When replacing ABB REF542PLUS, transfer configuration files using the front USB port to minimize commissioning time.

Service and guarantee commitment

ABB REF542PLUS is backed by a 5-year warranty from the date of commissioning, covering manufacturing defects and performance issues under normal operating conditions. ABB’s global service network provides 24/7 technical support, with online troubleshooting tools and expert assistance available via phone or email.

We offer professional commissioning services for ABB REF542PLUS, including protection setting optimization and communication integration, performed by certified engineers with power system expertise. Extended warranty options up to 10 years are available, including annual preventive maintenance checks. In the event of a fault, ABB guarantees a 48-hour repair turnaround for ABB REF542PLUS at regional service centers, with replacement units available for critical applications to ensure minimal downtime. All repairs use genuine ABB components to maintain original performance standards.
