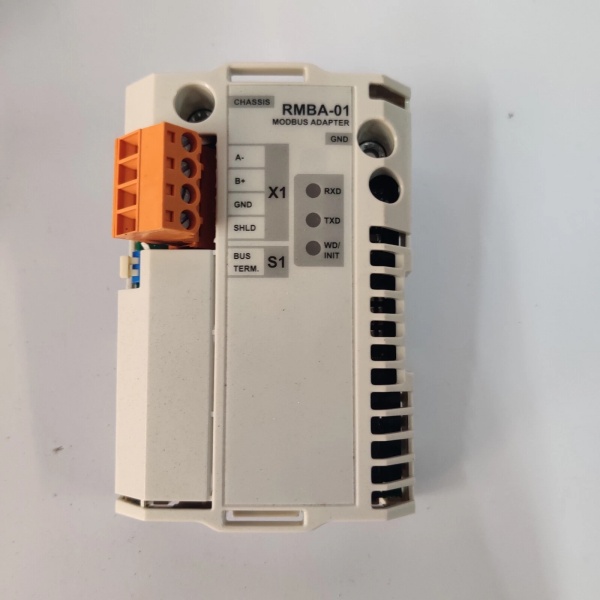

ABB RMBA-01 | Modbus RTU Adapter Module – Specifications & Manual

  • Manufacturer: ABB
  • Part Number: RMBA-01 (Alias: 3ABD64606778)
  • System Platform: ABB ACS800 Series Variable Frequency Drives (VFDs)
  • Hardware Type: Modbus RTU Adapter Module
  • Architectural Role: Serves as the communication bridge between ACS800 VFDs and external control systems (e.g., PLCs, SCADA), enabling data exchange via the Modbus RTU protocol.
  • Key Specifications: RS-485 interface (galvanically isolated); supports 9600–115200 bps baud rates; -20°C to +60°C operating temperature; plug-in module for ACS800 RMIO board.
Get a Quote
Manufacturer:
Part number: ABB RMBA-01
Our extensive catalogue, including : ABB RMBA-01 , is available now for dispatch to the worldwide.

Description

System Architecture & Operational Principle

The ABB RMBA-01 is a Modbus RTU adapter module​ designed for Level 1 (Device) or Level 2 (Control)​ of the Purdue Model, depending on the application. It resides within the ACS800 VFD’s control cabinet and connects directly to the drive’s RMIO (Motor Control and I/O) board.

Upstream Communication

Receives command signals (e.g., speed setpoints, start/stop commands) from higher-level control systems (PLCs, SCADA) via RS-485 serial links​ using the Modbus RTU protocol. The module converts these serial signals to electrical commands for the VFD’s internal processing.

Downstream Communication

Transmits real-time data (e.g., motor speed, current, fault codes) from the VFD to external systems using the same Modbus RTU protocol. This bidirectional communication enables precise monitoring and adjustment of the drive’s operation.

Operational Advantages

  • Galvanic Isolation: The RS-485 interface provides electrical isolation between the VFD and external systems, preventing noise and voltage spikes from damaging sensitive electronics.
  • Plug-and-Play Design: The module inserts into the ACS800’s RMIO board, eliminating the need for custom wiring and reducing setup time.
  • Bus Termination Support: Includes a switch-selectable bus termination resistor (S1) to prevent signal reflections in RS-485 networks, ensuring reliable data transmission.

Core Technical Specifications

Attribute​
Specification​
Physical Interface​
RS-485 (2-wire/4-wire); 20-pin pinheader for RMIO board connection
Signal Type​
Modbus RTU (serial, asynchronous)
Baud Rate​
9600–115200 bps (configurable via drive parameters)
Isolation​
Galvanic isolation between drive and Modbus network
Power Supply​
Supplied by ACS800 RMIO board (24V DC)
Current Consumption​
Max 200 mA
Operating Temperature​
-20°C to +60°C (industrial grade)
Storage Temperature​
-40°C to +85°C
Dimensions​
50 mm (W) x 115 mm (H) x 165 mm (D)
Weight​
1 kg (2.2 lbs)
Certifications​
CE, RoHS
ABB RMBA-01

ABB RMBA-01

Customer Value & Operational Benefits

Reliable Communication in Harsh Environments​
The RMBA-01’s galvanic isolation and RS-485 interface eliminate electromagnetic interference (EMI) from motors, drives, or power lines, ensuring consistent data transmission. This reduces the risk of communication failures that could lead to unplanned downtime—critical for 24/7 operations like manufacturing or utilities.
Easy Integration with Existing Systems​
The module supports the widely used Modbus RTU protocol, making it compatible with most PLCs (e.g., Siemens, Allen-Bradley) and SCADA systems. This eliminates the need for protocol converters, reducing installation time and costs.
Reduced Maintenance Costs​
The plug-and-play design allows for quick replacement of the module without disassembling the VFD. The switch-selectable bus termination resistor simplifies network configuration, reducing the need for specialized technicians.
Scalable for Future Expansions​
The RMBA-01’s RS-485 interface supports up to 32 devices per network segment, allowing facilities to scale their automation systems by adding more VFDs or field devices.

Field Engineer’s Notes (From the Trenches)

When installing the RMBA-01, always verify the RMIO board’s power supply—the module relies on the RMIO board for 24V DC. I once saw a site where a loose RMIO board connection caused the RMBA-01 to malfunction—checking the voltage at the RMIO board’s power terminals fixed the issue in 5 minutes.
Another gotcha: use shielded RS-485 cables—unshielded cables can pick up EMI from nearby motors, leading to data corruption. I recommend using twisted-pair shielded cables with ferrite cores for RS-485 networks.
If the module’s “RXD” or “TXD” LEDs are not blinking, check the baud rate configuration—the RMBA-01’s baud rate must match the external system’s setting. Use the ACS800’s parameter menu (Group 52) to adjust the baud rate.

Real-World Applications

  • Motor Control in Manufacturing:
    The RMBA-01 connects an ACS800 VFD to a Siemens S7-1500 PLC via RS-485. It transmits real-time motor speed data to the PLC, which adjusts the speed based on sensor feedback—critical for maintaining product quality on a packaging line.
  • Pump Station Monitoring in Water Treatment:
    Used to connect an ACS800 VFD (controlling a water pump) to a SCADA system. The RMBA-01 sends pump status (e.g., on/off, flow rate) to the SCADA system, allowing operators to respond quickly to issues like low pressure or pump failure.

    ABB RMBA-01

    ABB RMBA-01

High-Frequency Troubleshooting FAQ

Q: What do the “RXD” and “TXD” LEDs on the RMBA-01 indicate?​
A: The “RXD” (receive) LED blinks green when the module receives data from the external system. The “TXD” (transmit) LED blinks green when the module sends data to the external system. If neither LED is blinking, check the RS-485 cable connection or baud rate configuration.
Q: Can the RMBA-01 be used with non-ACS800 VFDs?​
A: No, the RMBA-01 is specifically designed for ABB ACS800 series VFDs. It relies on the ACS800’s RMIO board for power and communication protocol—using it with non-ACS800 VFDs will result in compatibility issues.
Q: How do I replace the RMBA-01?​
A: Follow these steps:
  1. Power Down: Turn off the ACS800 VFD and disconnect it from the power supply.
  2. Remove Cover: Unscrew the VFD’s front cover to access the RMIO board.
  3. Disconnect Wires: Label and disconnect the RS-485 cables from the RMBA-01.
  4. Remove Module: Unscrew the RMBA-01 from the RMIO board (use a Phillips screwdriver).
  5. Install New Module: Secure the new RMBA-01 to the RMIO board and reconnect the RS-485 cables.
  6. Power Up: Turn on the VFD and verify the module’s operation (check the “RXD” and “TXD” LEDs).
Q: Why is the RMBA-01 not communicating with the PLC?​
A: Check three things first:
  1. Cable Connection: Ensure the RS-485 cable is securely connected to the RMBA-01 and the PLC.
  2. Baud Rate: Verify the RMBA-01’s baud rate matches the PLC’s setting (use the ACS800’s parameter menu to adjust).
  3. Address: Confirm the RMBA-01’s Modbus address is unique on the network (set via the ACS800’s parameter menu).

Commercial Availability & Pricing

Please note:​ The listed price is not the actual final price. It is for reference only and is subject to appropriate negotiation based on current market conditions, quantity, and availability.
