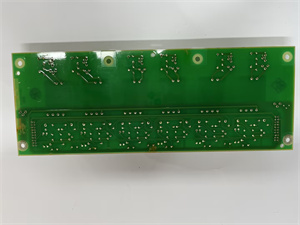

ABB SDCS-PIN48-SD

Product introduction

The ABB SDCS-PIN48-SD is a high-performance digital input module designed for seamless integration with ABB’s industrial AC drive systems, including the ACS800, ACS880, and ACS580 series. This module serves as a critical interface between external control devices—such as sensors, switches, and PLCs—and the drive, enabling precise monitoring and control of drive operations through digital signals.

ABB SDCS-PIN48-SD features 8 isolated input channels, ensuring reliable signal transmission even in electrically noisy industrial environments. Its flexible design supports both dry contact inputs (for mechanical switches) and PNP signals (for electronic sensors), making it adaptable to diverse application requirements. Whether used in manufacturing machinery, conveyor systems, or pump controls, ABB SDCS-PIN48-SD enhances the functionality of ABB drives by expanding their input capabilities, improving system responsiveness, and simplifying wiring complexity.

Core advantages and technical highlights

Enhanced signal integrity: ABB SDCS-PIN48-SD incorporates 2.5 kV AC isolation between channels and from channels to ground, eliminating cross-talk and protecting the drive from voltage spikes or ground loops. This isolation ensures accurate signal detection even in high-electromagnetic interference (EMI) environments, such as near large motors or welders.

Fast response time: With a response time of ≤1 ms for both ON and OFF transitions, ABB SDCS-PIN48-SD ensures rapid detection of input signal changes. This speed is critical for time-sensitive applications, such as emergency stop circuits or position-sensing systems, where delays could compromise safety or process efficiency.

Versatile input compatibility: Unlike module-specific to a single signal type, ABB SDCS-PIN48-SD accepts both dry contacts (no external power required) and active PNP signals (24 V DC), eliminating the need for additional signal converters. This flexibility simplifies system design and reduces inventory costs by supporting multiple sensor types.

Easy integration: ABB SDCS-PIN48-SD is engineered for plug-and-play compatibility with ABB’s ACS series drives, featuring standardized connectors that mate directly with drive backplanes. For standalone installations, it also supports DIN rail mounting, providing flexibility in control cabinet layouts. The module is automatically recognized by ABB drive software, reducing configuration time during commissioning.

Typical application scenarios

In automotive assembly lines, ABB SDCS-PIN48-SD connects ABB ACS880 drives (controlling robotic arms and conveyors) to proximity sensors and limit switches. Its fast response time ensures immediate detection of part positions, enabling precise synchronization of drive speeds with assembly operations. The module’s isolation prevents electrical noise from welding robots from interfering with sensor signals, maintaining process accuracy.

Within material handling systems, ABB SDCS-PIN48-SD integrates with ABB ACS580 drives to monitor conveyor belt sensors—such as photoelectric detectors for package presence and emergency stop buttons. Its 8-channel design allows centralized monitoring of multiple points along the conveyor, while PNP compatibility supports direct connection to modern electronic sensors without external relays.

In water and wastewater treatment plants, ABB SDCS-PIN48-SD links ABB ACS800 pump drives to float switches, pressure sensors, and valve position indicators. The module’s wide operating temperature range (-10°C to +55°C) ensures reliable performance in both outdoor pump stations and indoor control rooms, while its robust isolation protects against ground loops common in wet environments.

ABB SDCS-PIN48-SD

Related model recommendations

ABB SDCS-POT48-SD: Analog input module that complements ABB SDCS-PIN48-SD, adding 4 channels for 0-10 V or 4-20 mA signals from sensors like pressure transducers.

ABB SDCS-POU48-SD: Digital output module paired with ABB SDCS-PIN48-SD, providing 8 isolated outputs to control external devices such as alarms or valves.

ABB ACS880-01-160A-3: Drive controller specifically compatible with ABB SDCS-PIN48-SD, ideal for medium-power motor control applications.

ABB SDCS-COM-81: Communication module that works with ABB SDCS-PIN48-SD to enable remote monitoring of input status via Modbus or Ethernet/IP.

ABB SDCS-CON-10: Configuration tool for ABB SDCS-PIN48-SD, simplifying channel mapping and signal delay adjustments through a user-friendly interface.

ABB SDCS-PIN32-SD: A 16-channel variant of ABB SDCS-PIN48-SD for applications requiring more input points, such as large-scale manufacturing lines.

ABB 1SFA896151R1001: Terminal block accessory for ABB SDCS-PIN48-SD, facilitating secure wiring in high-vibration environments.

Installation, commissioning and maintenance instructions

Installation preparation: Before installing ABB SDCS-PIN48-SD, ensure the mounting surface (DIN rail or drive backplane) is clean and free from debris. Required tools include a Phillips screwdriver, torque wrench (set to 0.5 Nm for terminal connections), and wire strippers. Verify that the external power supply (if using PNP inputs) is 24 V DC ±10% and properly fused (1A). For drive backplane mounting, power down the drive and ensure all capacitors are discharged (wait 5 minutes after shutdown). Allow 20 mm clearance around the module for ventilation, and use twisted-pair cables for input signals to minimize EMI.

Maintenance suggestions: For ABB SDCS-PIN48-SD, perform quarterly visual inspections to check for loose connections or damaged terminals. Clean dust from the module using compressed air (max 5 bar) annually, avoiding direct airflow on electrical components. Test input channels periodically using a signal generator or known-good sensor to verify response times. If a channel fails, check for wiring faults before replacing the module—isolated faults often indicate external issues rather than module failure. When replacing ABB SDCS-PIN48-SD, back up drive configuration data first to preserve channel mappings, and use only ABB-approved replacement modules to maintain compatibility.

Service and guarantee commitment

ABB SDCS-PIN48-SD is backed by a 2-year warranty from the date of installation, covering manufacturing defects and performance issues under normal operating conditions. ABB’s technical support team provides 24/7 assistance via phone and email, with specialized expertise in drive module integration.

We offer on-site commissioning services for systems incorporating ABB SDCS-PIN48-SD, including wiring verification, channel testing, and configuration with ABB drives. Extended warranty options up to 5 years are available, including annual preventive maintenance checks. In the event of a fault, ABB guarantees a 48-hour turnaround for repairs or replacement, with loaner modules available for critical applications to minimize downtime. All replacements use genuine ABB components, ensuring ABB SDCS-PIN48-SD maintains its original isolation ratings and response time performance.
