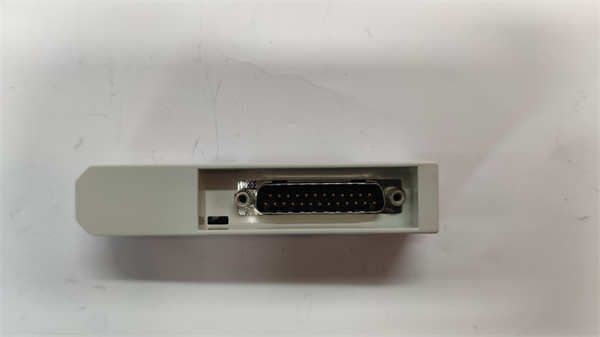

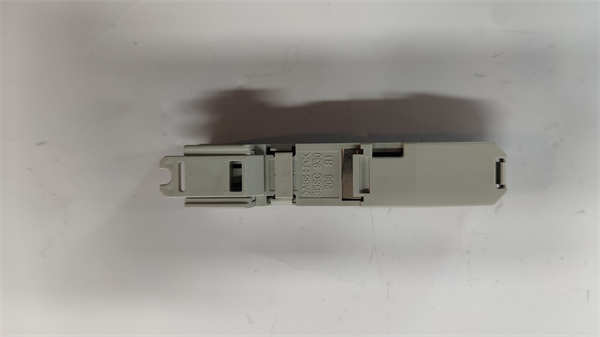

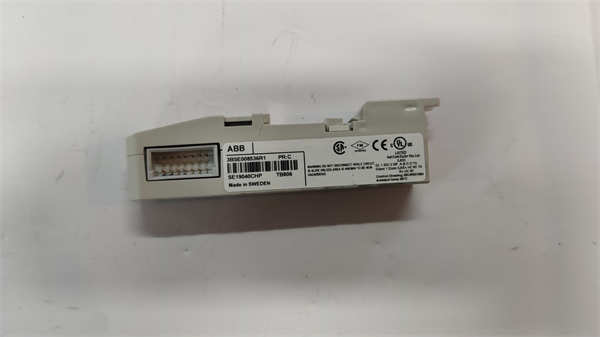

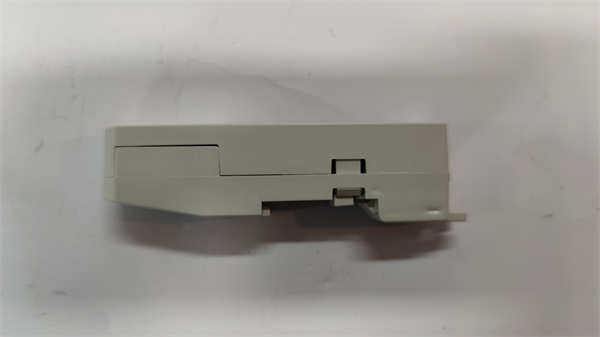

ABB TB806 3BSE008536R1

Product introduction

The TB806 3BSE008536R1 by ABB is an essential component within the S800 I/O series, designed to be a module bus extension cable adaptor. This adaptor plays a crucial role in industrial automation systems, acting as a bridge to connect and expand the module bus system. It enables seamless communication and reliable signal transfer between different components within the modular automation setup.

As part of the S800 I/O family, which is widely recognized in the industrial automation and control domain, the TB806 3BSE008536R1 ensures that various I/O modules can be integrated effectively. It allows for the connection of I/O modules located on different DIN rails within the same electrical module bus system, providing flexibility in system layout and configuration. This adaptor is designed to work in harmony with other components like the TB805 and TK801v0xx, further enhancing its functionality in extending the module bus.

Core advantages and technical highlights

High reliability

The TB806 3BSE008536R1 is constructed using high – quality components, which are carefully selected to withstand the rigors of harsh industrial environments. With an operating temperature range spanning from – 40°C to +70°C, it can function optimally in extreme conditions, whether it’s the freezing cold of a refrigerated warehouse or the sweltering heat of a steel foundry. Its ability to resist humidity up to 95% (non – condensing) further adds to its reliability, ensuring stable operation without the risk of corrosion or short – circuits.

Wide compatibility

This adaptor is highly compatible with a range of modular systems. It supports optical extensions when paired with TB842, allowing for more versatile and advanced system configurations. It can work with different I/O modules on the S800 I/O platform, enabling seamless communication between them. This compatibility ensures that it can be easily integrated into existing automation setups, reducing the need for complex re – engineering or replacement of other components.

Easy installation and maintenance

Featuring a compact design with dimensions of 22 mm in width, 109 mm in height, and 25 mm in depth, the TB806 3BSE008536R1 is easy to install on a DIN rail. Its lightweight nature, weighing only about 0.046 kg, further simplifies the installation process. Maintenance is also straightforward, as its simple structure and reliable components reduce the likelihood of frequent breakdowns. In the event of an issue, the clear and accessible design allows for quick identification and replacement of parts

ABB TB806 3BSE008536R1

.

Typical application scenarios

Manufacturing

In manufacturing plants, especially those with automated production lines, the TB806 3BSE008536R1 is used to connect different I/O modules that control various aspects of the production process. For example, it can link the modules that monitor the speed of conveyor belts to those that control the robotic arms used for assembly. This ensures that the entire production line operates in a coordinated manner, with real – time data transfer between different components, resulting in increased productivity and reduced errors.

Energy industry

In power systems and substations, the adaptor is crucial for connecting modules that monitor and control electrical parameters. It enables the seamless transfer of data related to voltage, current, and power levels between different parts of the monitoring and control system. This helps in ensuring the stable operation of the power grid, allowing for quick detection and response to any anomalies in the electrical supply.

Chemical and pharmaceutical

In the chemical and pharmaceutical industries, where precise process control is essential, the TB806 3BSE008536R1 connects modules that handle sensors for temperature, pressure, and chemical composition. This allows for accurate control of reactions and processes, ensuring product quality and safety. The adaptor’s ability to function reliably in environments with potentially corrosive chemicals makes it an ideal choice for these industries.

Related model recommendations

• TB805: Works in tandem with the TB806 3BSE008536R1within the module bus system, complementing its functionality in the S800 I/O series.
• TK801v0xx: Another component that can be connected to the TB806 3BSE008536R1to extend the module bus, providing additional flexibility in system layout.
• TB842: Can be paired with the TB806 3BSE008536R1to enable optical module bus extensions, enhancing the communication capabilities within the automation system.
• AI810 3BSE008516R0001(Analog Input Module): As part of the ABB product range, it can be integrated into the system where the TB806 3BSE008536R1 is used, allowing for the collection and transfer of analog data.
• DO524 A3 1SAP240700R0001(Digital Output Module): Can be connected through the module bus system extended by the TB806 3BSE008536R1, enabling control signals to be sent to actuators in the automation process.

Installation, commissioning and maintenance instructions

Installation preparation

Before installing the TB806 3BSE008536R1, ensure that the power to the entire automation system is turned off to prevent any electrical accidents. The installation area should be clean and free of dust, as even small particles can potentially affect the performance of the adaptor. Gather the necessary tools, such as a screwdriver for securing the DIN rail mounting. Check the DIN rail for any signs of damage or corrosion, and ensure it is properly installed and grounded. When handling the adaptor, use anti – static precautions to avoid electrostatic discharge that could damage the sensitive components.

Maintenance suggestions

For daily maintenance, visually inspect the TB806 3BSE008536R1 for any signs of physical damage, such as cracks in the casing or loose connectors. Periodically clean the adaptor using a soft, dry cloth to remove any accumulated dust. If there are issues with communication within the module bus system, first check the connections of the TB806 3BSE008536R1 to ensure they are tight. In case a replacement is required, always use an authentic ABB replacement part to maintain the integrity and performance of the system. Keep a record of any maintenance activities and issues encountered for future reference.

Service and guarantee commitment

ABB offers a comprehensive service and guarantee for the TB806 3BSE008536R1. The product comes with a standard warranty period, during which any defects in materials or workmanship will be rectified by ABB free of charge. ABB’s global network of technical support teams is available to assist customers with installation, commissioning, and troubleshooting. They provide prompt and efficient service, whether it’s through online consultations, remote diagnostics, or on – site visits. In addition, ABB offers training programs to help customers make the most of the TB806 3BSE008536R1 and ensure its proper operation and maintenance. With ABB’s commitment to quality and customer satisfaction, customers can trust in the long – term performance of the TB806 3BSE008536R1 in their industrial automation systems.
