ABB UNITROL1020 | Generator Voltage Regulation Module for Grid Stability
ABB UNITROL1020 | Generator Voltage Regulation Module for Grid Stability
Brand: ABB
Model: UNITROL1020
Product Type: Generator Excitation Controller (Automatic Voltage Regulator)
Series: UNITROL 1000 Series
Core Function: Regulates generator terminal voltage by controlling excitation current; manages reactive power output to maintain grid stability and comply with utility interconnection standards.
Key Specs: 100-250V AC/DC power supply, 10A continuous output current, adaptive PID control algorithm, supports Modbus TCP/IEC 61850 communication.
Manufacturer: ABB Part number: ABB UNITROL1020
Our extensive ABB catalogue, including
: ABB UNITROL1020
, is available now for dispatch to the worldwide.
UNITROL1020: Product OverviewThe UNITROL1020 is a generator excitation controller within ABB’s UNITROL 1000 Series, designed for synchronous machine voltage regulation in power generation systems. Its role is to act as the core of the excitation system, positioned in the generator control panel to regulate rotor winding current, thereby stabilizing terminal voltage under varying load conditions. In applications like thermal power plants, hydroelectric facilities, and industrial co-generation units, it ensures compliance with grid codes (e.g., IEEE 421.5, IEC 60034-16) by managing reactive power exchange and mitigating voltage fluctuations.Functionally, the controller processes analog signals (generator terminal voltage, stator current, field current) and digital inputs (breaker status, sync signals) to calculate excitation demand via an adaptive PID algorithm. It handles both steady-state regulation (maintaining 0.5% voltage accuracy) and transient response (correcting deviations within 50ms of load changes). As part of the UNITROL 1000 platform, it leverages modular hardware, ABB’s Generator Management System (GMS) software for configuration, and compatibility with brushless/static excitation systems. Benefits include reduced manual tuning, extended generator lifespan via optimized excitation limits, and seamless integration with plant DCS for remote monitoring.
Control Algorithm: Adaptive PID with droop compensation (0-10% adjustable)
Communication Protocols: Modbus TCP, IEC 61850-8-1 (GOOSE), RS485 (Modbus RTU)
Operating Temperature: -20°C to +60°C
Humidity Range: 5% to 95% non-condensing
Dimensions: 300mm x 200mm x 150mm (H x W x D, panel-mount chassis)
Weight: 4.5kg
Protection Features: Over-excitation (OEL), under-excitation (UEL), stator overcurrent, field overvoltage
Certifications: IEC 60255-1, IEEE 421.5, CE, UL
Core Features & Customer ValueAdaptive PID control for dynamic stability: The controller’s algorithm adjusts proportional, integral, and derivative gains in real time based on load transients (e.g., sudden generator disconnection). For power plant operators, this maintains voltage within ±0.5% of setpoint during 0-100% load changes, preventing grid instability penalties. In a 500MW coal plant, this eliminated 3 annual voltage-related outages by adapting to boiler steam pressure fluctuations.Integrated protection limits for asset longevity: Built-in over-excitation (OEL) and under-excitation (UEL) limits prevent rotor overheating or loss of synchronism. For maintenance teams, this extends generator insulation life by 20-30% compared to non-limited systems. The field overvoltage protection (trip at 150V DC) also safeguards excitation bridge components during faults.Digital communication for centralized oversight: Support for Modbus TCP and IEC 61850 enables integration with plant DCS (e.g., ABB Symphony Harmony) for remote monitoring of voltage, current, and fault logs. Engineers can adjust setpoints or view trends via SCADA, reducing panel visits by 40%. In a hydro plant with 3 generators, this centralized view streamlined coordination during peak demand periods.Modular design for flexible integration: The controller’s plug-in architecture allows retrofitting into existing UNITROL 500/600 systems without rewiring. Field technicians can replace the control board in <30 minutes, minimizing downtime during upgrades.

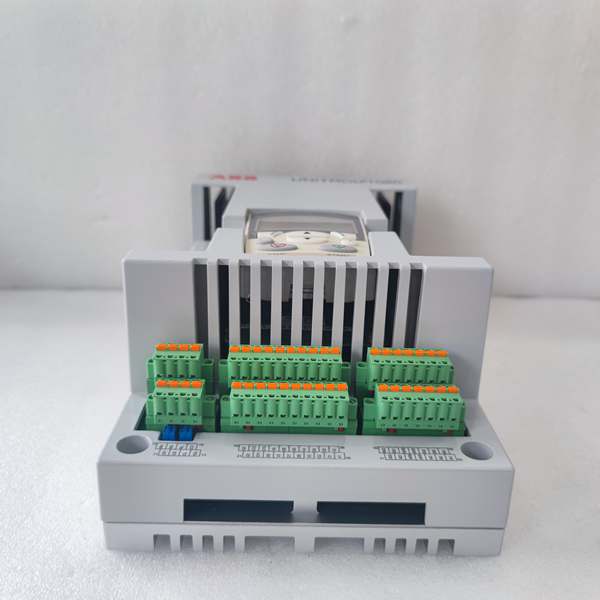

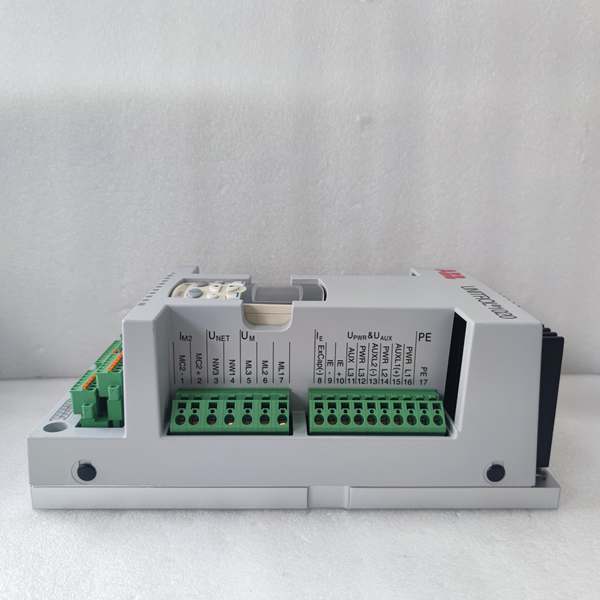

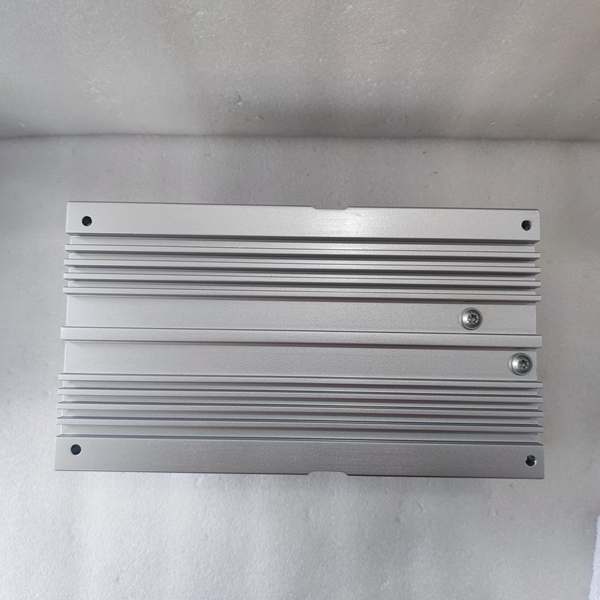

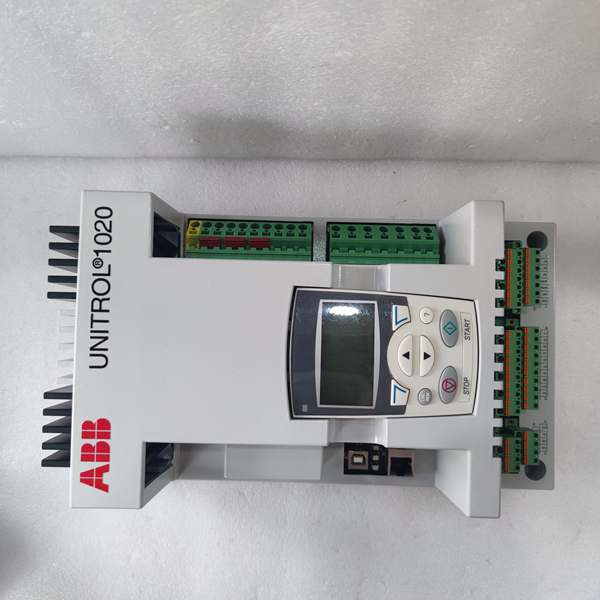

ABB UNITROL 1020
Typical ApplicationsIn a 600MW coal-fired power plant, the UNITROL1020 regulates a 24kV synchronous generator’s terminal voltage. It processes 4-20mA signals from PTs/CTs, adjusts excitation via a static thyristor bridge, and logs reactive power output to comply with PJM grid interconnection standards. During a boiler trip, its 50ms transient response prevents voltage spikes that could trip downstream motors.At a 200MW hydroelectric facility, it controls a Kaplan turbine-driven generator’s excitation to stabilize grid frequency during load-following operations. The adaptive droop compensation (5%) matches output to changing water inflow, while IEC 61850 communication integrates with the plant’s SIS for automatic generation control (AGC).In an industrial co-generation plant, the controller manages a 10MW gas turbine generator’s voltage for onsite steel mill loads. It prioritizes reactive power for arc furnaces during surges, with OEL activating to protect the turbine when furnace demand exceeds limits.
