UNS0122A-P: Product Overview
The ABB UNS0122A-P is a 16-channel digital output module designed specifically for ABB’s System 800xA distributed control system (DCS). As a critical component in industrial automation architectures, it acts as an interface between the DCS and field devices, converting digital control signals from the system into electrical outputs that drive actuators, solenoids, relays, and other equipment.
Role in Automation Systems:
Positioned as a “slave” module in the System 800xA ecosystem, the UNS0122A-P receives commands from the central controller (e.g., ABB AC 800PEC) and transmits them to field devices. It plays a pivotal role in:
-
Process Control: Regulating valves, pumps, and motors in industries like chemical processing, power generation, and oil & gas.
-
Machine Automation: Controlling robotic end-effectors, conveyor belts, and assembly-line equipment in manufacturing.
-
Safety Systems: Triggering alarms, emergency stops, and safety interlocks in hazardous environments.
Core Functionality:
-
16 High-Density Channels: Supports up to 16 digital outputs in a compact form factor, reducing cabinet space and wiring complexity.
-
Galvanic Isolation: Provides electrical separation between channels and the system bus, protecting the DCS from voltage spikes and noise generated by field devices.
-
Fast Response Time: With a response time of less than 1 ms, the module ensures real-time control of dynamic processes (e.g., high-speed packaging, turbine regulation).
-
Overload Protection: Built-in protection for each channel prevents damage from short circuits or overloads, enhancing system reliability.
Platform Benefits (System 800xA):
The UNS0122A-P leverages ABB’s System 800xA platform, which is renowned for its:
-
Scalability: Supports expansion via additional I/O modules, adapting to growing industrial needs.
-
Integration: Compatible with ABB’s Advant Master legacy systems, enabling phased modernization of existing facilities.
-
Diagnostics: Built-in status LEDs and fault logging simplify troubleshooting, reducing mean time to repair (MTTR).

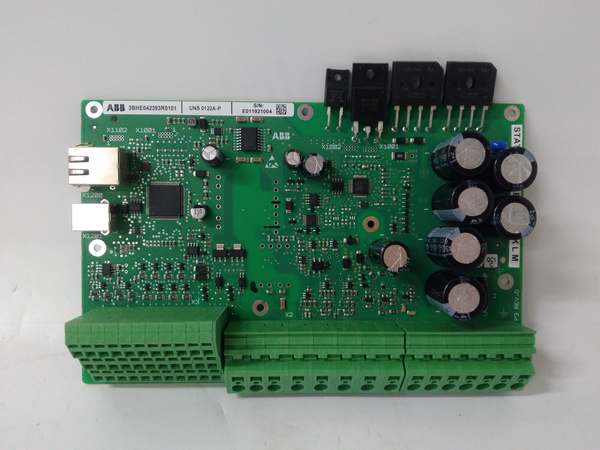

ABB UNS0122A-P
Technical Specifications
Model Number: UNS0122A-P
Manufacturer: ABB
Product Type: Digital Output Module
-
Number of Channels: 16
-
Output Voltage: 24 VDC (typical)
-
Output Current: Up to 2 A per channel (resistive load)
-
Isolation: Galvanic isolation between channels and system bus
-
Response Time: < 1 ms
-
Power Consumption: 5 W (typical)
-
Operating Temperature: -20°C to +55°C (-4°F to 131°F)
-
Storage Temperature: -40°C to +70°C (-40°F to 158°F)
-
Humidity: 5% to 95% non-condensing
-
Dimensions (H × W × D): 252 mm × 273 mm × 40 mm (9.9 in × 10.7 in × 1.6 in)
-
Weight: 1.32 kg (2.9 lbs)
-
Certifications: CE, UL, CSA, IEC compliant
-
System Compatibility: ABB System 800xA DCS
Core Features & Customer Value
1. High-Density Channel Count:
The UNS0122A-P’s 16 channels allow customers to control multiple field devices with a single module, reducing the number of modules required and saving valuable cabinet space. For example, a chemical processing plant can use one UNS0122A-P to control 16 solenoid valves, simplifying wiring and maintenance.
2. Galvanic Isolation for Reliability:
Galvanic isolation between channels and the system bus prevents electrical noise from field devices (e.g., motors, solenoids) from interfering with the DCS. This ensures reliable signal transmission and reduces the risk of false alarms—critical for maintaining process stability in industries like power generation.
3. Fast Response Time for Real-Time Control:
The module’s < 1 ms response time enables real-time control of dynamic processes. In a high-speed packaging line, for instance, the UNS0122A-P can trigger a conveyor belt to stop within milliseconds of a sensor detecting a misaligned package, preventing damage and reducing waste.
4. Compact Design for Space Efficiency:
The UNS0122A-P’s compact dimensions (252 mm × 273 mm × 40 mm) make it ideal for installations where cabinet space is limited. This is particularly valuable for customers upgrading existing systems, as it eliminates the need for larger control cabinets.

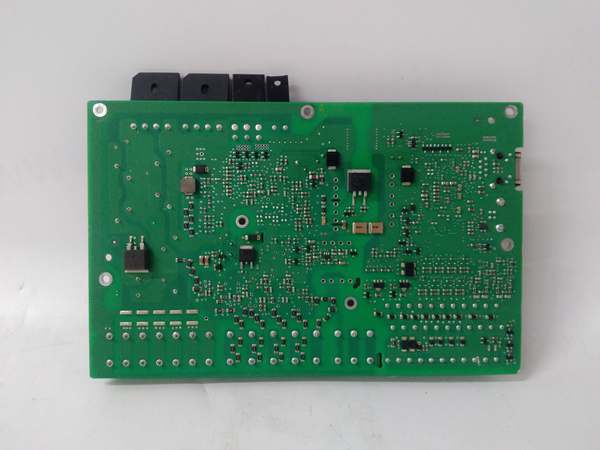

ABB UNS0122A-P
Typical Applications
The ABB UNS0122A-P is widely used in industries requiring precise digital output control:
-
Chemical Processing:
-
Controls solenoid valves in distillation columns, regulating the flow of crude oil and chemicals.
-
Example: In a petrochemical refinery, the UNS0122A-P drives 16 solenoid valves to adjust the flow of reactants into a reactor, ensuring optimal product yield.
-
-
Power Generation:
-
Manages actuators for boiler feedwater valves and turbine governors in thermal power plants.
-
Example: A coal-fired power plant uses the UNS0122A-P to control the position of air damper valves, optimizing combustion efficiency and reducing emissions.
-
-
Manufacturing:
-
Controls robotic end-effectors and conveyor belts in automotive assembly lines.
-
Example: An automotive factory uses the UNS0122A-P to trigger robotic arms to pick up car doors and place them on a conveyor belt, synchronizing with other assembly processes.
-
-
Oil & Gas:
-
Drives actuators for pipeline valves and wellhead equipment in upstream and midstream operations.
-
Example: An offshore oil rig uses the UNS0122A-P to control the opening and closing of pipeline valves, ensuring safe and efficient transport of crude oil.
-
