USC329AE01 3BHB002483R0001: Product Overview
The ABB USC329AE01 3BHB002483R0001 is a compact control panel designed for ABB’s AC 800M modular DCS, a flagship platform for industrial automation. As a critical component of the AC 800M ecosystem, it acts as the primary interface between operators and the DCS, enabling real-time monitoring and control of industrial processes.
Role in Automation Systems:
Positioned as an HMI control panel, the USC329AE01 bridges the gap between the DCS controller (e.g., AC 800M CPU) and field devices (e.g., sensors, actuators). It performs three primary functions:
-
Process Monitoring: Displays real-time data from field devices (e.g., temperature, pressure, flow) via a graphical interface, allowing operators to track process variables at a glance.
-
Control Adjustment: Enables operators to modify setpoints (e.g., desired temperature, pressure) or trigger control actions (e.g., start/stop a pump) using the touchscreen or keypad.
-
Alarm Management: Receives and displays alarms from the DCS (e.g., overpressure, equipment failure), providing visual and audible alerts to prompt immediate action.
Core Functionality:
-
Touchscreen Interface: A 7-inch color graphic LCD with resistive touch technology allows intuitive navigation and parameter adjustment. The interface can be customized to display process diagrams, trend charts, or alarm lists based on operator preferences.
-
Communication Integration: Equipped with Ethernet (10/100 Mbps) for high-speed communication with the AC 800M controller and RS-485/Profibus DP for legacy device integration. This ensures seamless data exchange between the control panel and the DCS.
-
Alarm Handling: Supports multiple alarm priorities (e.g., critical, warning, informational) with visual (red/yellow/green indicators) and audible (buzzer) alerts. Alarm history is stored in the panel’s memory for later review.
Platform Benefits (AC 800M Series):
The USC329AE01 leverages ABB’s AC 800M platform, which is renowned for:
-
Modularity: The AC 800M system allows for easy expansion with additional I/O modules or communication interfaces, adapting to growing operational needs.
-
Reliability: Industrial-grade components and redundant design ensure 24/7 operation in harsh environments (e.g., high temperature, vibration).
-
Scalability: The USC329AE01 can be integrated with ABB’s Advant Master legacy systems, enabling phased modernization of existing facilities.

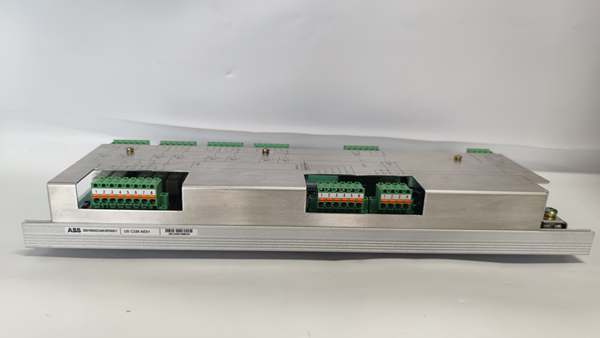

ABB USC329AE01
Technical Specifications
Model Number: USC329AE01 3BHB002483R0001
Manufacturer: ABB
Product Type: Compact Control Panel (HMI)
-
Communication Interfaces:
-
1 × Ethernet (10/100 Mbps, RJ45)
-
1 × RS-485 (Modbus RTU, terminal block)
-
1 × Profibus DP (9-pin D-sub)
-
-
Input Voltage: 24 V DC (±10%)
-
Power Consumption: Max 15 W
-
Operating Temperature: -20°C to +60°C (-4°F to 140°F)
-
Storage Temperature: -40°C to +85°C (-40°F to 185°F)
-
Humidity: 5% to 95% non-condensing
-
Display: 7-inch color graphic LCD (640 × 480 pixels)
-
Touchscreen: Resistive (analog)
-
Dimensions (W×H×D): 200 mm × 150 mm × 50 mm (7.87 in × 5.91 in × 1.97 in)
-
Weight: 1.2 kg (2.65 lbs)
-
Protection Rating: IP20 (front panel)
-
Certifications: CE, UL, RoHS
Core Features & Customer Value
1. Intuitive Touchscreen Interface:
The 7-inch color touchscreen provides a user-friendly interface for operators, reducing the learning curve and improving efficiency. Customizable screens allow operators to focus on critical process variables, such as turbine temperature in a power plant or reactor pressure in a chemical plant.
2. Seamless Communication with AC 800M:
Ethernet and RS-485/Profibus DP interfaces enable real-time data exchange with the AC 800M controller, ensuring that the control panel reflects the latest process status. This integration simplifies system setup and reduces the risk of configuration errors.
3. Reliable Alarm Management:
The panel’s alarm system provides immediate visual and audible alerts for critical events, such as overpressure in a pipeline or equipment failure. This helps operators respond quickly to potential issues, minimizing downtime and preventing accidents.
4. Compact Design for Space Efficiency:
The USC329AE01’s small form factor (200 mm × 150 mm × 50 mm) makes it ideal for installations where cabinet space is limited. This is particularly valuable for customers upgrading existing systems, as it eliminates the need for larger control cabinets.
ABB USC329AE01
Typical Applications
The ABB USC329AE01 3BHB002483R0001 is widely used in industries requiring real-time process monitoring and control:
-
Power Generation:
-
Monitors turbine temperature, pressure, and flow in thermal power plants.
-
Example: In a coal-fired power plant, the panel displays real-time data from turbine sensors and allows operators to adjust fuel flow to maintain optimal efficiency.
-
-
Chemical Processing:
-
Controls reactor temperature and pressure in petrochemical refineries.
-
Example: In a refinery, the panel enables operators to adjust the flow of reactants into a reactor, ensuring consistent product quality.
-
-
Water Treatment:
-
Monitors water quality parameters (e.g., pH, turbidity) in municipal treatment plants.
-
Example: A water treatment plant uses the panel to display pH levels and trigger alarms if they exceed safe limits, ensuring compliance with environmental regulations.
-
