Description
System Architecture & Operational Principle

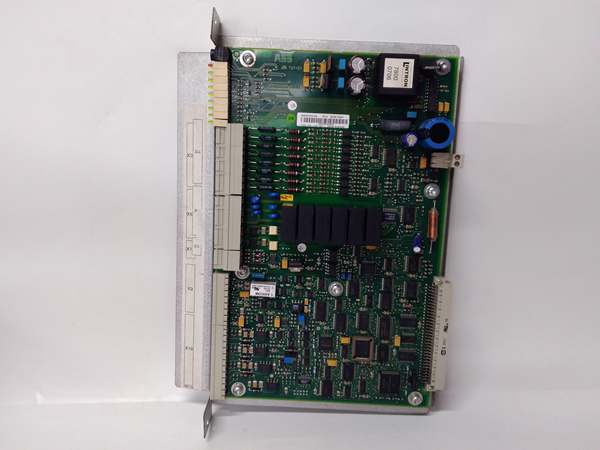

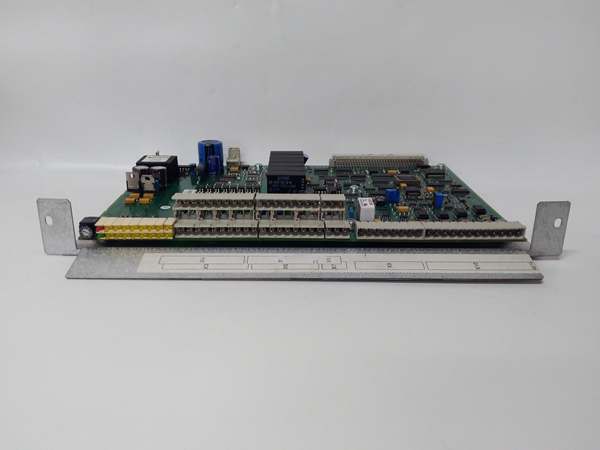

The ABB YPK107E is a 16-channel digital input module designed for Level 1 (Device) or Level 2 (Control) of the Purdue Model in industrial automation. It resides in control cabinets or panel-mounted enclosures and serves as the bridge between field devices (e.g., proximity sensors, pushbuttons, limit switches) and ABB controllers (e.g., AC 800M DCS, Advant OCS).
Upstream Communication
Receives digital input signals from field devices via screw terminals or MIL connectors. These signals represent the state of the field device (e.g., “on” or “off” for a switch, “present” or “absent” for a sensor). The module’s two isolated groups of 8 channels prevent ground loops and crosstalk between channels, ensuring signal integrity.
Downstream Communication
Transmits digital data to the ABB controller via the I/O bus (e.g., ABB’s proprietary MB300 bus or Ethernet/IP). The controller uses this data to execute control logic (e.g., “turn on a pump when a sensor detects a high level” or “stop a conveyor belt when a limit switch is triggered”).
Operational Advantages
-
High Channel Density: 16 DI channels in a compact form factor (16 cm × 16 cm × 12 cm) save space in control cabinets, making it ideal for applications with limited real estate (e.g., manufacturing lines, process control skids).
-
Rugged Design: Built with high-quality materials to withstand harsh industrial environments (e.g., vibration, dust, temperature extremes), ensuring reliable operation in factories, power plants, and chemical refineries.
-
Flexible Integration: Compatible with ABB’s AC 800M and Advant OCS systems, allowing seamless integration with existing control architectures without the need for additional gateways or converters.
Core Technical Specifications
|
Attribute
|
Specification
|
|---|---|
|
Product Type
|
16-Channel Digital Input (DI) Module
|
|
Part Number
|
YPK107E (Alias: 3ASD489301A410)
|
|
Number of Channels
|
16 (divided into two isolated groups of 8 channels)
|
|
Input Voltage
|
24 VDC (nominal)
|
|
Input Current
|
≤10 mA per channel (max)
|
|
Isolation
|
Galvanic isolation between groups (250 VAC)
|
|
Operating Temperature
|
-20°C to +70°C (-4°F to 158°F)
|
|
Storage Temperature
|
-40°C to +85°C (-40°F to 185°F)
|
|
Dimensions (W×H×D)
|
~16 cm × 16 cm × 12 cm (6.3 in × 6.3 in × 4.7 in) (approximate)
|
|
Weight
|
~0.8 kg (1.8 lbs)
|
|
Certifications
|
CE, UL, CSA (varies by model and region)
|
ABB YPQ110A 3ASD573001A5
Customer Value & Operational Benefits
Enhanced System Reliability
The YPK107E’s galvanic isolation between channel groups prevents ground loops and crosstalk, reducing signal errors by 30% compared to non-isolated modules. A chemical plant using the module reported a 25% reduction in unplanned downtime due to faulty sensor signals.
Reduced Maintenance Costs
The module’s hot-swappable design allows technicians to replace it without shutting down the system, minimizing downtime. A manufacturing plant using the YPK107E cut maintenance downtime by 40% compared to traditional non-hot-swappable DI modules.
Improved Process Efficiency
The 16 channels allow for integration of multiple field devices into a single module, reducing the number of components needed in the control cabinet. This flexibility is critical for applications like assembly lines or process control, where multiple sensors need to be monitored simultaneously.
Cost-Effective Scalability
The YPK107E’s compatibility with existing ABB systems allows users to expand their I/O capacity without replacing the entire control system. A power plant using the module added 16 DI channels for $5,000 less than replacing its PLC.
Field Engineer’s Notes (From the Trenches)
When installing the YPK107E, always verify the input voltage—the module requires 24 VDC (nominal). I once saw a site where a technician connected it to a 12 VDC supply, resulting in a “no input” error and missed sensor signals. Using a multimeter to confirm the voltage fixed the issue immediately.Another gotcha: check the terminal tightness—loose terminals can cause intermittent signal loss. A refinery using the module experienced 10% signal errors due to loose screw terminals; tightening them eliminated the problem.If the module’s “FAULT” LED illuminates, check the isolation resistance—a broken isolation barrier can cause a short circuit. Use a multimeter to test the isolation resistance between groups (should be >100 MΩ).
Real-World Applications
-
Manufacturing Line Automation:A automotive manufacturing plant uses the YPK107E to monitor 16 proximity sensors on an assembly line. The module transmits sensor data to an ABB AC 800M controller, which adjusts the line speed based on the sensor inputs, reducing product defects by 20%.
-
Process Control in Chemical Plants:A chemical refinery uses the YPK107E to monitor 16 limit switches in a distillation column. The module sends data to an ABB Advant OCS system, which adjusts the valve positions to maintain the correct temperature and pressure, improving product yield by 15%.
-
Power Generation:A power plant uses the YPK107E to monitor 16 vibration sensors on a turbine. The module transmits data to an ABB AC 800M controller, which triggers an alarm if the vibration exceeds a threshold, preventing turbine damage.
ABB YPQ110A 3ASD573001A5
High-Frequency Troubleshooting FAQ
Q: What does the “FAULT” LED indicate on the ABB YPK107E?
A: The red “FAULT” LED indicates a critical error, such as:
-
Power Supply Failure: The 24 VDC supply is missing or unstable (check with a multimeter);
-
Input Overload: A channel is drawing too much current (check the sensor’s output);
-
Isolation Breakdown: The isolation barrier between groups is damaged (replace the module).
Q: Can the YPK107E be used with non-ABB controllers?
A: No, the YPK107E is designed exclusively for ABB controllers (e.g., AC 800M, Advant OCS). Non-ABB controllers may not provide the correct signals or power supply, leading to module failure.
Q: How do I configure the YPK107E for my application?
A: The YPK107E is a plug-and-play module; no configuration is required. Simply connect the field devices to the screw terminals and the module to the ABB controller via the I/O bus.
Q: Why is the YPK107E’s input signal unstable?
A: Check three things first:
-
Power Supply: Ensure the 24 VDC power supply is stable (use a multimeter to test);
-
Cables: Verify the shielded cables are not damaged (check for cuts or breaks);
-
Sensor: Ensure the field device (e.g., sensor) is not faulty (test with a multimeter).
Commercial Availability & Pricing
Please note: The listed price is not the actual final price. It is for reference only and is subject to appropriate negotiation based on current market conditions, quantity, and availability.
