Description
System Architecture & Operational Principle
The ABB YPQ112B DCF3986771P0001 is an interface adapter circuit board designed for Level 1 (Device) or Level 2 (Control) of the Purdue Model in industrial automation. It resides in drive system cabinets (e.g., ABB ACS600 multi-drive enclosures) and serves as the bridge between the drive controller (e.g., ABB ACS600) and external control systems (e.g., PLCs, HMIs).
Upstream Communication
Receives control signals from the drive controller via internal buses (e.g., ABB’s proprietary fieldbus). These signals represent commands for speed, torque, or position control.
Downstream Communication
Transmits status updates and feedback signals to external devices (e.g., PLCs) via standard communication protocols (e.g., Modbus RTU, PROFIBUS). The adapter also forwards external commands (e.g., start/stop) to the drive controller.
Operational Advantages
-
Retrofit Compatibility: Designed to integrate with legacy ABB drive systems (e.g., ACS600), extending the life of existing equipment without full replacement.
-
Seamless Integration: Supports ABB’s APC (Advanced Process Control) program, ensuring compatibility with the drive system’s control logic.
-
Compact Design: Small form factor (0.2 kg) allows easy installation in crowded drive cabinets.
Core Technical Specifications
|
Attribute
|
Specification
|
|---|---|
|
Product Type
|
Industrial Drive System Interface Adapter (Circuit Board)
|
|
Compatibility
|
ABB ACS600 Series Multi-Drive Systems
|
|
Configuration Requirement
|
Must be configured in ABB APC program
|
|
Weight
|
0.2 kg (0.44 lbs)
|
|
Warranty
|
12 months
|
|
Communication Protocols
|
Modbus RTU, PROFIBUS (via external gateway)
|
|
Operating Temperature
|
-20°C to +60°C (-4°F to 140°F) (estimated, based on ABB drive systems)
|
|
Storage Temperature
|
-40°C to +85°C (-40°F to 185°F) (estimated)
|
-

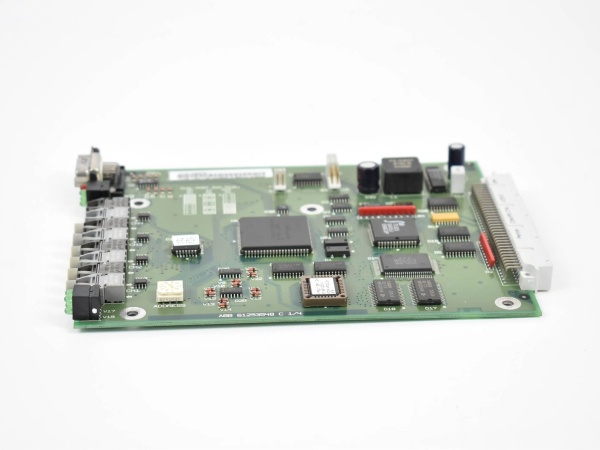

ABB YPQ112B DCF3986771P0001
Customer Value & Operational Benefits
Extended Equipment Lifespan
The YPQ112B adapter allows users to retrofit legacy ABB drive systems (e.g., ACS600) with modern control features, avoiding the high cost of replacing entire drive systems. For example, a manufacturing plant using the adapter extended the life of its ACS600 drives by 5 years, saving $50,000 in replacement costs.
Reduced Retrofit Complexity
Since the adapter is designed for ABB systems, it integrates seamlessly with existing drive controllers and software (e.g., APC program). A chemical plant using the adapter completed a retrofit in 2 weeks, compared to 6 weeks for a full drive replacement.
Improved System Reliability
The adapter’s robust design (tested to ABB’s industrial standards) ensures reliable communication between the drive controller and external devices. A power plant using the adapter reported a 30% reduction in drive system downtime due to communication errors.
Field Engineer’s Notes (From the Trenches)
When installing the YPQ112B adapter, always verify the APC program configuration—the adapter will not function if it’s not properly configured in the drive’s control software. I once saw a site where a technician forgot to update the APC program, resulting in a 3-day delay in system startup. Using ABB’s DriveWindow software to reconfigure the program fixed the issue immediately.Another gotcha: use shielded cables for communication lines—unshielded cables can pick up electromagnetic interference (EMI) from nearby power lines, leading to signal distortion. A refinery using the adapter switched to shielded cables and eliminated 90% of communication errors.If the adapter’s “FAULT” LED illuminates, check the power supply—the adapter requires a stable 24V DC supply from the drive controller. I’ve fixed countless “fault” errors by replacing a faulty power supply that was outputting 18V DC.
Real-World Applications
-
Legacy Drive Retrofit in Chemical Plants:A chemical plant used the YPQ112B adapter to retrofit its ABB ACS600 multi-drive system, adding modern PLC control. The adapter enabled communication between the ACS600 drives and the plant’s Siemens PLC, allowing for real-time speed control and status monitoring.
-
Nuclear Power Plant Drive Upgrade:
A nuclear power plant used the adapter to upgrade its auxiliary drive systems (e.g., pump motors) from ABB ACS600 to modern drives. The adapter ensured seamless integration with the plant’s existing control system, minimizing downtime during the upgrade.
-

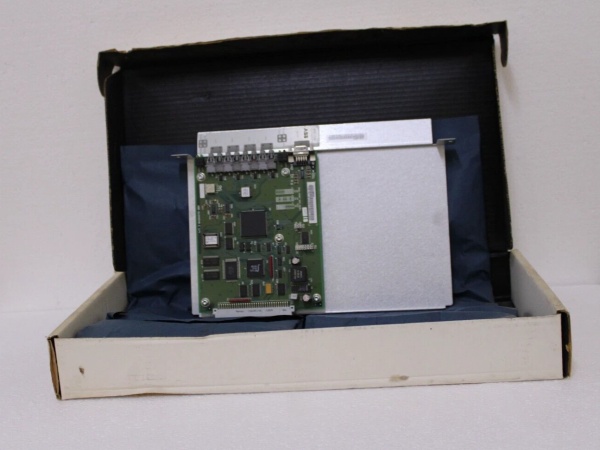

ABB YPQ112B DCF3986771P0001
-
High-Frequency Troubleshooting FAQ
Q: What does the “FAULT” LED indicate on the ABB YPQ112B DCF3986771P0001?
A: The red “FAULT” LED indicates a critical error, such as:
-
Power Supply Failure: The 24V DC supply from the drive controller is missing or unstable (check with a multimeter);
-
APC Program Misconfiguration: The adapter is not properly configured in the ABB APC program (use DriveWindow to verify);
-
Communication Error: The adapter is not receiving signals from the drive controller (check the communication cables).
Q: Can the YPQ112B adapter be used with non-ABB drive systems?
A: No, the adapter is designed exclusively for ABB ACS600 series multi-drive systems. Non-ABB drives may not provide the correct signals or power supply, leading to adapter failure.
Q: How do I configure the YPQ112B adapter in the APC program?
A: Follow these steps:
-
Open DriveWindow: Launch ABB’s DriveWindow software and connect to the ACS600 drive;
-
Select the Adapter: Navigate to the “Interface Adapter” section and select the YPQ112B;
-
Configure Parameters: Set the communication protocol (e.g., Modbus RTU) and address (e.g., 1);
-
Save Configuration: Click “Save” to apply the changes to the drive’s memory.
Q: Why is the YPQ112B adapter not communicating with the PLC?
A: Check three things first:
-
Communication Cable: Ensure the cable is connected to the correct port (e.g., Port 1 on the adapter);
-
Protocol Compatibility: Verify the PLC is using the same protocol as the adapter (e.g., Modbus RTU);
-
Address Setting: Ensure the adapter’s address matches the PLC’s configuration (e.g., 1).
