Description
YT204001-JN: Product Overview
This module operates within the signal acquisition layer of ABB 800xA distributed control systems (DCS), positioned between field devices (e.g., limit switches, emergency stop buttons, valve position indicators) and the DCS controller. Its role is to convert discrete electrical signals (on/off, open/closed) from field sensors into digital data interpretable by the control system, enabling status monitoring and logic-based decision-making. In a typical architecture, it mounts on an S800 I/O carrier, drawing power from the DCS backplane and synchronizing data via the control network.
Core functionality includes processing 16 independent digital input channels with 24V DC signaling, performing signal conditioning (debounce filtering, voltage thresholding) to reject noise, and providing galvanic isolation (2.5kV RMS) between field circuits and the DCS backplane to prevent ground loop interference. It supports channel-level diagnostics (e.g., wire break, short-circuit, overvoltage) and integrates with ABB’s System 800xA Alarm Manager for real-time fault reporting.
The module belongs to the ABB 800xA DCS I/O Series, a platform designed for modular I/O expansion and mixed-signal integration. Benefits of this series include hot-swappable components for minimal downtime, compatibility with ABB’s Engineering Base software for configuration, and adherence to IEC 61131-2 standards for signal consistency. This series streamlines system upgrades by allowing incremental addition of I/O modules without reconfiguring the entire DCS.

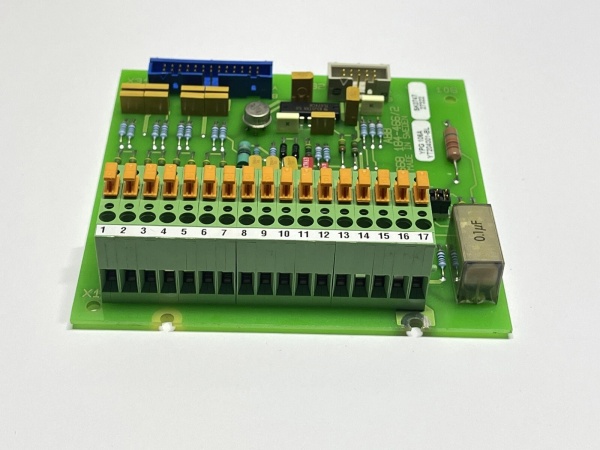

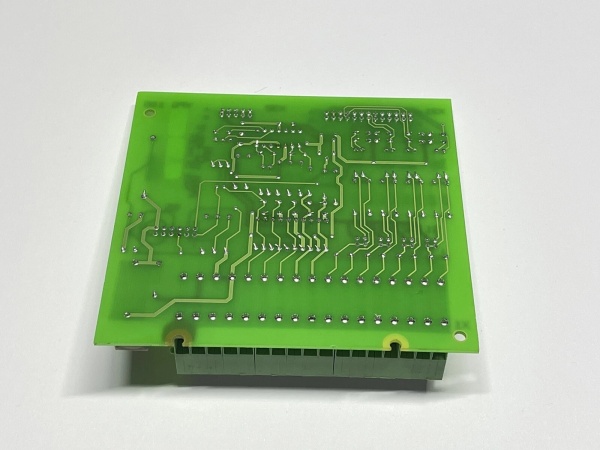

ABB YT204001-JN
YT204001-JN: Technical Specifications
-
Model Number: YT204001-JN
-
Manufacturer: ABB Ltd.
-
Product Type: Digital Input Module
-
Number of Channels: 16 (isolated digital inputs)
-
Input Voltage: 24V DC (±10%, reverse polarity protected)
-
Signal Type: Dry contact (electromechanical switch), NPN/PNP transistor
-
Accuracy: ±0.1% of full scale (at 25°C)
-
Isolation Voltage: 2.5kV RMS (channel-to-backplane, channel-to-channel)
-
Input Impedance: 5kΩ (nominal)
-
Operating Temperature: -25°C to +60°C
-
Storage Temperature: -40°C to +85°C
-
Protection Rating: IP20 (enclosure)
-
Dimensions: 110mm (H) x 35mm (W) x 120mm (D)
-
Weight: ~0.35kg
-
Certifications: CE, UL (cULus Listed), RoHS, ATEX Zone 2 (optional)
Core Features & Customer Value
The 16-channel density maximizes I/O capacity on S800 carriers, supporting up to 16 modules per rack (256 total inputs). For engineers, this reduces cabinet space requirements in brownfield expansions, where panel real estate is often constrained. Signal conditioning (debounce filtering) eliminates false triggers from mechanical switch chatter, critical for safety circuits like emergency stops in automotive assembly lines.
Galvanic isolation (2.5kV RMS) protects the DCS backplane from voltage transients generated by inductive loads (e.g., solenoids), minimizing controller damage risk. Channel-level diagnostics (via ABB 800xA System Alarm Manager) pinpoint faults like “input 7 wire break,” reducing mean time to repair (MTTR) for maintenance teams. The hot-swappable design permits module replacement during system operation, essential for 24/7 facilities like power plants where downtime costs are high.
Reverse polarity protection prevents damage from incorrect field wiring, a common issue during retrofits. Compatibility with ABB’s legacy DCS platforms (e.g., INFI-90) via gateway modules ensures phased migration without full system replacement, preserving capital investment in existing infrastructure.

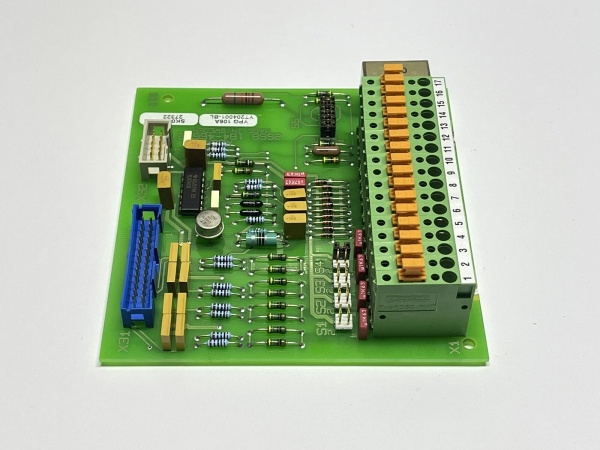

ABB YT204001-JN
Typical Applications
In a steel mill, the module monitors 16 limit switches on a hot strip mill entry guide, detecting roller misalignment to trigger emergency shutdowns. The isolation feature protects the DCS from transients induced by nearby motor drives.
At a municipal water treatment plant, it acquires status signals from 16 valve position indicators (open/closed) on a filtration skid, ensuring sequential valve operation for backwashing cycles. The -25°C cold-start capability ensures operation in outdoor instrument shelters.
In an oil refinery, the module reads 16 emergency stop button states in a catalytic cracker control room, with channel diagnostics alerting operators to faulty switches before they compromise safety. The IP20 rating allows installation in non-hazardous control cabinets.
