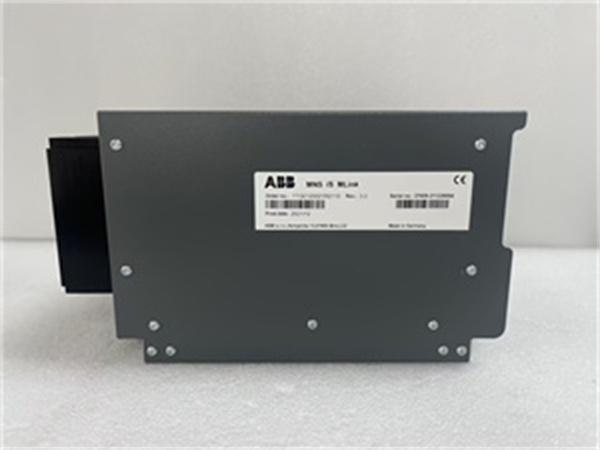

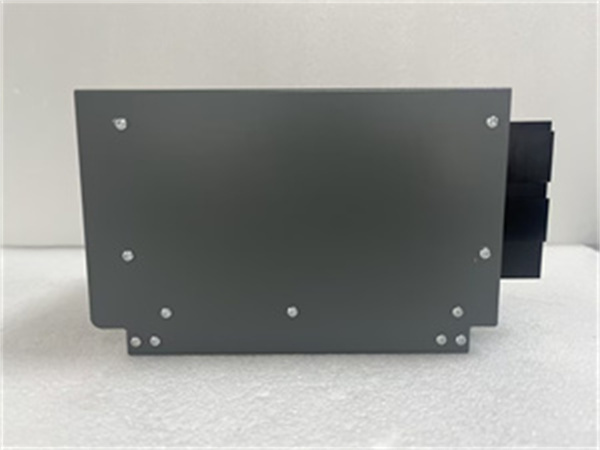

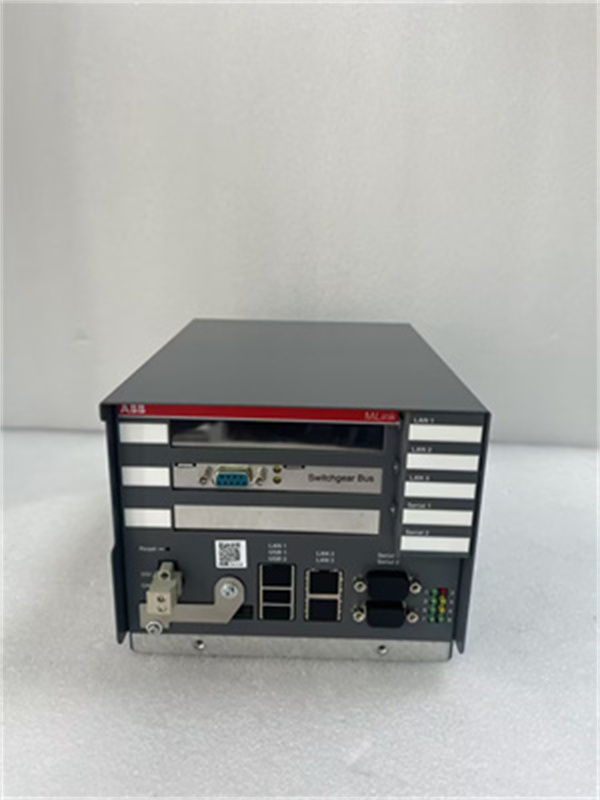

ABB 1TGE120021R0110

Exceptional Reliability and Durability: The 1TGE120021R0110 features a rugged design that protects against dust, moisture, and vibration. It achieves an average mean time between failures (MTBF) of 150,000 hours, demonstrating its long-term reliability in harsh industrial settings.
Flexible I/O Configuration: The module offers 16 digital inputs and 8 analog outputs, with a 12-bit resolution for analog signals. This flexibility allows users to customize input/output channels according to specific application needs.
High-Speed Data Processing: The 1TGE120021R0110 supports high-speed data processing with minimal latency, critical for real-time control and monitoring applications.
Hot-Swapping Capability: The module supports hot-swapping, allowing for easy replacement without system shutdown, which significantly reduces downtime and maintenance costs.
Advanced Diagnostic Tools: Built-in diagnostic tools provide real-time status updates, helping users proactively identify and resolve issues.
Get a Quote
Manufacturer:
Part number: ABB 1TGE120021R0110
Our extensive catalogue, including : ABB 1TGE120021R0110 , is available now for dispatch to the worldwide.
  • Full 12-month warranty
  • Available for dispatch immediately
  • We deliver worldwide

Description

Detailed Parameter Table

Parameter Name Parameter Value
Product Model 1TGE120021R0110
Manufacturer ABB
Product Category Industrial Control Module
Input Voltage 24V DC (±15%)
Power Consumption ≤10W
Communication Protocols Modbus RTU, Profibus DP, Ethernet IP
I/O Channels 16 digital inputs, 8 analog outputs
Data Resolution 12-bit for analog signals
Operating Temperature Range -20°C to +60°C
Storage Temperature Range -40°C to +85°C
Humidity Range 5% to 95% non-condensing
Dimensions (W×H×D) 150 mm × 100 mm × 50 mm
Weight 0.45 kg
Certifications CE, RoHS, IEC 61131-2 compliant
1TGE120021R0110

1TGE120021R0110

Product Introduction

The ABB 1TGE120021R0110 is a high-performance industrial control module designed for complex automation systems. This module is engineered to meet the demanding requirements of modern industrial environments, ensuring stable performance and seamless integration with existing control architectures.

Core Advantages and Technical Highlights

Exceptional Reliability and Durability: The 1TGE120021R0110 features a rugged design that protects against dust, moisture, and vibration. It achieves an average mean time between failures (MTBF) of 150,000 hours, demonstrating its long-term reliability in harsh industrial settings.
Flexible I/O Configuration: The module offers 16 digital inputs and 8 analog outputs, with a 12-bit resolution for analog signals. This flexibility allows users to customize input/output channels according to specific application needs.
High-Speed Data Processing: The 1TGE120021R0110 supports high-speed data processing with minimal latency, critical for real-time control and monitoring applications.
Hot-Swapping Capability: The module supports hot-swapping, allowing for easy replacement without system shutdown, which significantly reduces downtime and maintenance costs.
Advanced Diagnostic Tools: Built-in diagnostic tools provide real-time status updates, helping users proactively identify and resolve issues.

1TGE120021R0110

1TGE120021R0110

Typical Application Scenarios

The ABB 1TGE120021R0110 is widely used in various industrial sectors, including:
  • Automated Production Lines: For controlling conveyor belt speeds, robotic arm positioning, and achieving high-precision synchronous production.
  • Robot Control: Outputting pulse signals to drive robot joint motors and complete complex trajectory planning.
  • Process Control Systems: Communicating with DCS to monitor the operating status of equipment such as valves and pumps.
  • Testing and Measuring Equipment: Generating precise pulse signals for calibrating sensors or performing periodic tests.

Related Model Recommendations

  • 1TGE120021R0110C: A variant with conformal coating, suitable for harsher environments.
  • 1TGE120020R0405: A similar module without the conformal coating, suitable for less harsh environments.

Installation, Commissioning, and Maintenance Instructions

Installation Preparation: Ensure the installation environment is clean and free of interference. Prepare the necessary tools and follow the installation manual carefully.
Maintenance Suggestions: Regularly inspect the module for physical damage, monitor output voltages using a multimeter, and check for abnormal heat generation or noises. Clean the module’s surface periodically to prevent dust accumulation, which can affect heat dissipation.

Service and Guarantee Commitment

The ABB 1TGE120021R0110 comes with a comprehensive warranty, ensuring customer satisfaction and peace of mind. ABB provides technical support and service to assist with installation, troubleshooting, and maintenance.
